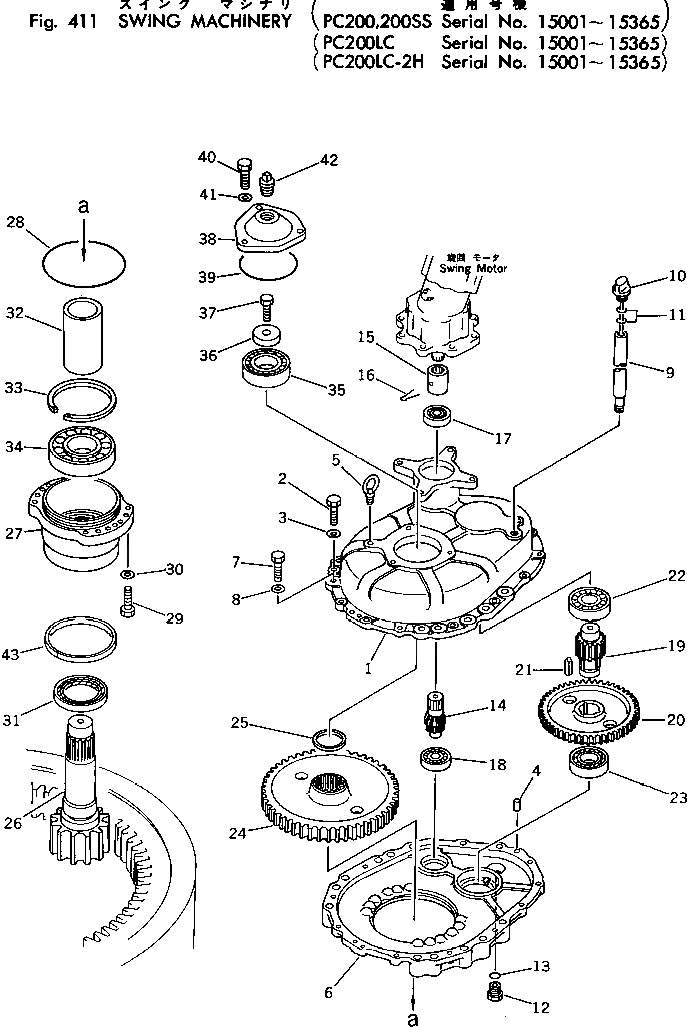

Запчасти Komatsu PC200LC-2 МЕХАНИЗМ ПОВОРОТА(№-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

1

205-26-62210

CASE

2

01010-51645

BOLT

3

01643-31645

WASHER

4

04020-01638

PIN

5

04530-11628

BOLT

6

205-26-62221

CASE

7

01011-62010

BOLT

8

01643-32060

WASHER

9

205-26-61110

FILLER

10

205-26-61120

GAUGE

11

07000-03022

O-RING

12

07044-12412

PLUG

13

07002-02434

O-RING

14

205-26-62320

SHAFT

15

205-26-62160

COUPLING

16

04050-05055

PIN

17

12R-09-15110

BEARING

18

06040-06307

BEARING

19

205-26-51250

SHAFT

20

205-26-51280

GEAR

21

205-26-51260

KEY

22

06044-00311

BEARING

23

06040-06311

BEARING

24

205-26-11421

GEAR

25

205-26-51210

SPACER

26

205-26-62252

SHAFT

27

205-26-62231

CAGE

28

07000-05230

O-RING

29

01010-51455

BOLT

30

01643-31445

WASHER

31

07012-00120

SEAL

32

205-26-51192

COLLAR

33

04071-00190

RING

34

205-26-51220

BEARING

35

145-27-41221

BEARING

36

205-26-62290

HOLDER

37

01010-52460

BOLT

38

205-26-11441

COVER

39

07000-05170

O-RING

40

01010-51440

BOLT

41

01643-31445

WASHER

42

07042-10108

PLUG

43

205-26-62171

SEAL
