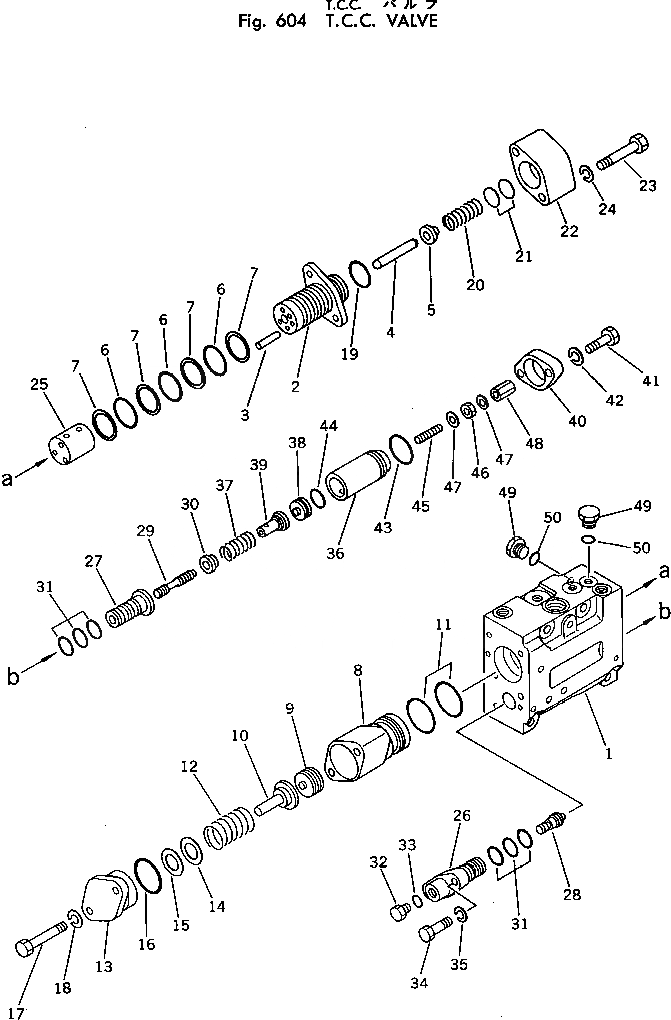

Запчасти Komatsu PC200LC-2 T.C.C.КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-46-20603

HYDRAULIC PUMP ASS'Y

|$1

706-46-20602

HYDRAULIC PUMP ASS'Y

|$2

706-46-51803

TCC VALVE ASS'Y

|$3

706-46-51801

TCC VALVE ASS'Y

1

BODY ASS'Y

2

FLANGE

3

PISTON

4

PIN

5

RETAINER

6

O-RING

7

RING

8

FLANGE

9

PISTON

10

RETAINER

11

O-RING

12

SPRING

13

COVER

14

SHIM

15

SHIM

16

O-RING

17

BOLT

18

WASHER

19

O-RING

20

SPRING

21

SHIM

21

SHIM

22

COVER

23

BOLT

24

WASHER

25

SPOOL

26

COVER

26

COVER

27

SLEEVE

28

PISTON

28

PISTON

29

SPOOL

30

RETAINER

31

O-RING

32

07040-11007

PLUG

33

07002-01023

O-RING

34

BOLT

35

WASHER

36

SLEEVE

37

SPRING

38

STOPPER

39

RETAINER

40

PLATE

41

BOLT

42

WASHER

43

O-RING

44

O-RING

45

SCREW

46

NUT

47

WASHER

48

NUT

49

07040-11007

PLUG

50

07002-01023

O-RING
