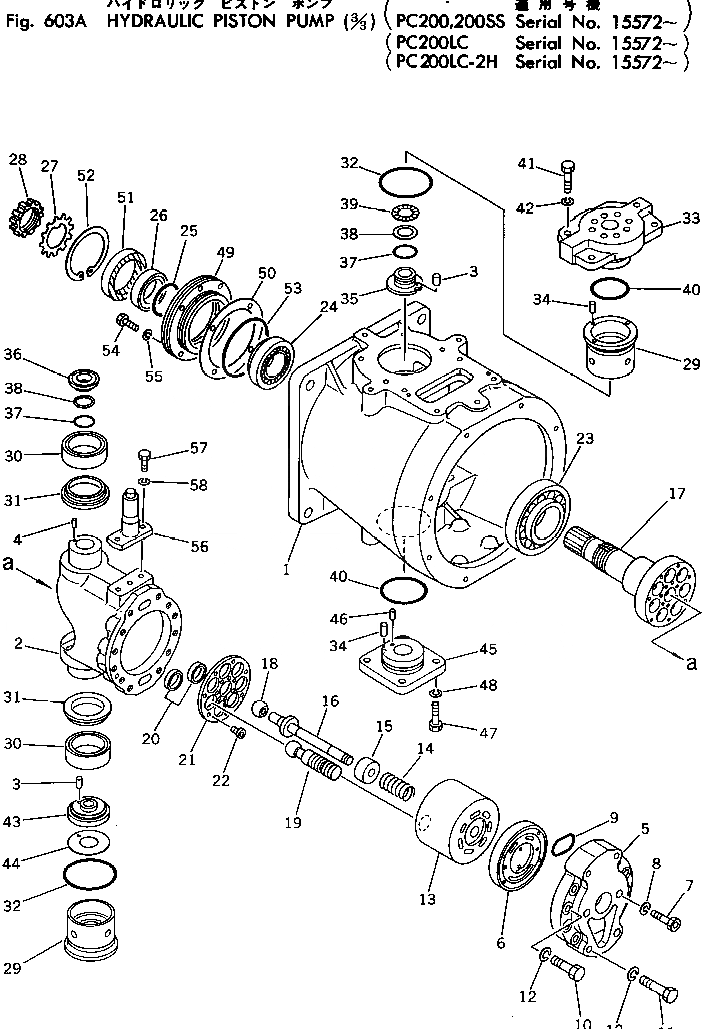

Запчасти Komatsu PC200LC-2 ГИДРАВЛ ПОРШЕНЬ НАСОС (/)(№7-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
706-46-20603
HYDRAULIC PUMP ASS'Y
|$1
706-46-20703
HYDRAULIC PUMP ASS'Y
|$2
706-46-42001
PUMP SUB ASS'Y
1
CASE
2
CASE
3
PIN
4
PIN
5
COVER
6
PLATE
7
BOLT
8
WASHER
9
O-RING
10
BOLT
11
BOLT
12
WASHER
13
BLOCK
14
SPRING
15
RING
16
SHAFT
17
SHAFT
18
BALL
19
PISTON SUB ASS'Y
20
HOLDER
21
RETAINER
22
SCREW
23
BEARING
24
BEARING
25
O-RING
26
RING
27
WASHER
28
NUT
29
SLEEVE
30
BEARING
31
SPACER
32
O-RING
33
BOSS
34
PIN
35
RING
36
RING
37
O-RING
38
RING
39
WASHER
40
O-RING
41
BOLT
42
WASHER
43
RING
44
WASHER
45
BOSS
46
PIN
47
BOLT
48
WASHER
49
BOSS
50
GASKET
51
SEAL
52
RING
53
O-RING
54
BOLT
55
WASHER
56
PIN
57
BOLT
58
WASHER
|$61
706-98-00780
SERVICE KIT,(EXCEPT JAPAN)
|$62
SHAFT
|$63
BEARING
|$64
PISTON SUB ASS'Y
|$65
RETAINER
58
HOLDER
|$67
BALL
|$68
SHAFT
|$69
RING
|$70
SPRING
|$71
BLOCK
|$72
SCREW
|$73
SEAL
|$74
GASKET
|$75
BOLT
|$76
WASHER
|$77
WASHER
|$78
O-RING
|$79
O-RING
|$80
O-RING
|$81
O-RING
|$82
O-RING
|$83
RING
|$84
O-RING
|$85
O-RING
|$86
O-RING
|$87
GASKET
|$88
O-RING
|$89
O-RING
|$90
O-RING
|$91
O-RING
|$92
O-RING
|$93
O-RING
|$94
O-RING
|$95
O-RING
|$96
O-RING
|$97
706-98-05040
SERVICE KIT,(EXCEPT JAPAN)
|$98
COVER ASS'Y
|$99
PLATE
|$100
BOLT
|$101
WASHER
Выбрано товаров: 102
