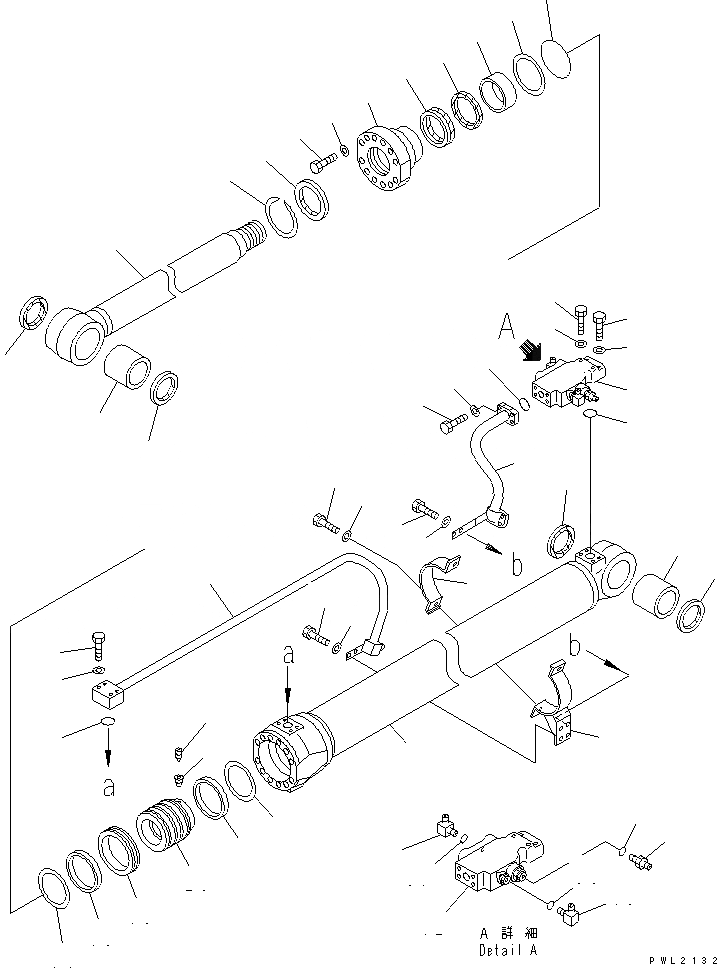

Запчасти Komatsu PC200EN-6K ЦИЛИНДР СТРЕЛЫ(ПРАВ.) (С КЛАПАН БЕЗОПАСНОСТИ)(№K-K) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

21P-63-K3201

CYLINDER ASS'Y,BOOM

|1

21P-63-K3110

CYLINDER ASS'Y

1

21P-63-K3120

SHELL ASS'Y

2

21P-63-K3130

ROD ASS'Y,PISTON

3

707-76-80230

BUSHING

4

707-76-70330

BUSHING

5

07179-13099

RING,SNAP

6

707-56-85510

SEAL,DUST

7

01010-81670

BOLT

8

01643-51645

WASHER

9

707-51-85030

PACKING,ROD

10

707-51-85630

RING,BUFFER

11

07000-15115

O-RING

12

07001-05115

RING,BACK-UP

13

707-52-90600

BUSHING

14

707-44-12911

RING

15

707-39-12110

RING,WEAR

16

707-44-12180

RING,PISTON

17

07145-00080

SEAL,DUST

18

07145-00070

SEAL,DUST

19

206-63-K1460

HEAD,CYLINDER

20

20G-63-K1470

PISTON

21

20G-63-K1480

SCREW

22

20G-63-K1490

PLUG

23

21P-63-K3220

BRACKET

24

707-88-99210

BAND

25

01010-51035

BOLT

26

01643-51032

WASHER

27

01010-51030

BOLT

28

01643-51032

WASHER

29

21P-63-K3160

TUBE

30

07000-13025

O-RING

31

01010-50860

BOLT

32

01643-50823

WASHER

33

20G-62-K7020

TUBE

34

07000-13030

O-RING

35

07372-21035

BOLT

36

01643-51032

WASHER

37

07002-02034

O-RING

38

07235-10315

ELBOW

39

07002-01423

O-RING

40

07235-10210

ELBOW

41

07000-13030

O-RING

42

702-21-08021

PILOT VALVE ASS'Y,(SEE FIG.Y1665-01A0)

43

07372-21060

BOLT

44

01643-51032

WASHER

45

07372-21055

BOLT

46

01643-51032

WASHER

47

07002-01423

O-RING

48

20E-62-K5181

NIPPLE
