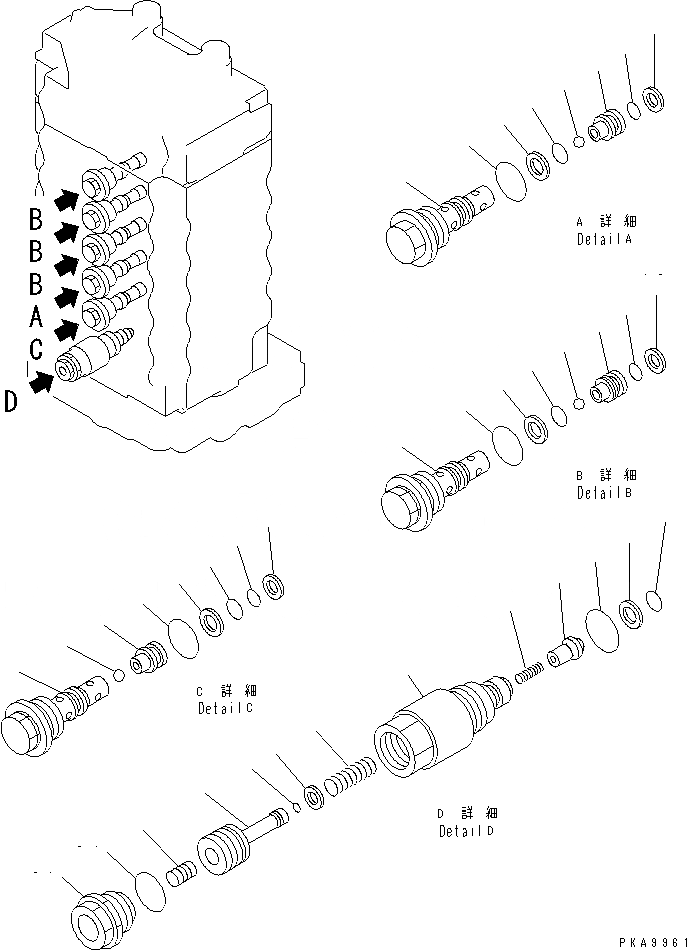

Запчасти Komatsu PC200EL-6K ОСНОВН. КЛАПАН (/) (-АКТУАТОР)(№K-K999) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-37-14101

VALVE ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-10A0.

|1

723-36-00601

BODY SUB ASS'Y

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-01A0 TO Y1662-03A0.

|1

723-30-66100

VALVE ASS'Y

1

PLUG

2

SEAT

3

BALL

4

07002-12434

O-RING

5

07000-12012

O-RING

6

07001-02012

RING,BACK-UP

7

07000-12010

O-RING

8

07001-02010

RING

|9

723-30-66200

VALVE ASS'Y

9

PLUG

10

SEAT

11

BALL

12

07002-12434

O-RING

13

07000-12012

O-RING

14

07001-02012

RING,BACK-UP

15

07000-12010

O-RING

16

07001-02010

RING

|17

723-30-66400

VALVE ASS'Y

17

PLUG

18

SEAT

19

BALL

20

07002-12434

O-RING

21

07000-12012

O-RING

22

07001-02012

RING,BACK-UP

23

07000-12010

O-RING

24

07001-02010

RING

|25

723-30-60101

VALVE ASS'Y

25

723-30-61110

SLEEVE

26

723-40-61120

VALVE

27

723-40-61131

PISTON

28

723-40-61140

PISTON

29

723-40-61170

SPRING

30

723-40-61160

SPRING

31

723-40-61150

PLUG

32

723-40-61180

SEAL

33

07000-01004

O-RING

34

07002-12434

O-RING

35

709-25-11390

O-RING

36

07000-12012

O-RING

37

07001-02012

RING,BACK-UP
