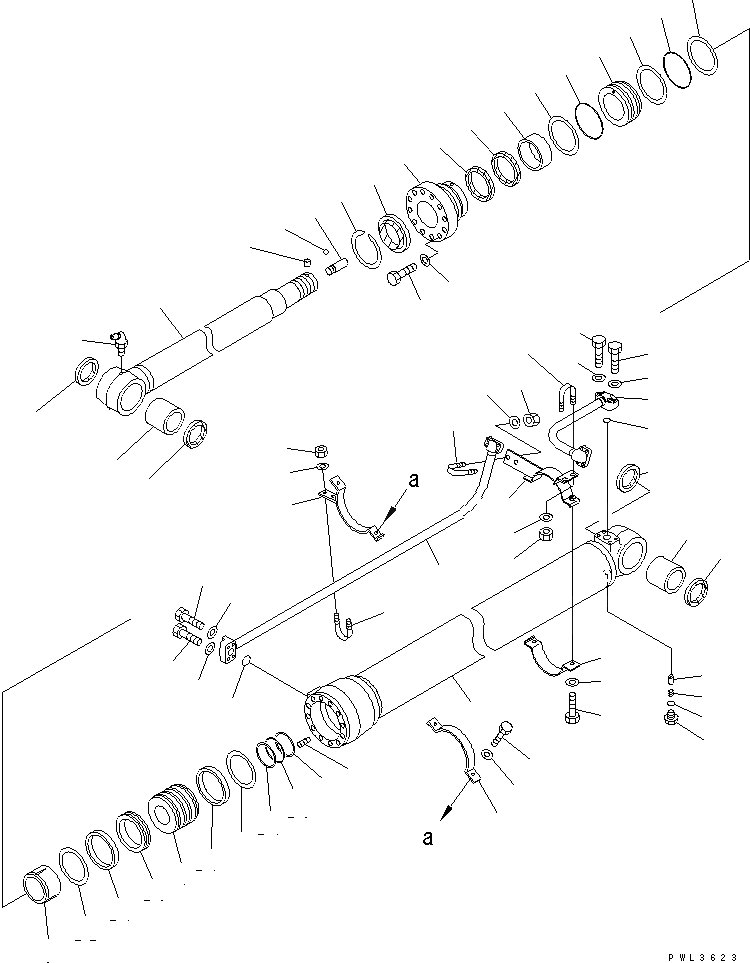

Запчасти Komatsu PC200EL-6K ЦИЛИНДР РУКОЯТИ(ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ)(№K9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

21P-63-K2302

ARM CYLINDER ASS'Y

|$$2

====================

|1

21P-63-03320

CYLINDER ASS'Y

1

21P-63-62340

CYLINDER

2

21P-63-62320

ROD

3

707-27-13961

HEAD

4

707-36-13731

PISTON

5

707-71-61040

PLUNGER

6

01310-01216

SCREW

7

707-71-60230

PLUNGER

8

707-71-91270

CAP

9

04260-00635

BALL

10

707-71-32770

COLLAR

11

01010-61875

BOLT

12

707-41-11840

WASHER

13

707-56-95510

SEAL

14

07179-13109

RING

15

707-51-95030

PACKING

16

707-51-95630

RING

17

07000-15125

O-RING

18

707-35-91370

RING

19

707-52-90720

BUSHING

20

707-44-13280

RING

21

707-39-13510

RING

22

707-44-13920

RING

23

07000-15085

O-RING

24

707-35-90960

RING

25

707-76-80230

BUSHING

26

07145-00080

SEAL

27

07020-00000

FITTING

28

707-83-13010

VALVE

29

07750-01628

SPRING

30

07002-12034

O-RING

31

707-87-14070

PLUG

32

21P-62-K3220

TUBE

33

01010-81060

BOLT

34

01643-51032

WASHER

35

07000-13030

O-RING

36

21P-62-K3211

TUBE

37

07000-13030

O-RING

38

07372-21045

BOLT

39

07372-21060

BOLT

40

01643-51032

WASHER

41

21P-63-K2310

BRACKET

42

707-88-95320

BAND

43

01010-81035

BOLT

44

01643-51032

WASHER

45

07283-22738

CLIP

46

01599-01011

NUT

47

01643-31032

WASHER

48

21P-63-K2320

BRACKET

49

21P-63-K2330

BAND

50

01010-81035

BOLT

51

01643-51032

WASHER

52

07283-22738

CLIP

53

01599-01011

NUT

54

01643-31032

WASHER

|$$58

====================
