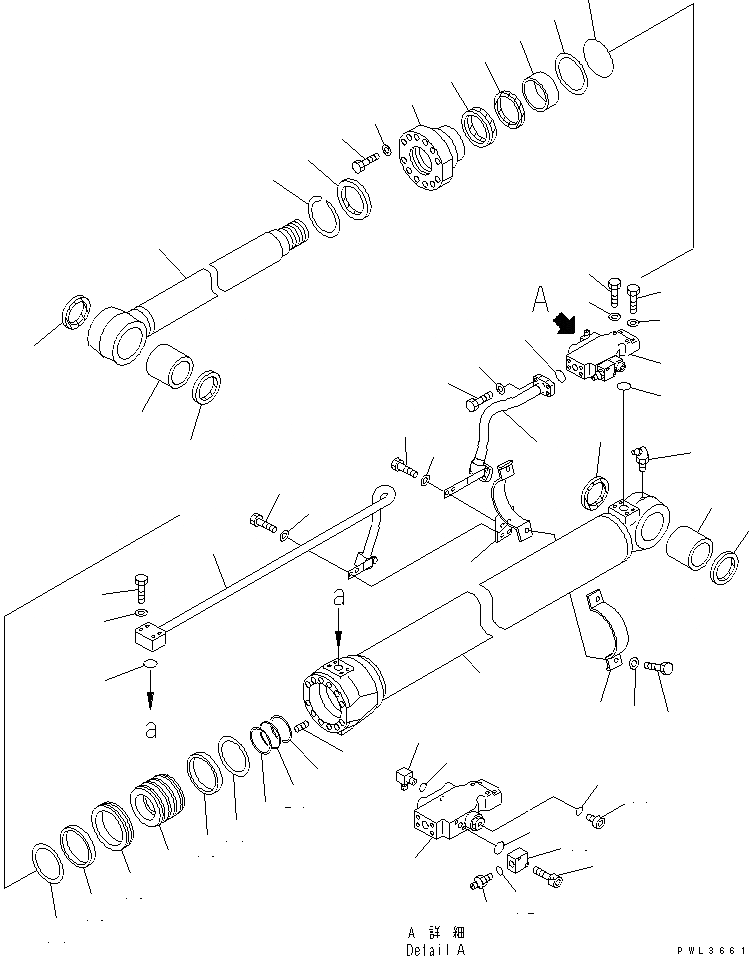

Запчасти Komatsu PC200EL-6K ЦИЛИНДР СТРЕЛЫ(ЛЕВ.) (С КЛАПАН БЕЗОПАСНОСТИ)(№K-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

21P-63-K3102

CYLINDER ASS'Y

G1

21P-63-K3101

CYLINDER ASS'Y

|$$3

====================

|1

21P-63-03400

CYLINDER ASS'Y

|1

21P-63-03300

CYLINDER ASS'Y

1

21P-63-52540

SHELL ASS'Y

2

21P-63-52520

ROD ASS'Y,PISTON

3

707-76-80230

BUSHING

4

707-76-70610

BUSHING

|4

707-76-70330

BUSHING

5

07179-13099

RING,SNAP

6

707-56-85510

SEAL,DUST

7

01010-81670

BOLT

8

01643-51645

WASHER

9

707-51-85030

PACKING,ROD

10

707-51-85630

RING,BUFFER

11

07000-15110

O-RING

12

707-35-91220

RING,BACK-UP

13

707-52-90610

BUSHING

14

707-44-12911

RING

15

707-39-12110

RING,WEAR

16

707-44-12180

RING,PISTON

17

07145-00080

SEAL,DUST

18

07145-00070

SEAL,DUST

19

707-27-12420

HEAD,CYLINDER

20

707-36-12071

PISTON

21

07000-15075

O-RING

22

707-35-90930

RING,BACK-UP

23

01310-01216

SCREW

24

07020-00675

FITTING,GREASE

25

21P-63-K3220

BRACKET

26

707-88-99210

BAND

27

01010-81035

BOLT

28

01643-51032

WASHER

29

01010-81030

BOLT

30

01643-51032

WASHER

31

21P-63-K3151

TUBE

32

07000-13025

O-RING

33

01010-80850

BOLT

34

01643-50823

WASHER

35

20G-62-K7011

TUBE

36

07000-13030

O-RING

37

07372-21035

BOLT

38

01643-51032

WASHER

39

07000-02021

O-RING

40

20G-60-K3210

FLANGE

41

01252-40635

BOLT

42

07002-01423

O-RING

43

07230-20210

UNION

44

07002-02034

O-RING

45

07235-10315

ELBOW

46

07002-01423

O-RING

47

07040-11409

PLUG

48

07000-13030

O-RING

49

702-21-08021

PILOT VALVE ASS'Y,(SEE FIG.Y1665-01A0)

50

07372-21060

BOLT

51

01643-51032

WASHER

52

07372-21055

BOLT

53

01643-51032

WASHER

|$$60

====================
