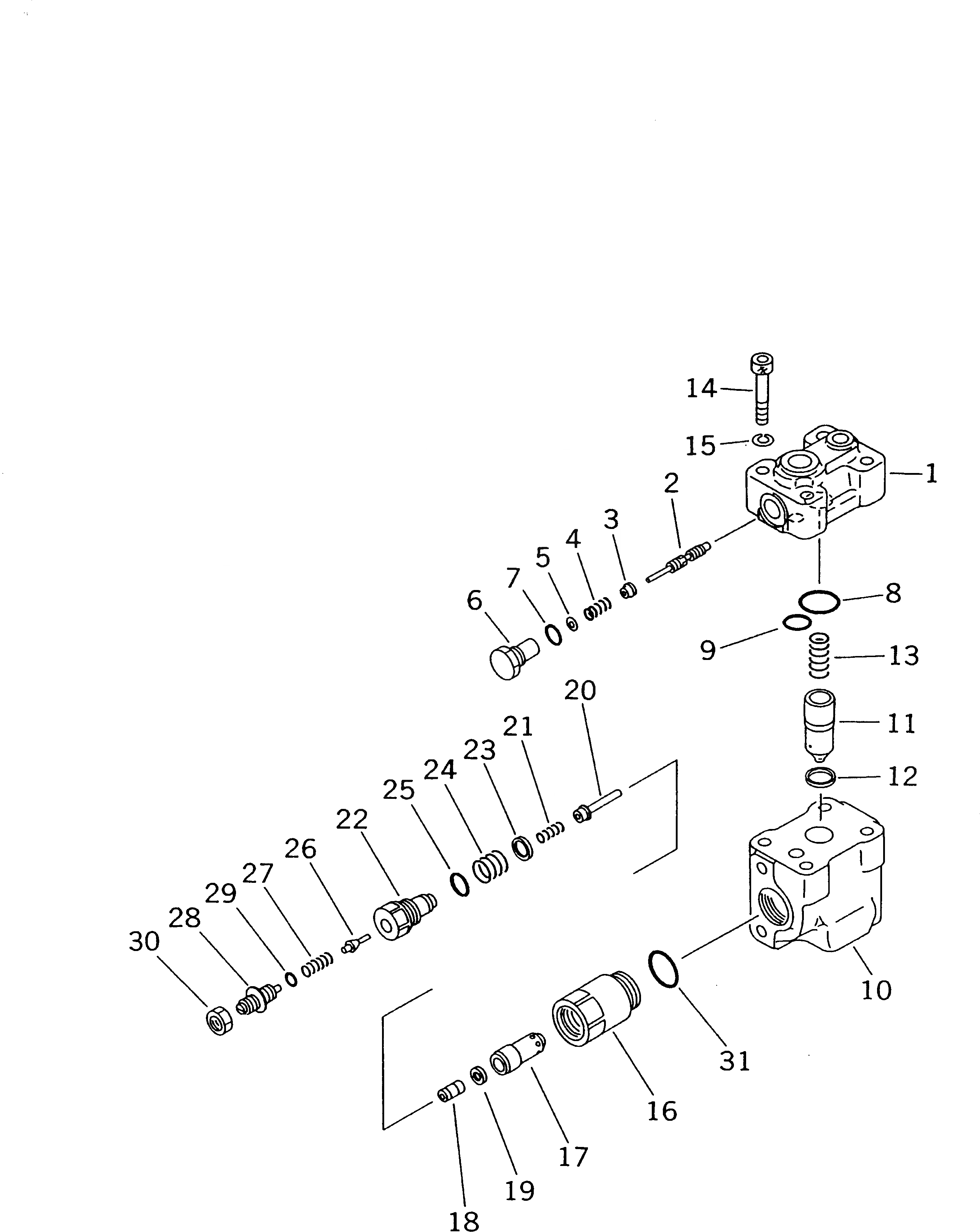

Запчасти Komatsu PC200CA-6 СТОПОРН. КЛАПАН(№C-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

702-21-04220

LOCK VALVE ASS'Y

1

BODY

2

SPOOL

3

702-21-31350

SEAT

4

702-21-31231

SPRING

5

702-21-31360

SPACER

6

702-21-31241

PLUG

7

07002-01823

O-RING

8

07000-13030

O-RING

9

07000-02020

O-RING

10

BODY

11

702-21-35141

VALVE,CHECK

12

702-21-35130

SEAL

13

702-21-35120

SPRING

14

706-73-40330

BOLT

15

01602-21030

WASHER

16

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

16

709-70-71112

SLEEVE

17

SLEEVE

18

POPPET

19

SEAL

20

PISTON

21

SPRING

22

PLUG

23

SEAL

24

SPRING

25

07002-02434

O-RING

26

POPPET

27

SPRING

28

SCREW

29

O-RING

30

NUT

31

709-25-11390

O-RING
