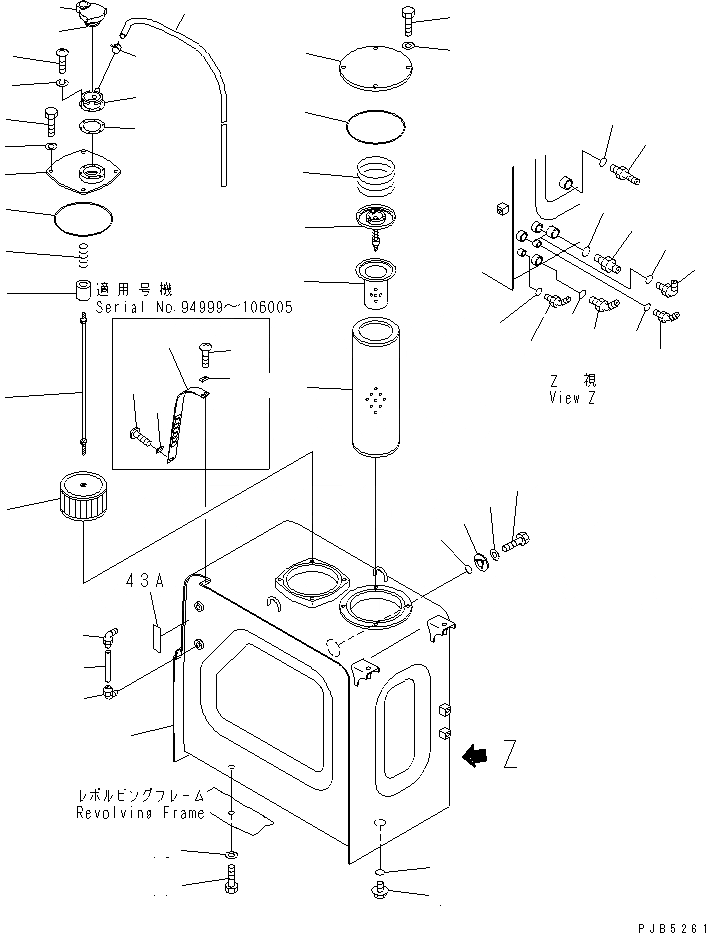

Запчасти Komatsu PC200CA-6 ГИДР. БАК. (БЕЗ ДАТЧИКА) (С СТОПОРН. КЛАПАН)(№C-) ГИДРАВЛИКА

1

20Y-60-00063

HYDRAULIC TANK ASS'Y

1

TANK

2

208-04-19130

ELBOW

3

203-60-31160

TUBE

4

07044-12412

PLUG

5

07002-02434

O-RING

6

07230-20628

UNION

7

07002-02434

O-RING

8

07236-10522

ELBOW

9

07002-02434

O-RING

10

07235-10315

ELBOW

11

07002-02034

O-RING

12

07236-10315

ELBOW

13

07002-02034

O-RING

14

07236-10210

ELBOW

15

07002-01423

O-RING

16

20Y-60-21510

ELEMENT

17

206-60-41221

STRAINER

18

12R-60-11300

VALVE ASS'Y

19

20Y-60-21240

SPRING

20

20Y-60-22530

COVER

21

07000-05180

O-RING

22

01010-51230

BOLT

23

01643-31232

WASHER

24

20Y-60-11650

PLUG

25

7861-91-4220

O-RING

26

01010-80612

BOLT

27

01641-20608

WASHER

28

20Y-60-22550

STRAINER ASS'Y

28

20Y-60-21311

STRAINER

29

207-60-61150

ROD ASS'Y

30

20Y-60-21320

HOLDER

31

12R-60-11230

SPRING

32

203-60-61140

COVER

33

07000-05180

O-RING

34

01010-81225

BOLT

35

01643-31232

WASHER

36

17A-60-11310

CAP ASS'Y

37

20Y-60-21470

ELEMENT

38

20Y-60-21460

NECK

39

205-60-66211

GASKET

40

01220-40516

SCREW

41

01601-20513

WASHER

42

07285-00155

CLIP

43

07270-61512

TUBE

44

20Y-60-22561

COVER

45

01220-40412

SCREW

46

20Y-60-22540

PLATE

47

01010-81635

BOLT

48

01643-31645

WASHER
