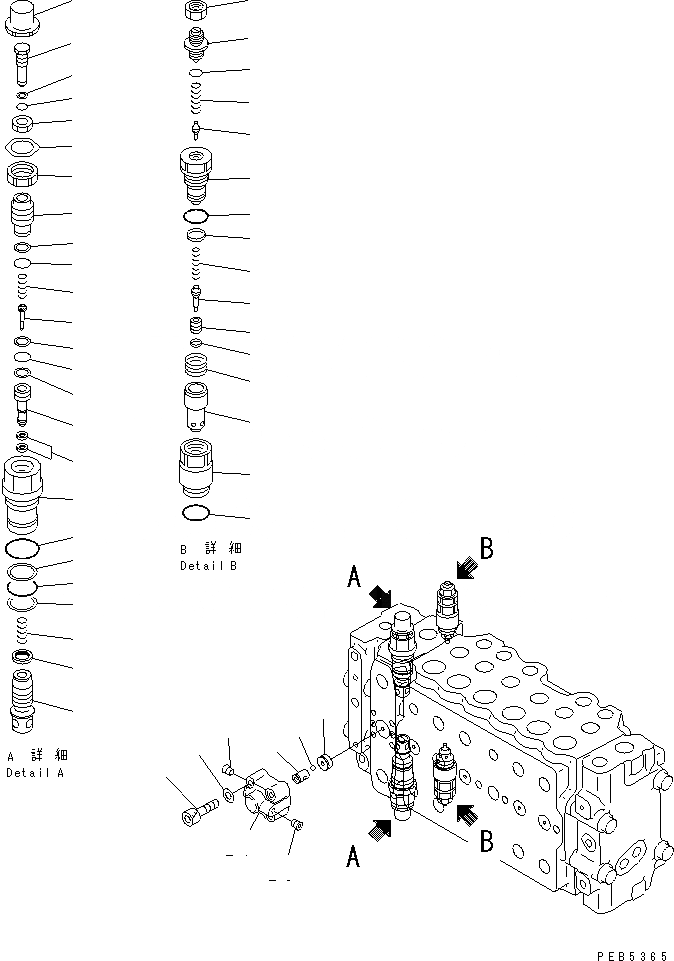

Запчасти Komatsu PC200CA-6 ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№C-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

723-47-13401

CONTROL VALVE

1

723-46-48100

VALVE ASS'Y

1

723-46-48120

SLEEVE

2

723-46-48110

VALVE

3

723-46-48130

SEAT

4

723-46-48140

POPPET

5

723-46-48150

PLUG

6

723-46-48160

SCREW

7

709-20-51150

NUT

8

01583-11207

NUT

9

723-46-48810

SPRING

10

723-46-48820

SPRING

11

723-46-48710

PLATE

12

723-46-48720

CAP

13

723-46-48910

SEAL

14

723-46-41940

SEAL

15

700-93-11320

O-RING

16

723-46-41950

RING

17

07002-13634

O-RING

18

07000-12014

O-RING

19

07001-02014

RING

20

07000-11007

O-RING

21

07001-01007

RING,BACK-UP

22

01252-30845

BOLT

23

01643-50823

WASHER

24

723-40-66300

VALVE ASS'Y

24

CASE

25

SEAT

26

SEAT

27

BALL

28

PLUG

29

709-70-74600

VALVE ASS'Y,SUCTION AND RELIEF

29

SLEEVE

30

SLEEVE

31

POPPET

32

PISTON

33

PLUG

34

POPPET

35

SCREW

36

SPRING

37

SPRING

38

SPRING

39

709-70-71610

SEAL

40

SEAL

41

O-RING

42

O-RING

43

O-RING

44

NUT
