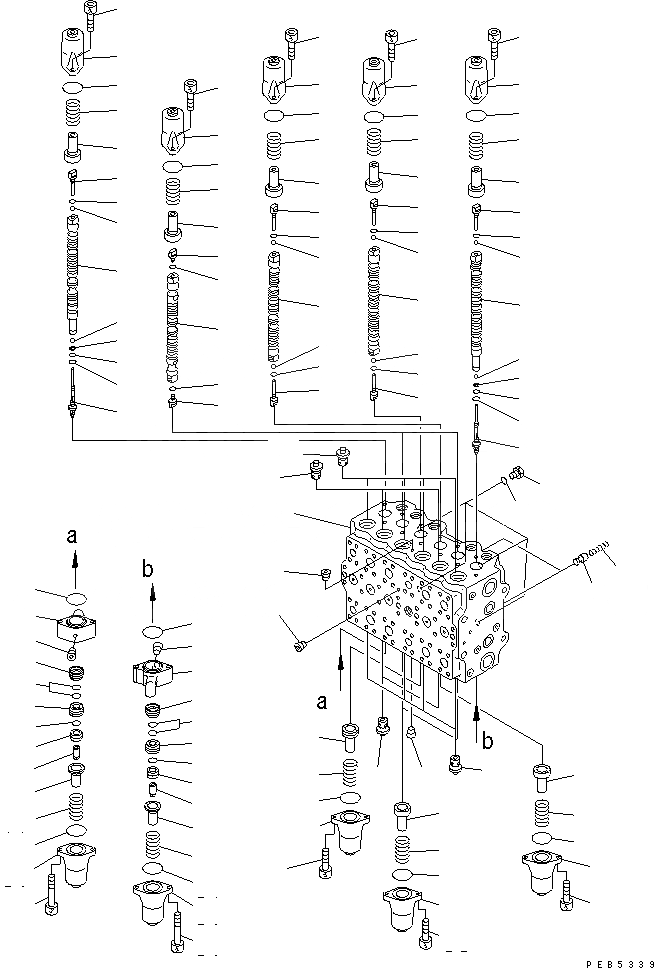

Запчасти Komatsu PC200CA-6 ОСНОВН. КЛАПАН (/)(№C-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

723-46-13401

CONTROL VALVE

1

723-46-00182

BODY SUB ASS'Y

1

BLOCK,VALVE

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL

6

SPOOL

7

PLUG

8

723-46-15140

PLUG

9

07002-10823

O-RING

10

723-46-16171

PLUG

11

07002-11023

O-RING

12

07000-11005

O-RING

13

07001-01005

RING,BACK-UP

14

708-7T-16460

BALL

15

723-46-15120

RETAINER

16

723-46-16160

RETAINER

17

723-46-14110

SPRING

18

723-46-14170

SPRING

19

723-46-14131

SPRING

20

723-46-15110

CASE

21

07430-71380

O-RING

22

01252-60820

BOLT

23

01252-60860

BOLT

24

723-46-16110

CASE

25

723-46-16120

PISTON

26

723-46-16130

PISTON

27

723-46-16140

PISTON

28

723-46-16151

PISTON

29

723-46-16180

SEAL

30

702-16-54490

SCREW

31

723-46-16190

NUT

32

706-86-51180

PLUG

33

723-46-15150

VALVE

34

723-46-14150

SPRING

35

708-8H-11530

PLUG

36

07002-11423

O-RING

37

723-46-41110

VALVE

38

723-46-41120

VALVE
