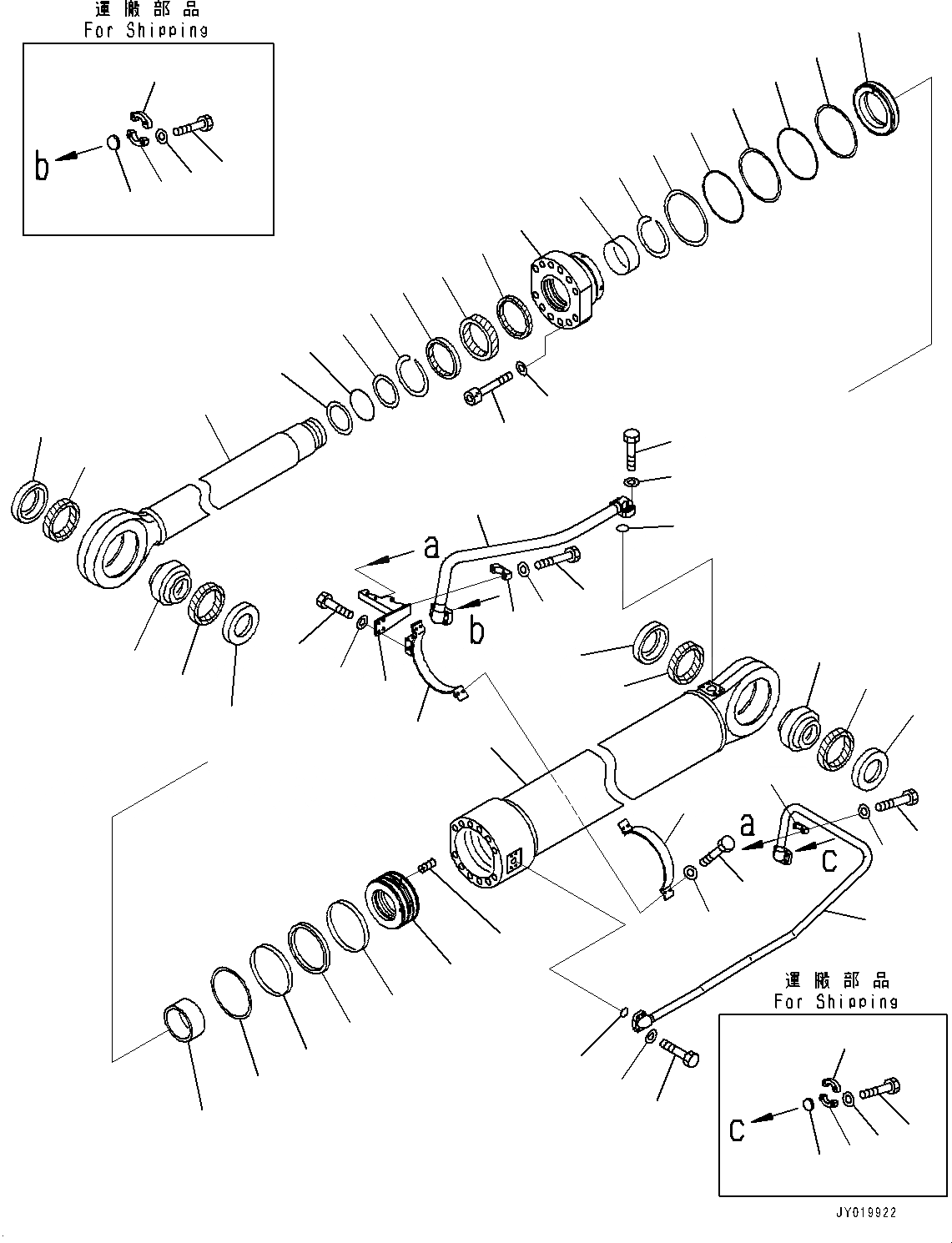

Запчасти Komatsu PC2000-8 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№9-) ЦИЛИНДР СТРЕЛЫ
№
Артикул
Название
Примечание
Количество
|$0
707-01-0K751
Cylinder Assembly
|$1
707-01-0K750
Cylinder Assembly
1
707-13-30130
Cylinder
2
707-58-20270
Rod
3
707-46-18050
Bushing
4
707-46-18020
Bushing
5
707-77-18010
Seal, Dust, (Kit : K03, K04)
6
707-46-18050
Bushing
7
707-46-18020
Bushing
8
707-77-18010
Seal, Dust, (Kit : K03, K04)
9
707-71-35070
Collar
10
707-71-62000
Plunger
11
07000-15300
O-ring, (Kit : K03, K04)
12
07001-05300
Ring, Back-up, (Kit : K03, K04)
13
707-27-30110
Head, Cylinder
13
707-27-30090
Head, Cylinder
14
707-56-20940
Seal, Dust, (Kit : K04)
14
581-63-92670
Seal, (Kit : K03)
15
07179-15218
Ring, Snap
15
07179-15216
Ring, Snap
16
707-51-20890
Packing, Rod, (Kit : K04)
16
707-51-20080
Packing, Rod, (Kit : K03)
17
707-51-20850
Ring, Buffer, (Kit : K03, K04)
18
707-52-91761
Bushing
19
07001-05300
Ring, Back-up, (Kit : K03, K04)
20
07000-15300
O-ring, (Kit : K03, K04)
21
01253-63650
Bolt, Hexagon Socket Head
22
707-41-10270
Washer
23
707-75-20040
Ring, Snap
24
707-36-30110
Piston
25
707-44-30010
Ring, Piston, (Kit : K03, K04)
26
707-39-30900
Ring, Wear, (Kit : K03, K04)
27
707-44-30910
Ring
28
07000-B5185
O-ring, (Kit : K03, K04)
29
07001-05185
Ring, Back-up, (Kit : K03, K04)
30
01310-01640
Screw
31
707-86-14230
Tube,L.H.
32
707-86-15010
Tube,L.H.
33
707-88-26220
Band
34
707-88-28690
Bracket
35
707-88-28610
Bracket,L.H.
36
707-88-37410
Clamp
37
01010-81675
Bolt
38
01643-31645
Washer
39
176-61-41330
Clamp
40
01010-81250
Bolt
41
01643-31232
Washer
42
01010-81865
Bolt
43
01643-31845
Washer
44
01010-81840
Bolt
45
07372-21250
Bolt
46
01643-51232
Washer
47
07000-12060
O-ring, (Kit : K03, K04)
48
01010-81450
Bolt
49
01643-31445
Washer, Flat
50
07000-13048
O-ring, (Kit : K03, K04)
51
07371-51470
Flange, Split
52
707-88-33060
Cap
53
01010-81455
Bolt
54
07371-52080
Flange, Split
55
707-88-33070
Cap
Выбрано товаров: 61
