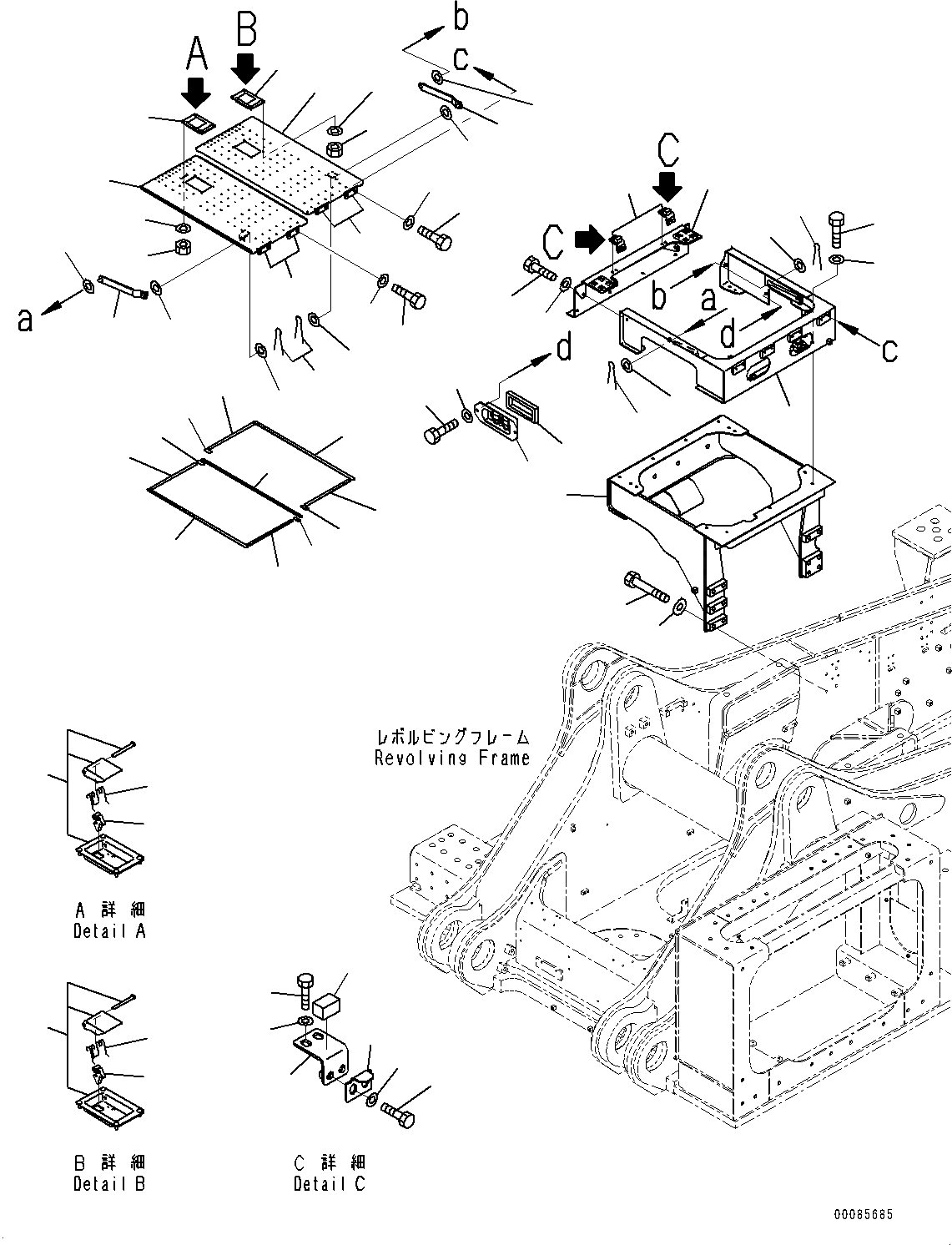

Запчасти Komatsu PC2000-8 COVER, КОРПУС (/) (№9-) COVER, С ОПЦ. COVER

1

21T-54-33712

Bracket

2

21T-54-33722

Frame

3

01010-81230

Bolt

4

01643-31232

Washer

5

21T-54-33841

Cover

6

01010-81235

Bolt

7

01643-31232

Washer

8

21T-54-33891

Duct

9

21T-54-34710

Sheet

10

01010-81225

Bolt

11

01643-31232

Washer

12

21T-54-33881

Bracket

13

01010-81225

Bolt

14

01643-31232

Washer

15

20Y-54-29651

Bracket

16

01010-81225

Bolt

17

01643-31232

Washer

18

21T-54-65830

Sheet

19

21T-54-33751

Cover

20

207-54-16520

Hinge,Welded

21

21T-54-33850

Sheet

22

21T-54-33860

Sheet

23

21T-54-33870

Sheet

24

21T-54-36850

Sheet

25

01010-81225

Bolt

26

01643-31232

Washer

27

21T-54-37150

Lock

28

198-54-42480

Hook

29

198-54-42491

Spring

30

01580-10806

Nut

31

01643-30823

Washer

32

21T-54-33831

Cover

33

207-54-16520

Hinge,Welded

34

21T-54-33850

Sheet

35

21T-54-33860

Sheet

36

21T-54-33870

Sheet

37

01010-81225

Bolt

38

01643-31232

Washer

39

21T-54-37150

Lock

40

198-54-42480

Hook

41

198-54-42491

Spring

42

01580-10806

Nut

43

01643-30823

Washer

44

21T-54-33820

Stay

45

01643-31645

Washer

46

04050-14028

Pin, Cotter

47

01010-82080

Bolt

48

01643-32060

Washer
