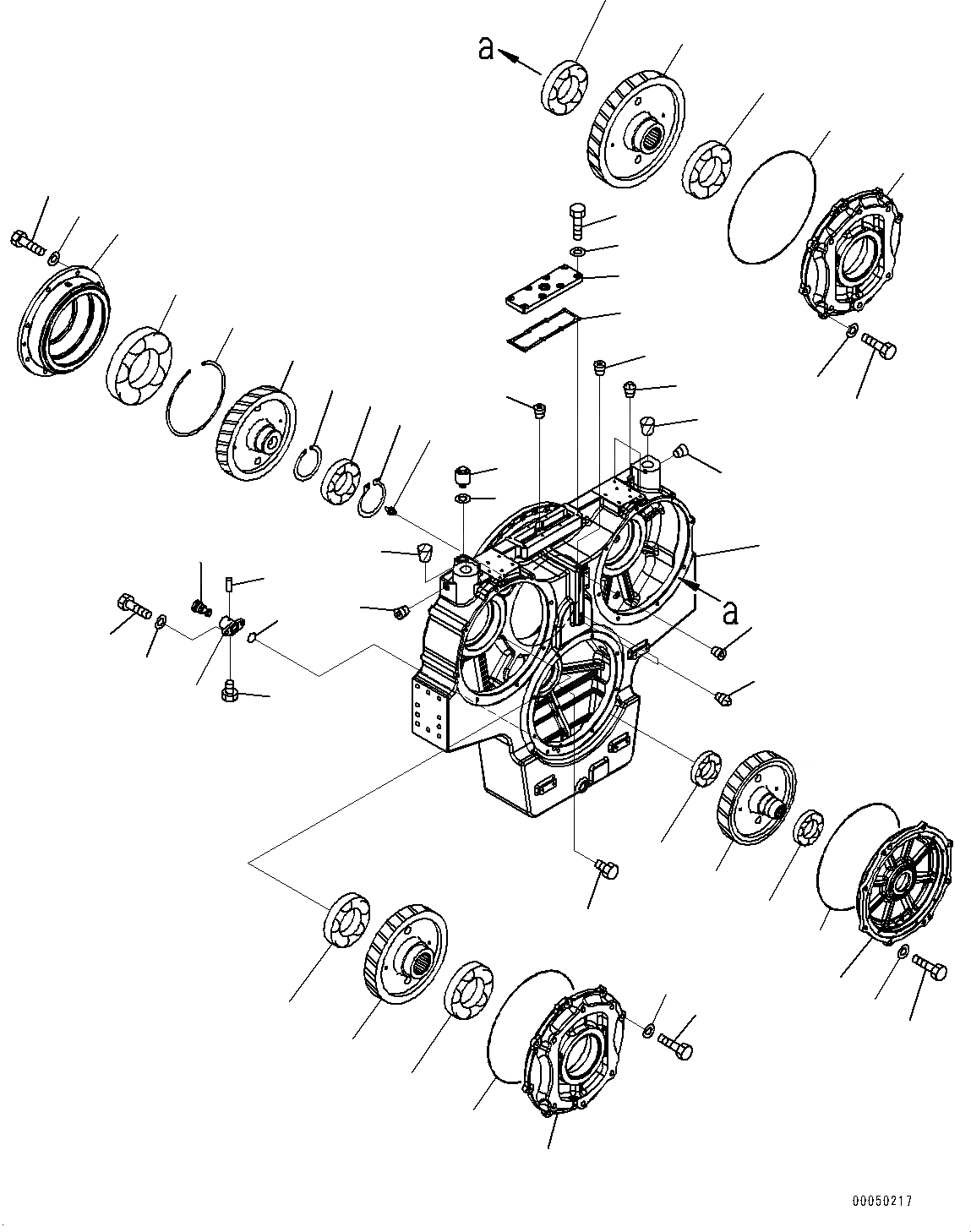

Запчасти Komatsu PC2000-8 POWER TAKEOFF, PTO(МЕХ-М ОТБОРА МОЩНОСТИ) ASSEMBLY (№9-) POWER TAKEOFF, БЕЗ SERVICE ЦЕНТР., СМАЗ. ОТСЕКАЮЩ. КЛАПАН

|$0

21T-38-00160

PTO Assembly

1

21T-38-31151

Case

2

07030-03034

Breather

3

07005-03016

Seal, Washer

4

209-38-11270

Nipple

5

21T-38-31160

Gear

6

21T-09-31110

Bearing

7

21T-09-31120

Bearing

8

21T-38-31121

Cage

9

01010-81650

Bolt

10

01643-31645

Washer

11

04064-01030

Ring, Snap, for Shaft Side

12

04071-00180

Ring, Snap

13

21T-26-11270

Snap

14

21T-38-31170

Gear

15

21T-09-31130

Bearing

16

21T-09-31140

Bearing

17

21T-38-31131

Cage

18

07000-75470

O-ring

19

01010-81650

Bolt

20

01643-31645

Washer

21

21T-38-31180

Gear

22

21T-09-31130

Bearing

23

21T-09-31140

Bearing

24

21T-38-31131

Cage

25

07000-75470

O-ring

26

01010-81650

Bolt

27

01643-31645

Washer

28

21T-38-31411

Plug

29

21T-38-31190

Gear

30

21T-09-31150

Bearing

31

21T-38-31141

Cage

32

07000-75445

O-ring

33

01010-81650

Bolt

34

01643-31645

Washer

35

21T-38-31331

Plate

36

21T-38-31240

Gasket

37

01010-81040

Bolt

38

01643-31032

Washer

39

07043-30211

Plug, Taper

40

07042-30108

Plug

41

07043-30312

Plug, Taper

42

07049-04860

Plug, Cork

42

6693-22-5600

Valve Assembly

43

Body

44

6693-22-5620

Valve

45

07040-02412

Plug

46

04020-00514

Pin, Dowel

47

07000-E3028

O-ring

48

01010-81030

Bolt

49

01643-31032

Washer
