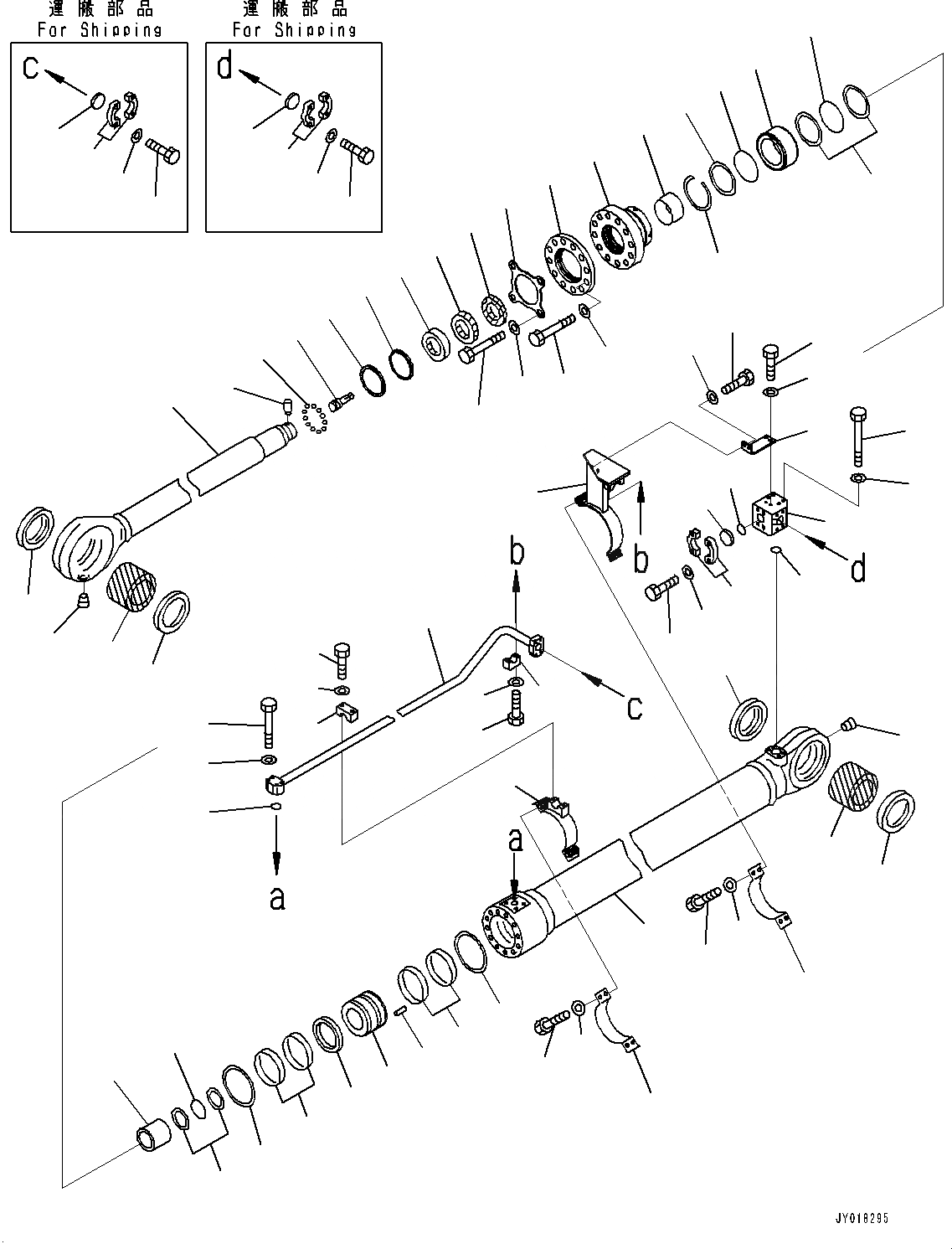

Запчасти Komatsu PC2000-8 ЦИЛИНДР КОВША, ЛЕВ. (№9-) ЦИЛИНДР КОВША

|$0

707-E1-00660

Cylinder Assembly

1

707-13-20520

Cylinder

2

707-58-14560

Rod, Piston

3

707-76-12180

Bushing

4

07145-10120

Seal, Dust, (Kit : K10)

5

07043-00108

Plug, Taper

6

707-76-14050

Bushing

7

209-72-11261

Seal, (Kit : K10)

8

07043-00108

Plug, Taper

9

707-71-61540

Plunger

10

707-71-35080

Collar

11

07000-55195

O-ring, (Kit : K10)

12

07001-05195

Ring, Back-up, (Kit : K10)

13

707-71-70350

Plunger

14

04260-00952

Ball

15

707-71-91230

Cap

16

707-27-20920

Head, Cylinder

17

707-56-14740

Seal, Dust, (Kit : K10)

18

707-51-14730

Packing, Rod, (Kit : K10)

19

707-51-14850

Ring, Buffer, (Kit : K10)

20

707-52-91171

Bushing

21

07000-55195

O-ring, (Kit : K10)

22

07001-05195

Ring, Back-up, (Kit : K10)

23

01011-82730

Bolt

24

01011-82735

Bolt

25

01643-32780

Washer

26

707-75-14110

Ring, Snap

27

707-56-14820

Seal, Dust, (Kit : K10)

28

707-88-36571

Ring

29

707-88-05170

Collar

30

707-88-05180

Plate

31

707-36-20561

Piston

32

707-44-20210

Ring, Piston, (Kit : K10)

33

707-39-20020

Ring, Wear, (Kit : K10)

34

707-44-20910

Ring

35

07000-55130

O-ring, (Kit : K10)

36

07001-05130

Ring, Back-up, (Kit : K10)

37

01310-01232

Screw

38

707-86-14270

Tube

39

707-87-14670

Elbow

40

707-88-26230

Band

41

07372-21240

Bolt

42

01643-51232

Washer

43

707-88-28660

Bracket

44

176-61-41330

Clamp

45

01010-81250

Bolt

46

01643-31232

Washer

47

01010-81280

Bolt

48

01643-31232

Washer

49

01011-81480

Bolt

50

01643-31445

Washer, Flat

51

707-88-28670

Bracket

52

707-88-33070

Cap

53

01643-31845

Washer

54

01010-81865

Bolt

55

07371-52080

Flange, Split

56

07000-53048

O-ring, (Kit : K10)

57

01010-81435

Bolt

58

707-88-37421

Plate

59

07371-51470

Flange, Split

60

707-88-33060

Cap

61

01010-81455

Bolt

62

07000-53038

O-ring, (Kit : K10)

63

07378-12010

Head

64

07000-52060

O-ring, (Kit : K10)
