Запчасти Komatsu PC2000-8 НАСОС СМАЗКИ(№-77) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

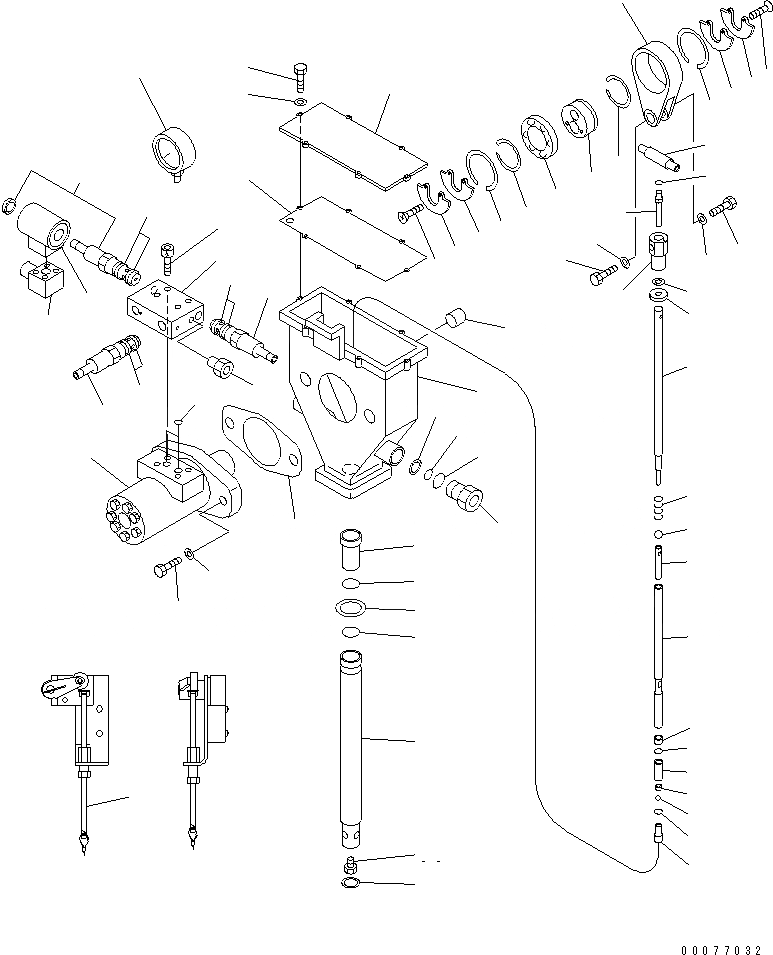

Схема запчастей Komatsu PC2000-8 - НАСОС СМАЗКИ(№-77) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
1
2
2
3
3
4
4
5
6
6
7
8
9
10
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

Артикул

Название

Примечание

Количество

|$1

21T-68-31131

GREASE PUMP ASS'Y

1

SCREW

2

WEIGHT

3

WEIGHT

4

RING

5

CRANK

6

RING

7

CRANK

8

BEARING

9

PIN

10

LI270663

SEAL KIT

11

TUBE

12

SCREW

13

BUSHING

14

ANCHOR

15

LI270663

SEAL KIT

16

LI270663

SEAL KIT

17

ROD

18

SPRING

19

BALL

20

PLUNGER

21

TUBE

22

LI270663

SEAL KIT

23

LI270663

SEAL KIT

24

CYLINDER

25

CAGE

26

BALL

27

LI270663

SEAL KIT

28

SEAT

29

SCREW

30

COVER

31

LI270663

SEAL KIT

32

LI270768

GAUGE

33

SCREW

34

LI270690

SOLENOID VALVE

35

LI270691

SOLENOID COIL

36

LI242209

CONNECTOR

37

LI270771

MANIFOLD

38

LI270692

VALVE

39

LI270693

CONTROL VALVE

40

LI270663

SEAL KIT

41

LI270663

SEAL KIT

42

LI270676

HYDRAULIC MOTOR

43

WASHER

44

SCREW

45

PLUG

46

LI270673

PUMP HOUSING ASS'Y

47

LI270663

SEAL KIT

48

LI270663

SEAL KIT

49

LI270663

SEAL KIT

50

NUT

51

BEARING

52

LI270663

SEAL KIT

53

LI270663

SEAL KIT

54

LI270663

SEAL KIT

55

TUBE

56

PLUG

57

RING

58

SEAL KIT

59

SEAL KIT

60

SEAL KIT

61

FITTING

62

GASKET

63

MT86258-LGS

SENSOR ASS'Y

Выбрано товаров: 64
