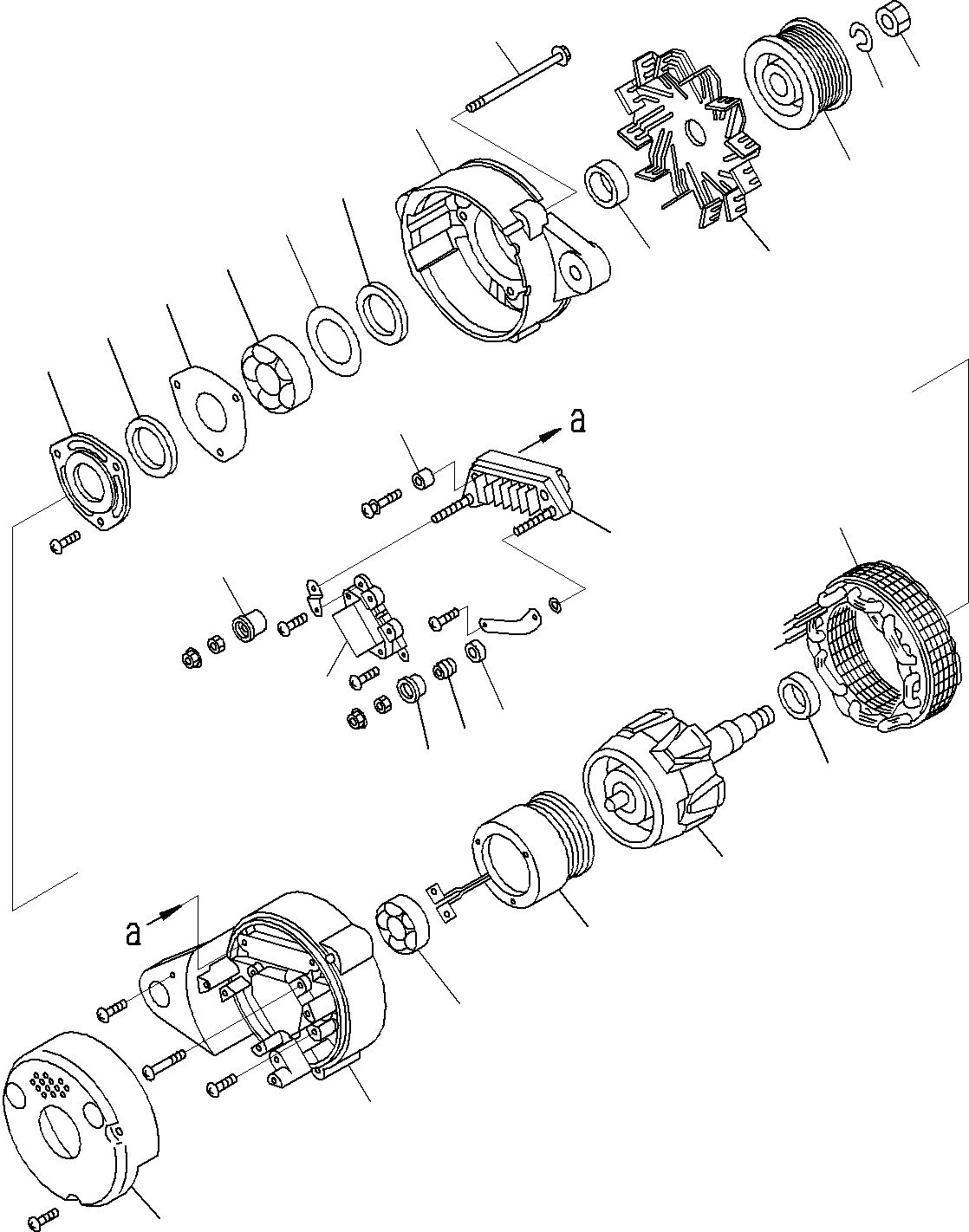

Запчасти Komatsu PC200-8M0 ГЕНЕРАТОР ( AMP, УПЛОТНЕНИЕED ГЕНЕРАТОР) A

|$1

600-861-3111

Alternator, 35Amp.

1

KD0-35100-0280

Rotor Assembly

2

KD1-33923-0790

Collar

3

KD0-09201-0870

Bearing, Ball

4

KD0-35300-0160

Bracket Assembly

5

KD0-35926-0070

Retainer

6

KD0-35951-0060

Packing

7

KD0-35926-0090

Retainer

8

KD0-09201-0880

Bearing, Ball

9

KD1-33926-0730

Retainer

10

KD0-35200-0400

Stator Assembly

11

KD0-0275-06802

Bolt

12

KD0-35411-0640

Pulley

13

KD0-35421-0140

Fan

14

KD1-0335-16001

Washer, Spring

15

KD0-02801-6022

Nut

16

KD0-35120-0450

Coil, Field

|$18

KD0-35700-0701

Bracket Assembly

17

KD0-35710-0810

Bracket

18

KD0-35730-0510

Rectifier Assembly

19

KD0-35923-0130

Collar

20

KD0-35943-0140

Bushing,Insulate

21

KD0-35943-0150

Bushing,Insulate

22

KD0-35943-0160

Bushing,Insulate

23

KD0-35943-0170

Bushing,Insulate

24

KD0-35719-1850

Regulator Assembly

25

KD0-35761-0200

Cover
