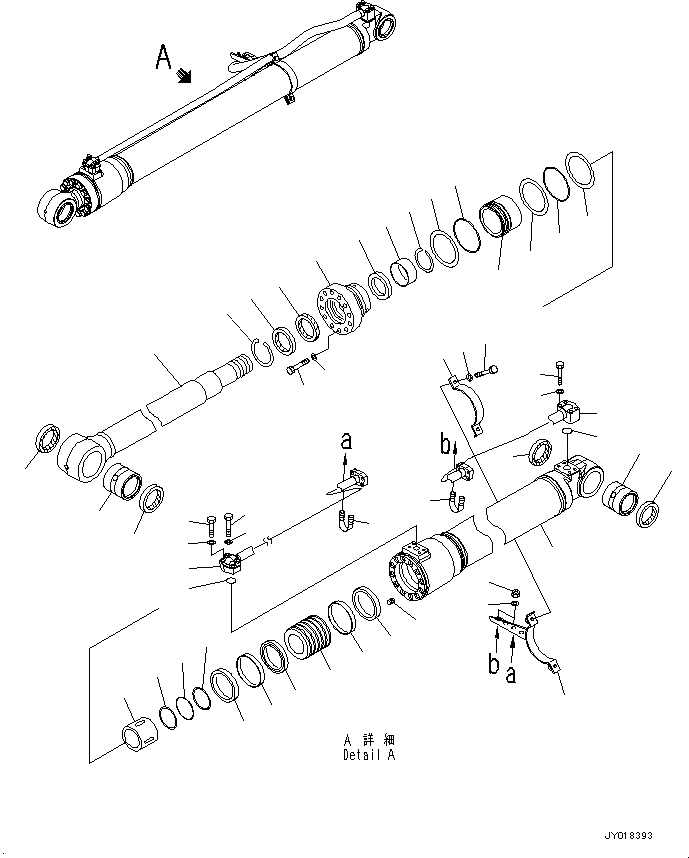

Запчасти Komatsu PC200-8M0 ЦИЛИНДР СТРЕЛЫ(ЦИЛИНДР СТРЕЛЫ, ЛЕВ.) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

-

707-E1-X1411

CYLINDER ASSEMBLY

|$2

707-E1-X1410

CYLINDER ASSEMBLY

-

724-Z1-13081

VARIATION G.

1

707-13-12740

CYLINDER

2

707-58-85430

ROD, PISTON

3

707-76-70651

BUSHING

4

07145-00070

SEAL, DUST\((K02)\)

5

707-76-80431

BUSHING

6

07145-00080

SEAL, DUST\((K02)\)

7

707-71-34680

COLLAR

8

707-35-31110

RING, BACK-UP\((K02)\)

9

07000-B5110

O-RING\((K02)\)

10

707-71-70800

PLUNGER

-

724-Z1-06851

BASIC G.

11

707-27-12650

HEAD, CYLINDER

12

707-56-85740

SEAL, DUST\((K02)\)

13

07179-13099

RING, SNAP

14

707-51-85860

PACKING, ROD\((K02)\)

15

707-51-85650

RING, BUFFER\((K02)\)

16

707-52-90611

BUSHING

17

707-35-31110

RING, BACK-UP\((K02)\)

18

07000-B5110

O-RING\((K02)\)

19

01010-81670

BOLT

20

01643-51645

WASHER

21

707-75-85110

RING, SNAP

22

707-36-12851

PISTON

23

707-44-12150

RING, PISTON\((K02)\)

24

707-39-12140

RING, WEAR\((K02)\)

25

707-44-12911

RING

26

07000-B5075

O-RING\((K02)\)

27

707-35-30750

RING, BACK-UP\((K02)\)

28

01310-01216

SCREW

29

707-86-69270

TUBE, L.H.

30

707-86-16230

TUBE, L.H.

31

707-88-51430

BRACKET, L.H.

32

07372-21060

BOLT

33

01643-51032

WASHER

34

07372-21045

BOLT

35

01643-51032

WASHER

36

707-88-21620

BAND
