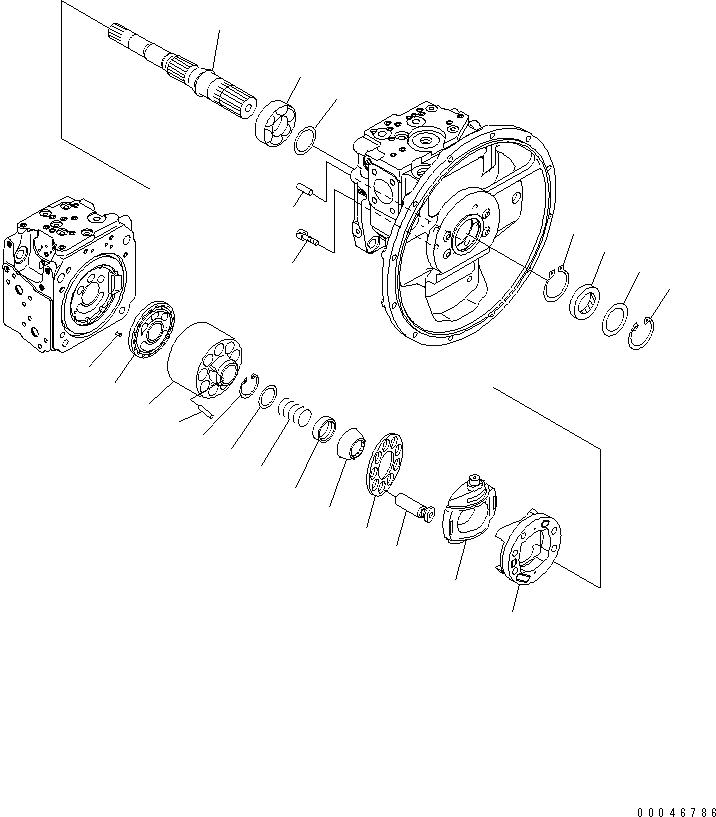

Запчасти Komatsu PC200-8 ОСНОВН. НАСОС (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

708-2L-00501

PUMP ASS'Y,(SEE FIG. Y1600-01A0)

|$3

708-2L-00500

PUMP ASS'Y,(SEE FIG. Y1600-01A0)

|$5

708-2L-01500

PUMP SUB ASS'Y,(SEE FIG. Y1600-01A0)

1

708-2L-32160

SHAFT,FRONT

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

3

WASHER, 3.1MM

3

WASHER, 3.0MM

3

WASHER, 2.9MM

3

WASHER, 2.8MM

4

708-25-12790

RING,SNAP

5

708-25-52861

SEAL,OIL

6

708-2L-22160

SPACER

7

04065-06825

RING

|$17

708-2L-06470

BLOCK ASS'Y,FRONT

8

BLOCK,CYLINDER

9

PLATE,VALVE

10

720-68-19610

PIN

11

04065-04818

RING,SNAP

12

708-2L-23131

SEAT

13

708-2L-33160

SPRING

14

708-7L-13140

SEAT

15

708-2L-23351

GUIDE,RETAINER

16

708-2L-23360

PIN

17

708-2L-33350

RETAINER,SHOE

18

708-2L-33430

PISTON SUB ASS'Y

|$29

708-2L-06630

CRADLE ASS'Y

19

CRADLE

20

CAM,ROCKER

21

04020-01228

PIN,DOWEL

22

01252-61230

BOLT
