Запчасти Komatsu PC200-7 ОСНОВН. КЛАПАН (-ACUTUATOR)(/9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

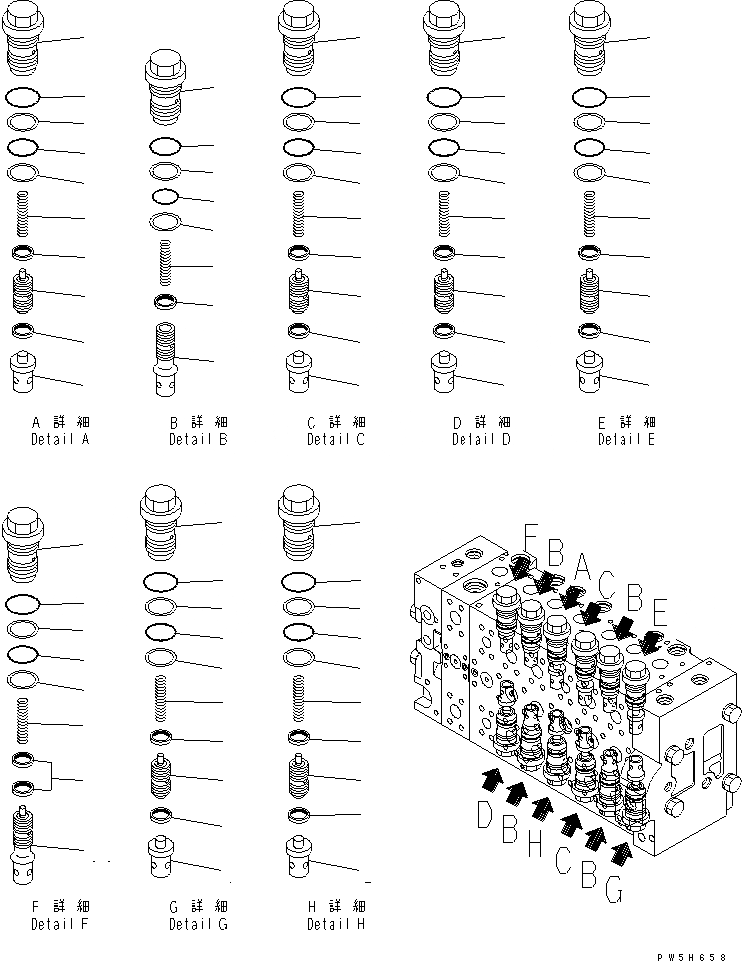

Схема запчастей Komatsu PC200-7 - ОСНОВН. КЛАПАН (-ACUTUATOR)(/9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
3
9
8
7
8
6
5
4
6
1
11
13
12
15
14
15
16
10
17
23
22
21
22
19
20
18
20
1
1
27
25
27
26
29
28
29
30
24
31
37
36
35
36
33
34
32
34
1
38
44
43
42
43
40
41
46
48
47
50
49
50
51
45
52
58
57
56
57
54
55
53
55
2
1
48
39

Артикул

Название

Примечание

Количество

|$1

723-47-20401

VALVE ASS'Y

|$3

BODY SUB ASS'Y

1

723-46-41110

VALVE

2

723-46-41120

VALVE

|$6

723-46-40100

VALVE ASS'Y

3

SLEEVE

4

PISTON

5

SPRING

6

SEAL

7

700-93-11320

O-RING

8

723-46-41950

RING

9

07002-13634

O-RING

|$14

723-46-42700

VALVE ASS'Y

10

SLEEVE

11

VALVE

12

SPRING

13

SEAL

14

700-93-11320

O-RING

15

723-46-41950

RING

16

07002-13634

O-RING

|$22

723-46-41100

VALVE ASS'Y

17

SLEEVE

18

PISTON SUB ASS'Y

19

SPRING

20

SEAL

21

700-93-11320

O-RING

22

723-46-41950

RING

23

07002-13634

O-RING

|$30

723-46-45100

VALVE ASS'Y

24

SLEEVE

25

PISTON SUB ASS'Y

26

SPRING

27

SEAL

28

700-93-11320

O-RING

29

723-46-41950

RING

30

07002-13634

O-RING

|$38

723-46-46300

VALVE ASS'Y

31

SLEEVE

32

PISTON SUB ASS'Y

33

SPRING

34

SEAL

35

700-93-11320

O-RING

36

723-46-41950

RING

37

07002-13634

O-RING

|$46

723-46-43400

VALVE ASS'Y

38

SLEEVE

39

VALVE SUB ASS'Y

40

SPRING

41

SEAL

42

700-93-11320

O-RING

43

723-46-41950

RING

44

07002-13634

O-RING

|$54

723-46-43100

VALVE ASS'Y

45

SLEEVE

46

PISTON SUB ASS'Y

47

SPRING

48

SEAL

49

700-93-11320

O-RING

50

723-46-41950

RING

51

07002-13634

O-RING

|$62

723-46-46101

VALVE ASS'Y

52

SLEEVE

53

PISTON SUB ASS'Y

54

SPRING

55

SEAL

56

700-93-11320

O-RING

57

723-46-41950

RING

58

07002-13634

O-RING

Выбрано товаров: 68
