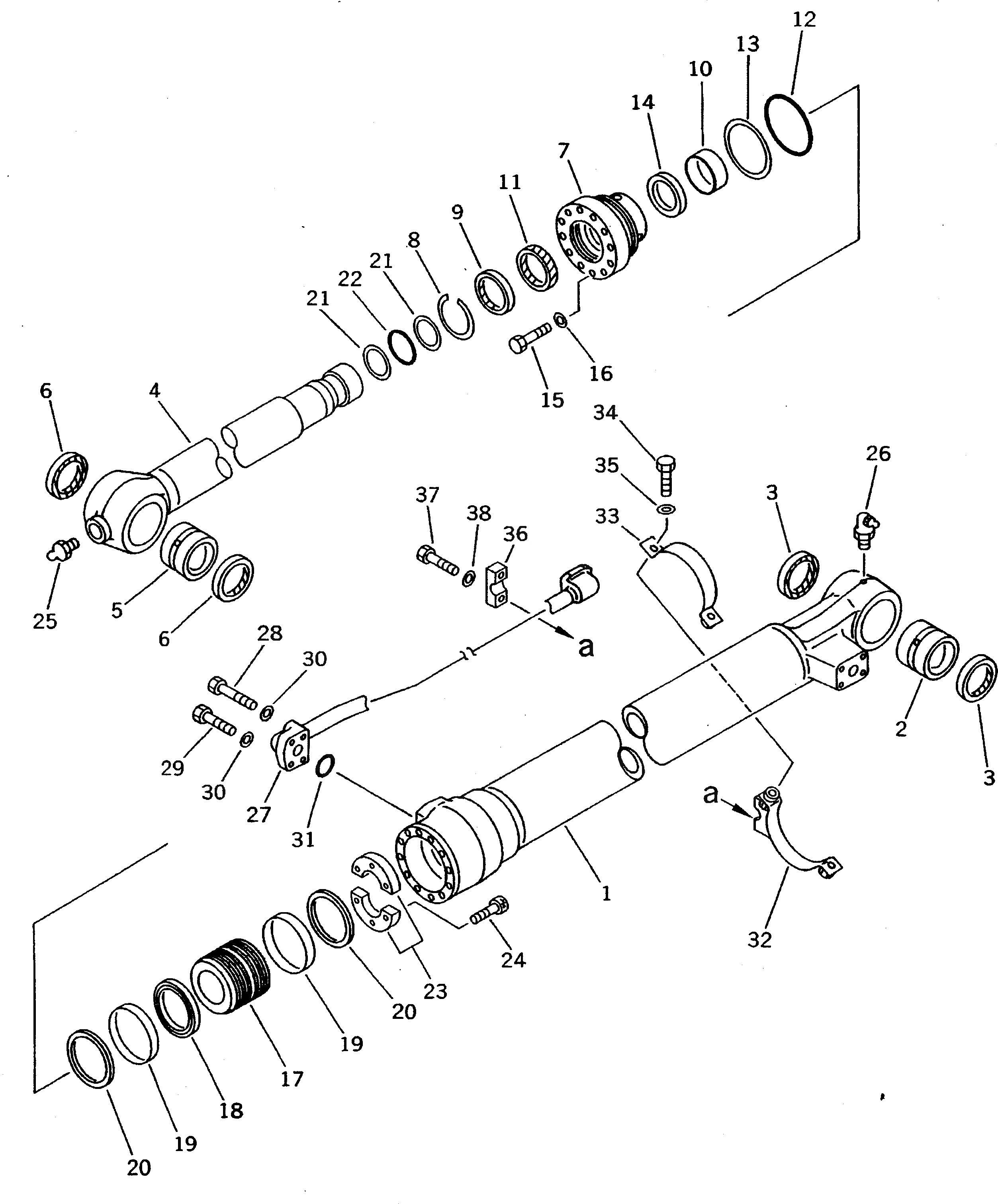

Запчасти Komatsu PC200-6Z ЦИЛИНДР КОВША (ДЛЯ 1.8M РУКОЯТИ)(№8-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

205-63-X2140

BUCKET CYLINDER G.

|1

205-63-02140

CYLINDER ASS'Y

1

205-63-73540

CYLINDER

2

707-76-70160

BUSHING

3

07145-00070

SEAL,DUST

4

205-63-73520

ROD,PISTON

5

707-76-70160

BUSHING

6

21K-70-12180

SEAL,DUST

7

707-27-12660

HEAD,CYLINDER

8

07179-13099

RING,SNAP

9

707-56-85510

SEAL,DUST

10

707-52-90600

BUSHING

11

707-51-85030

PACKING,ROD

12

07000-15120

O-RING

13

07001-05120

RING,BACK-UP

14

707-51-85630

RING,BUFFER

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-12420

PISTON

18

707-44-12280

RING,PISTON

19

707-39-12530

RING,WEAR

20

707-44-12921

RING

21

07001-02065

RING,BACK-UP

22

07000-12065

O-RING

23

707-40-12870

PLATE

24

01252-31240

BOLT

25

07020-00000

FITTING,GREASE

26

07020-00900

FITTING,GREASE

27

205-63-73570

TUBE

28

07372-21060

BOLT

29

07372-21045

BOLT

30

01643-51032

WASHER

31

07000-13030

O-RING

32

707-88-87090

BRACKET

33

707-88-87150

BAND

34

01010-51035

BOLT

35

01643-51032

WASHER

36

707-88-13590

CLAMP

37

01010-51040

BOLT

38

01643-31032

WASHER
