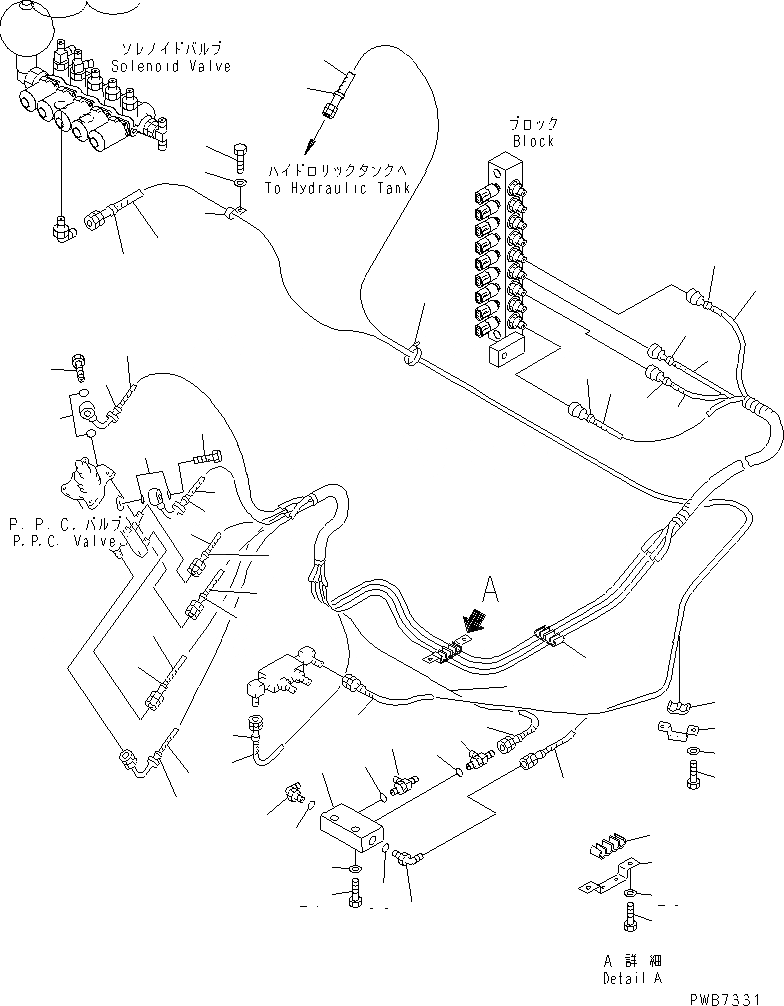

Запчасти Komatsu PC200-6Z РАБОЧАЯ ЛИНИЯ PPC (ПАТРУБКИ ПРАВОЙ СТОЙКИ) ( АКТУАТОР)(№9999-9) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-62-21910

HOSE¤ 1535MM

2

20Y-62-23272

HOSE¤ 2820MM

3

20Y-62-23282

HOSE

4

20Y-62-21920

HOSE¤ 2770MM

5

20Y-62-23931

HOSE

6

20Y-62-23961

HOSE

7

20Y-62-22170

CLAMP

8

20Y-62-22790

BAND¤ RED

9

20Y-62-22820

BAND¤ BLUE

10

20Y-62-22830

BAND¤ WHITE

11

20Y-62-22840

BAND¤ BLACK

12

20Y-62-22850

BAND¤ GREEN

13

20Y-62-22860

BAND¤ BROWN

14

702-16-53240

PLUG

15

07000-02018

O-RING

16

20Y-62-16170

BOLT

17

07000-02015

O-RING

18

20Y-62-22180

CLAMP

19

01010-51016

BOLT

20

01643-31032

WASHER

21

203-62-63220

HOSE¤ 3400MM

22

20Y-62-23920

HOSE¤ 2200MM

23

20Y-62-22190

CLAMP

24

20Y-62-22790

BAND¤ RED

25

20Y-62-22820

BAND¤ BLUE

26

20Y-62-22151

BLOCK

27

01010-51050

BOLT

28

01643-31032

WASHER

29

07235-10315

ELBOW

30

07002-02034

O-RING

31

07235-10210

ELBOW

32

07002-01423

O-RING

33

208-62-17550

TEE

34

07002-01423

O-RING

35

20Y-62-22210

BRACKET

36

01010-51016

BOLT

37

01643-31032

WASHER

38

08036-01414

CLIP

39

01010-51230

BOLT

40

01643-31232

WASHER

41

08034-00519

BAND
