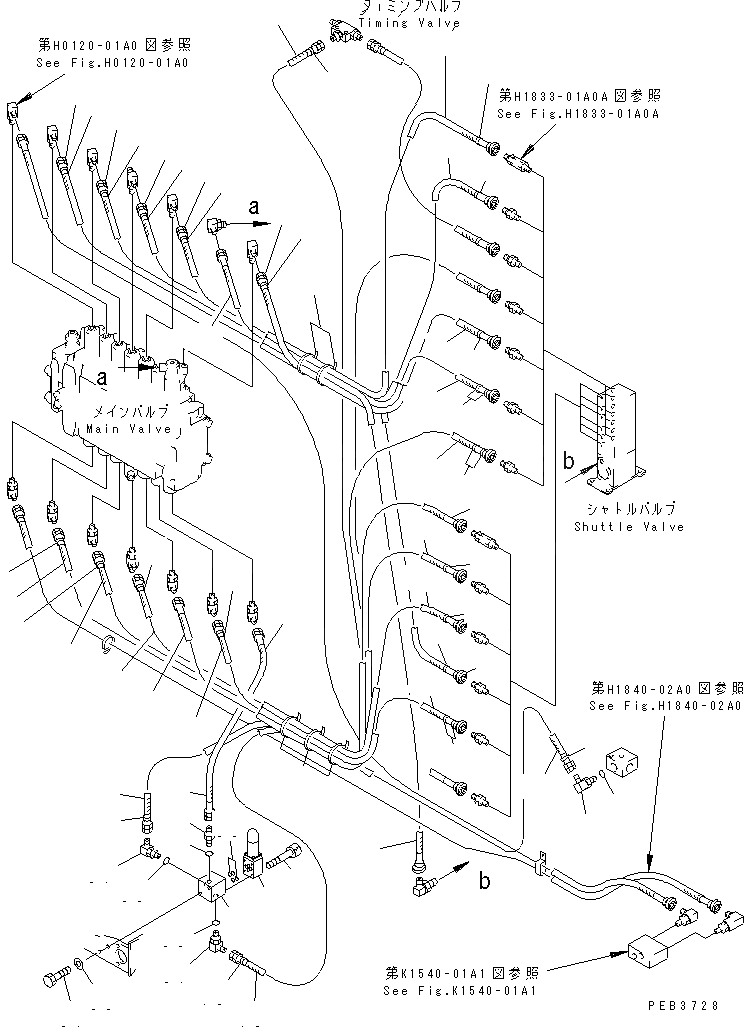

Запчасти Komatsu PC200-6Z ОСНОВН. ЛИНИЯ PPC (КЛАПАН ЛИНИИ PPCS) (СПЕЦ-Я ДЛЯ РАЗРУШ. ЗДАНИЙ)(№8-899) ГИДРАВЛИКА

1

08034-00536

BAND

2

20Y-62-22660

HOSE¤ 470MM

3

20Y-62-22850

BAND¤ GREEN

4

20Y-62-22710

HOSE¤ 420MM

5

20Y-62-22830

BAND¤ WHITE

6

20Y-62-22680

HOSE¤ 520MM

7

20Y-62-22840

BAND¤ BLACK

8

20Y-62-22690

HOSE¤ 315MM

9

20Y-62-22790

BAND¤ RED

10

20Y-62-22680

HOSE¤ 520MM

11

20Y-62-22720

HOSE¤ 535MM

12

20Y-62-22820

BAND¤ BLUE

13

08034-00536

BAND

14

20Y-62-22720

HOSE¤ 535MM

15

20Y-62-22790

BAND¤ RED

16

20Y-62-22770

HOSE¤ 700MM

17

20Y-62-22860

BAND¤ BROWN

18

20Y-62-22940

HOSE¤ 1100MM

19

20Y-62-22820

BAND¤ BLUE

20

20Y-62-22760

HOSE¤ 840MM

21

20Y-62-22830

BAND¤ WHITE

22

20Y-62-22770

HOSE¤ 700MM

23

20Y-62-22780

HOSE¤ 650MM

24

20Y-62-22850

BAND¤ GREEN

25

20Y-62-23640

HOSE¤ 800MM

26

20Y-62-22820

BAND¤ BLUE

27

207-62-33920

ELBOW

28

07002-01423

O-RING

29

20Y-62-23650

HOSE¤ 400MM

30

20Y-62-23630

BLOCK

31

207-62-33920

ELBOW

32

205-62-55270

NIPPLE

33

07002-01423

O-RING

34

20Y-60-21700

VALVE ASS'Y

35

205-62-74580

O-RING

36

01252-40550

BOLT

37

01010-51035

BOLT

38

01643-31232

WASHER
