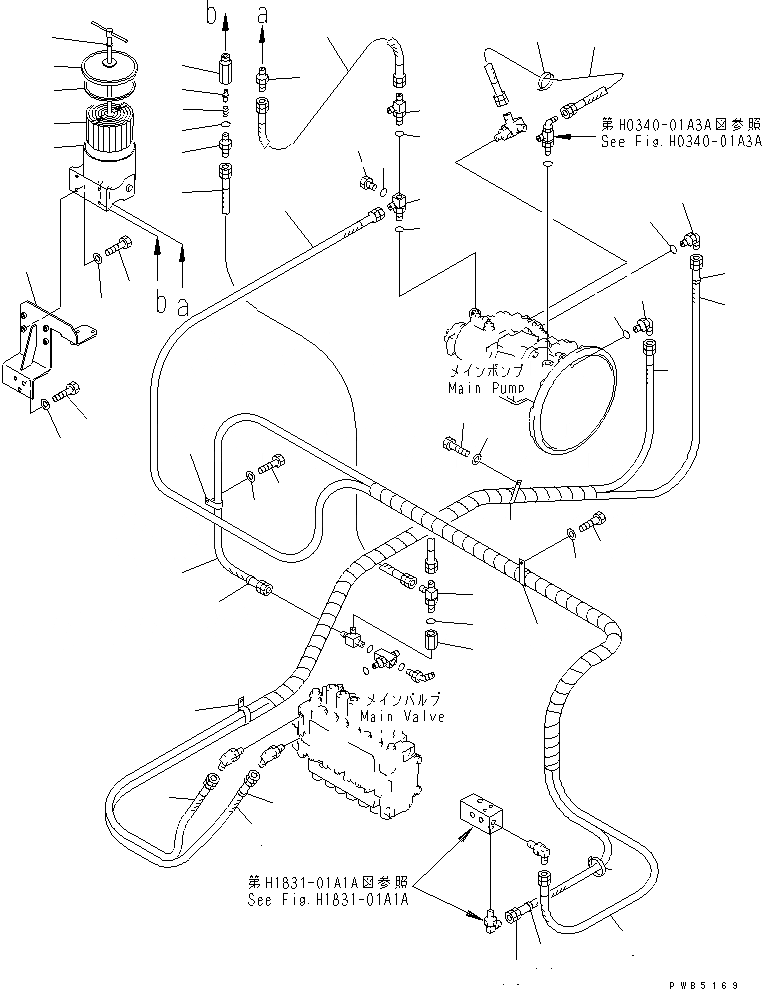

Запчасти Komatsu PC200-6Z ЛИНИЯ LS(С BY-PASS ФИЛЬТР.)(№89-9) ГИДРАВЛИКА

1

07096-00215

HOSE

2

20Y-62-22790

BAND¤ RED

3

07096-00217

HOSE

4

04435-51812

CLIP

5

01010-81225

BOLT

6

01643-31232

WASHER

7

07235-10210

ELBOW

8

07002-11423

O-RING

9

20Y-62-21970

HOSE¤ 1600MM

10

20Y-62-22990

HOSE¤ 2150MM

11

20Y-62-22820

BAND¤ BLUE

12

20Y-62-22341

TEE

13

07002-12434

O-RING

14

07235-10315

ELBOW

15

07002-12034

O-RING

16

07040-11007

PLUG

17

07002-11023

O-RING

18

04435-51812

CLIP

19

04434-51512

CLIP

20

01010-81225

BOLT

21

01643-31232

WASHER

22

08034-00536

BAND

23

203-62-52310

HOSE¤ 700MM

24

08034-00519

BAND

25

208-62-67410

FILTER ASS'Y

26

208-62-67430

ELEMENT

27

208-62-67440

SEAL,WASHER

28

208-62-67450

PACKEN

29

01010-81225

BOLT

30

01643-31232

WASHER

31

20Y-62-25760

BRACKET

32

01010-81230

BOLT

33

01643-31232

WASHER

34

07102-20310

HOSE

35

566-35-14340

NIPPLE

|36

20Y-60-22900

VALVE ASS'Y

36

BODY

37

20Y-60-22920

POPPET

38

701-20-61230

SPRING

39

07002-11423

O-RING

40

20Y-60-22230

NIPPLE

41

07102-20306

HOSE

42

20Y-62-21880

JOINT

43

209-62-57210

TEE

44

07002-12034

O-RING
