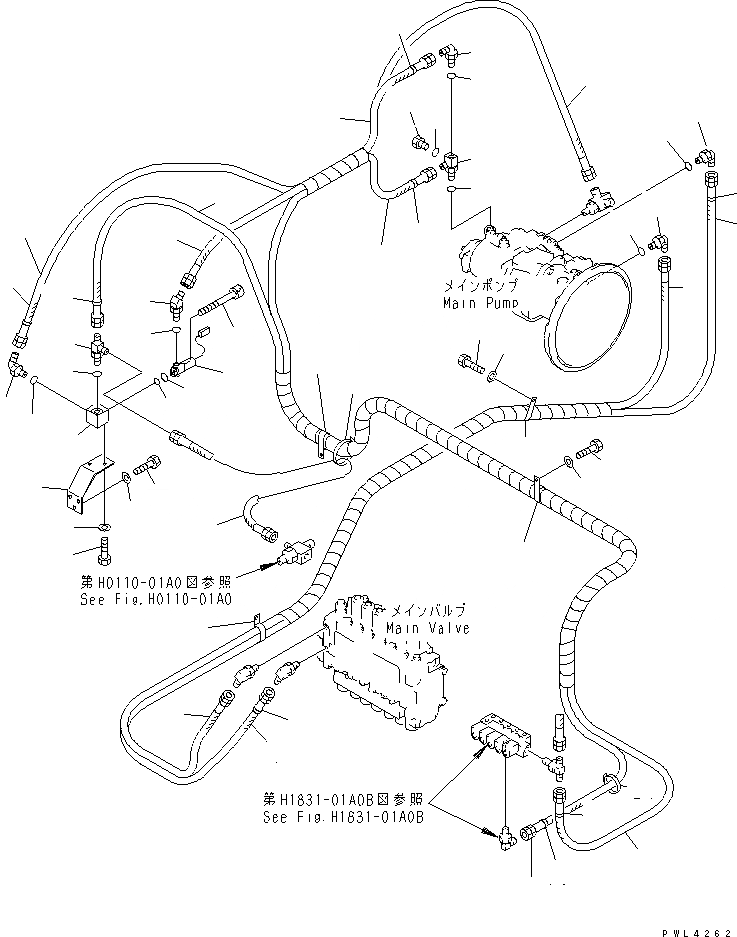

Запчасти Komatsu PC200-6Z LS ЛИНИИ(№89-89) ГИДРАВЛИКА

1

07096-00215

HOSE

2

20Y-62-22790

BAND¤ RED

3

07096-00217

HOSE

4

04435-51612

CLIP

5

01010-51225

BOLT

6

01643-31232

WASHER

7

07235-10210

ELBOW

8

07002-11423

O-RING

9

20Y-62-23461

ELBOW

10

07002-01423

O-RING

11

20Y-62-21970

HOSE¤ 1600MM

12

20Y-62-22820

BAND¤ BLUE

13

203-62-52330

HOSE¤ 600MM

14

20Y-62-22810

BAND¤ YELLOW

15

20Y-62-22990

HOSE¤ 2150MM

16

20Y-62-22790

BAND¤ RED

17

203-62-52280

HOSE¤ 900MM

18

20Y-62-22342

TEE

19

07002-02434

O-RING

20

07235-10315

ELBOW

21

07002-02034

O-RING

22

07040-11007

PLUG

23

07002-01023

O-RING

24

04435-51512

CLIP

25

01010-51225

BOLT

26

01643-31232

WASHER

27

08034-00536

BAND

28

702-21-07010

VALVE ASS'Y,EPC

28A

203-60-62220

BOLT

29

700-93-11320

O-RING

30

07000-02011

O-RING

31

209-62-57210

TEE

32

07002-02034

O-RING

33

20Y-62-22110

BLOCK

34

203-62-61450

HOSE¤ 330MM

35

07235-10315

ELBOW

36

07002-02034

O-RING

37

08034-00519

BAND

38

20Y-62-22121

BRACKET

39

01010-51025

BOLT

40

01643-31032

WASHER

41

01010-51230

BOLT

42

01643-31232

WASHER
