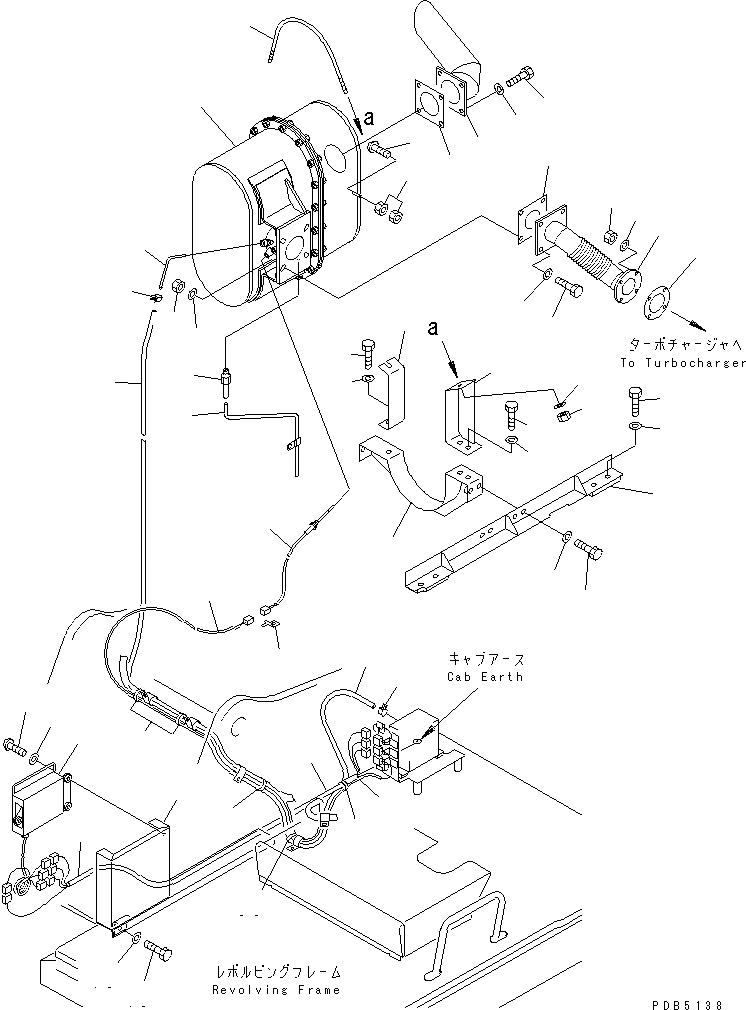

Запчасти Komatsu PC200-6Z КЕРАМИЧ. ГЛУШИТЕЛЬ(№89-9998) КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

6138-12-5512

MUFFLER

2

01220-40540

SCREW

3

01580-10504

NUT

4

20Y-01-21571

TUBE

|4

20Y-01-21570

TUBE

5

01580-10806

NUT

6

01643-30823

WASHER

7

6205-11-5820

GASKET

8

01010-51240

BOLT

9

01643-31232

WASHER

10

01580-11210

NUT

11

6138-11-5810

GASKET

12

20Y-01-21560

PIPE

13

01010-81225

BOLT

14

01643-31232

WASHER

15

6138-11-5810

GASKET

16

6124-11-6151

NIPPLE

17

6209-11-5490

TUBE

18

20Y-54-23820

FRAME

19

01010-51240

BOLT

20

01643-31232

WASHER

21

20Y-01-21530

BRACKET

22

01010-81225

BOLT

23

01643-31232

WASHER

24

20Y-01-21540

BRACKET

25

01010-81225

BOLT

26

01643-31232

WASHER

27

20Y-01-21520

BRACKET

28

01010-81225

BOLT

29

01643-31232

WASHER

30

20Y-01-21510

U-BOLT

31

01580-11008

NUT

32

01643-31032

WASHER

33

20Y-06-22670

WIRING HARNESS

34

07288-20645

HOSE

35

08053-01512

CLIP

36

08034-00519

BAND

37

07285-00100

CLIP

38

6138-82-5560

SENSOR

39

6138-12-5570

TUBE

40

6138-82-5510

MONITOR ASS'Y

41

01010-50825

BOLT

42

01643-30823

WASHER

43

203-06-66160

COVER

44

203-06-66140

WIRING HARNESS

45

01010-51020

BOLT

46

01643-31032

WASHER
