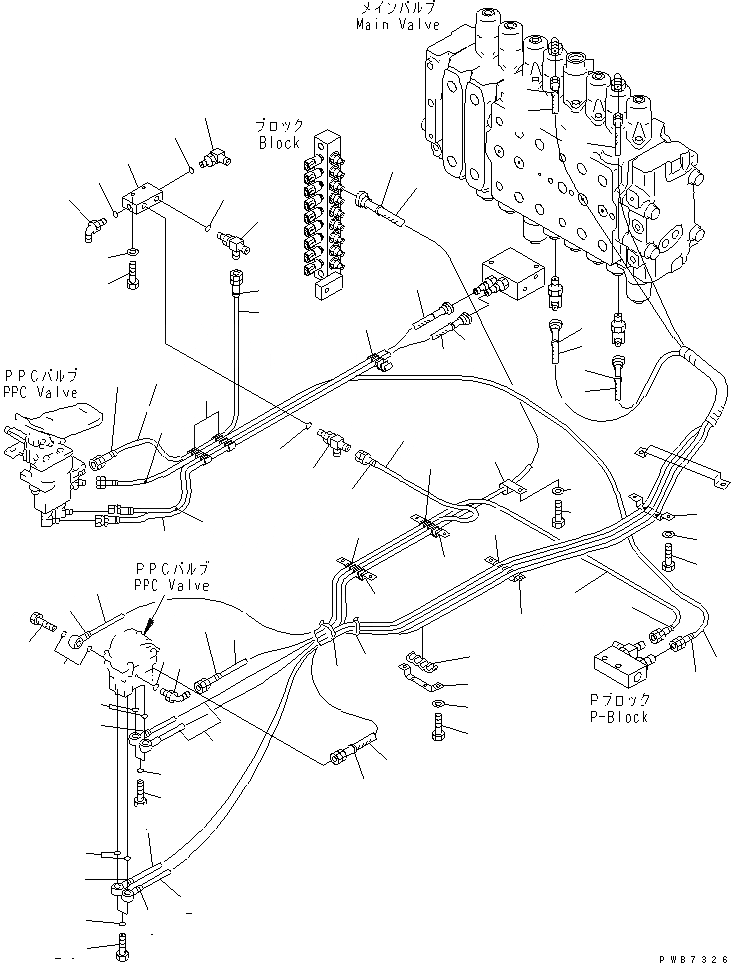

Запчасти Komatsu PC200-6Z ОСНОВН. КОНСТРУКЦИЯ (PPC ЛИНИЯ ХОДА) ( АКТУАТОР)(№9-9899) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08034-00536

BAND

2

20Y-62-27120

HOSE

3

20Y-62-22790

BAND, RED

4

20Y-62-27130

HOSE

5

20Y-62-22850

BAND, GREEN

6

20Y-62-27140

HOSE, 3300MM

7

20Y-62-22820

BAND, BLUE

8

20Y-62-22170

CLAMP

9

20Y-62-22871

HOSE

10

20Y-62-22790

BAND, RED

11

20Y-62-22881

HOSE

12

20Y-62-22820

BAND, BLUE

13

203-62-52350

HOSE, 1200MM

14

20Y-62-22790

BAND, RED

15

203-62-52340

HOSE, 1000MM

16

20Y-62-22810

BAND, YELLOW

17

20Y-62-23282

HOSE

18

20Y-62-22830

BAND, WHITE

19

20Y-62-23411

HOSE, 1950MM

20

20Y-62-23571

HOSE, 1900MM

21

20Y-62-22810

BAND, YELLOW

22

20Y-62-22170

CLAMP

23

702-16-53240

PLUG

24

07000-02018

O-RING

25

07235-10210

ELBOW

26

07002-01423

O-RING

27

08034-00519

BAND

28

20Y-62-16170

BOLT

29

07000-02015

O-RING

30

04434-51312

CLIP

31

01010-81020

BOLT

32

01643-31032

WASHER

33

20Y-62-22180

CLAMP

34

01010-81016

BOLT

35

01643-31032

WASHER

36

207-62-62270

CLAMP

37

20Y-62-15831

BLOCK

38

207-62-33920

ELBOW

39

07002-01423

O-RING

40

07235-10210

ELBOW

41

07002-01423

O-RING

42

208-62-17550

TEE

43

07002-01423

O-RING

44

01010-81045

BOLT

45

01643-31032

WASHER
