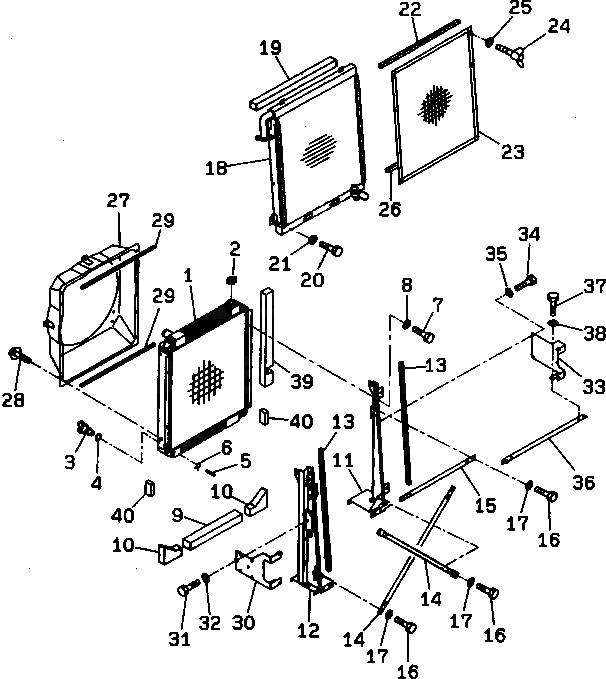

Запчасти Komatsu PC200-6Z ОХЛАЖД-Е (РАДИАТОР) (ЖЕСТК. МАСЛООХЛАДИТЕЛЬ) (С КОНДИЦИОНЕРОМ)(№89-98) СИСТЕМА ОХЛАЖДЕНИЯ

1

20Y-03-21510

CORE ASS'Y

2

205-03-71280

CAP ASS'Y

3

205-03-62660

PLUG

4

07000-01007

O-RING

5

203-03-41411

HOSE

6

20Y-03-11330

CLIP

7

01010-51025

BOLT

8

01643-31032

WASHER

9

20Y-03-21480

SEAL

10

20Y-03-21490

SEAL

11

20Y-03-21152

BRACKET

12

20Y-03-21162

BRACKET

13

20Y-03-21320

SEAL

14

20Y-03-21410

STAY

15

20Y-03-21420

STAY

16

01010-51230

BOLT

17

01643-31232

WASHER

18

20Y-03-21610

OIL COOLER ASS'Y

19

20Y-03-21330

SEAL

20

01010-51225

BOLT

21

01643-31232

WASHER

22

20Y-03-21430

SEAL

23

20Y-03-21141

NET

24

01434-10616

BOLT, WING

25

01643-30823

WASHER

26

20Y-03-21430

SEAL

27

20Y-03-21520

SHROUD

28

01435-20816

BOLT

29

20Y-03-14110

SEAL

30

20Y-979-2831

BRACKET

31

01010-51025

BOLT

32

01643-31032

WASHER

33

20Y-979-2841

BRACKET

34

01010-51025

BOLT

35

01643-31032

WASHER

36

20Y-979-2820

BRACKET

37

01010-51025

BOLT

38

01643-31032

WASHER

39

20Y-03-21270

SEAL

40

20Y-03-21260

SEAL
