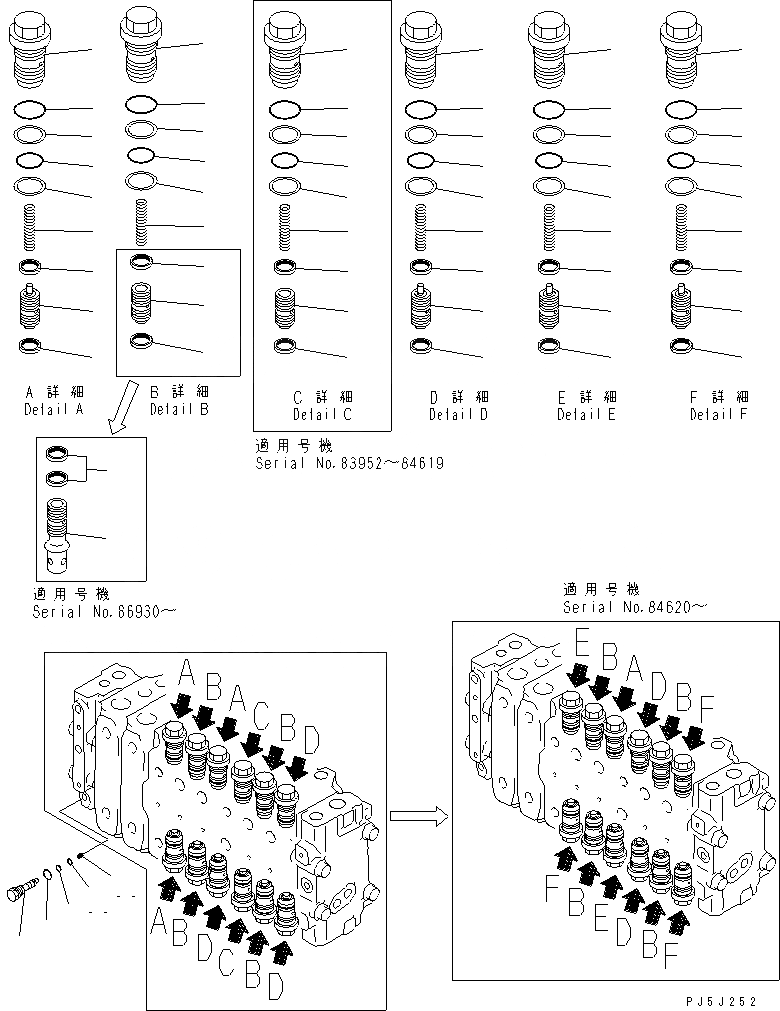

Запчасти Komatsu PC200-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№89-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$3
723-48-11501
VALVE ASS'Y
|$4
723-48-11500
VALVE ASS'Y
|$5
723-48-11105
VALVE ASS'Y
|$7
723-46-40100
VALVE ASS'Y
|$8
723-46-40100
VALVE ASS'Y
1
SLEEVE
2
PISTON SUB ASS'Y
3
SPRING
4
SEAL
5
700-93-11320
O-RING
6
723-46-41950
RING
7
07002-13634
O-RING
|$16
723-46-42500
VALVE ASS'Y
|$17
723-46-40300
VALVE ASS'Y
8
SLEEVE
8
SLEEVE
9
VALVE
9
PISTON
10
SPRING
11
SEAL
11
SEAL
12
700-93-11320
O-RING
13
723-46-41950
RING
14
07002-13634
O-RING
|$28
723-46-40200
VALVE ASS'Y
15
SLEEVE
16
PISTON SUB ASS'Y
17
SPRING
18
SEAL
19
700-93-11320
O-RING
20
723-46-41950
RING
21
07002-13634
O-RING
|$36
723-46-41100
VALVE ASS'Y
|$37
723-46-41100
VALVE ASS'Y
22
SLEEVE
23
PISTON SUB ASS'Y
24
SPRING
25
SEAL
26
700-93-11320
O-RING
27
723-46-41950
RING
28
07002-13634
O-RING
|$45
723-46-15100
PLUG ASS'Y
29
PLUG
30
SCREW
31
07002-11423
O-RING
32
07000-11007
O-RING
33
07001-01007
RING,BACK-UP
|$51
723-46-46101
VALVE ASS'Y
34
SLEEVE
35
PISTON SUB ASS'Y
36
SPRING
37
SEAL
38
700-93-11320
O-RING
39
723-46-41950
RING
40
07002-13634
O-RING
|$59
723-46-45100
VALVE ASS'Y
41
SLEEVE
42
PISTON SUB ASS'Y
43
SPRING
44
SEAL
45
700-93-11320
O-RING
46
723-46-41950
RING
47
07002-13634
O-RING
Выбрано товаров: 63
