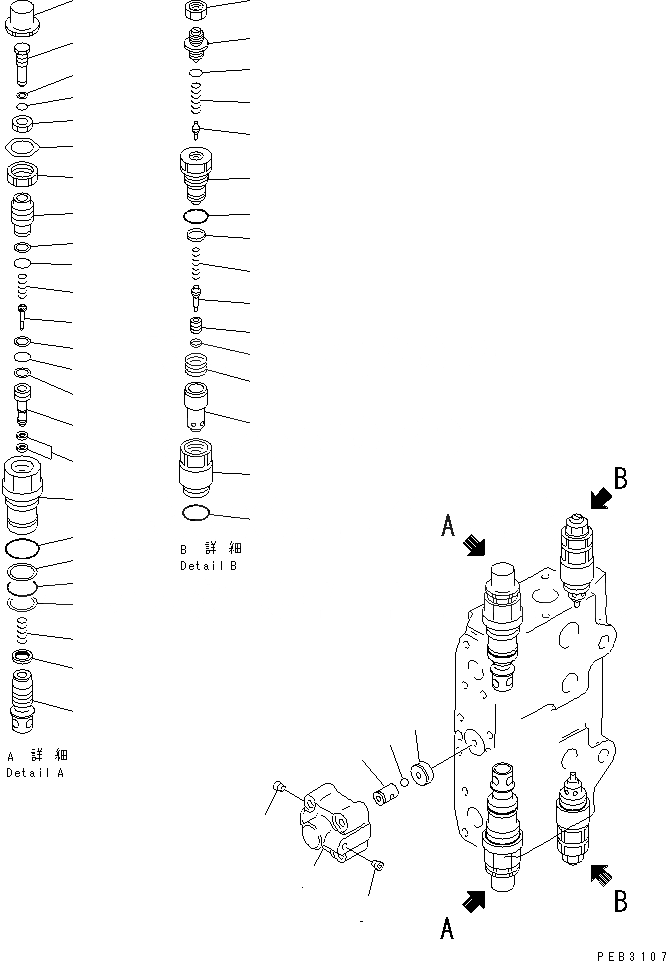

Запчасти Komatsu PC200-6Z ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№89-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

723-47-11501

VALVE ASS'Y

|$3

723-40-66300

VALVE ASS'Y

1

CASE

2

SEAT

3

SEAT

4

BALL

5

PLUG

|$9

723-46-48100

VALVE ASS'Y

6

SLEEVE

7

VALVE

8

SEAT

9

POPPET

10

PLUG

11

SCREW

12

NUT

13

NUT

14

SPRING

15

SPRING

16

PLATE

17

CAP

18

SEAL

19

SEAL

20

700-93-11320

O-RING

21

723-46-41950

RING

22

07002-13634

O-RING

23

O-RING

24

RING

25

O-RING

26

RING,BACK-UP

|$31

709-70-74600

VALVE ASS'Y,SUCTION AND SAFETY

27

SLEEVE

28

SLEEVE

29

POPPET

30

PISTON

31

PLUG

32

POPPET

33

SCREW

34

SPRING

35

SPRING

36

SPRING

37

SEAL

38

SEAL

39

709-25-11390

O-RING

40

O-RING

41

O-RING

42

NUT
