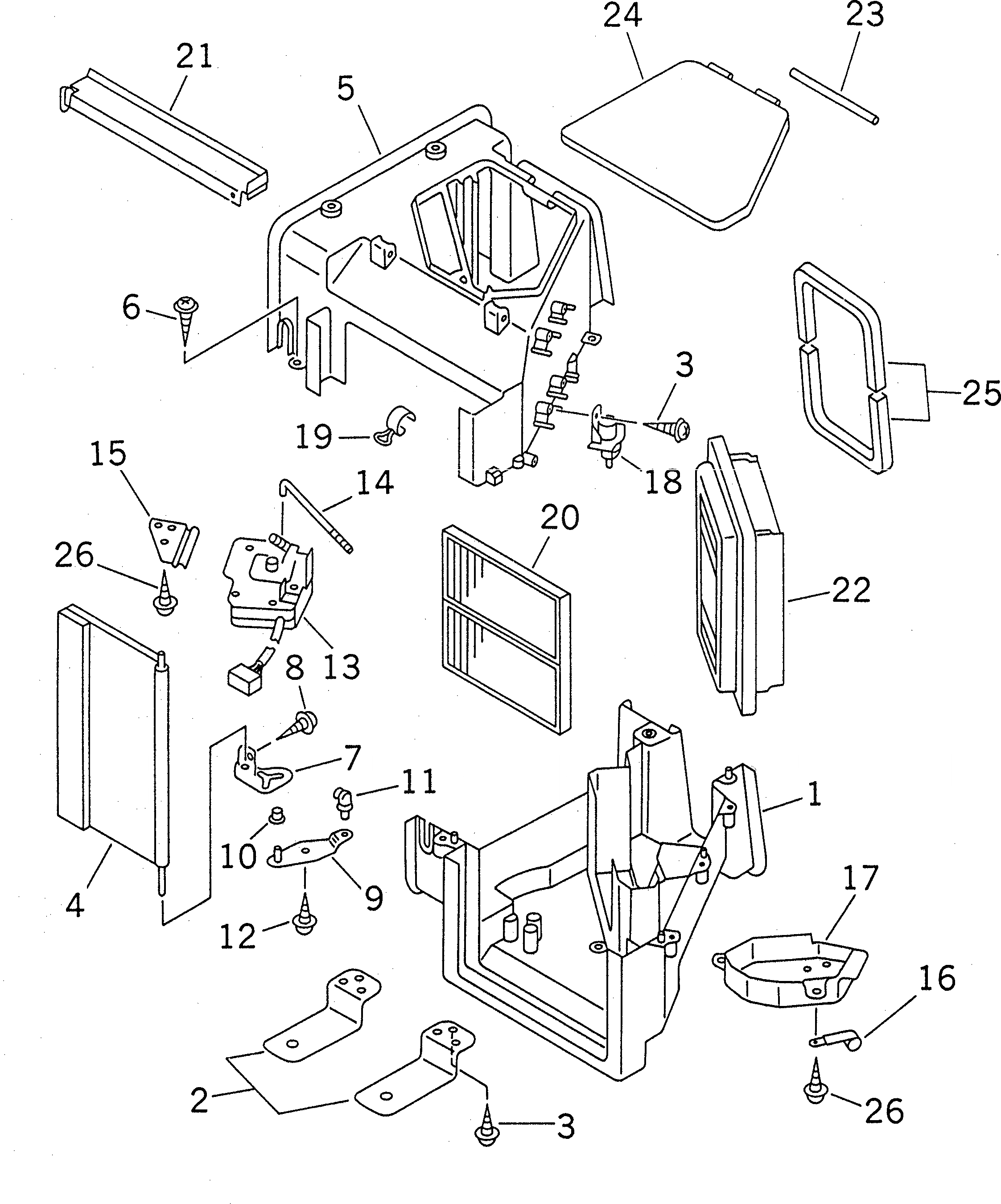

Запчасти Komatsu PC200-6S ОТСЕК ФИЛЬТРОВ В СБОРЕ (С КОНДИЦИОНЕРОМ)(№8-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

ND146340-0420

FILTER BOX ASS'Y

|1

ND146340-0313

FILTER BOX ASS'Y

1

ND017321-2281

CASE

|1

ND017321-2280

CASE

2

ND246611-9951

BRACKET

|2

ND246611-9950

BRACKET

3

ND90930-06141

SCREW

|3

ND90930-06201

SCREW

4

ND116650-2921

DAMPER

|4

ND116650-2920

DAMPER

5

ND017321-2292

CASE

|5

ND017321-2290

CASE

6

ND949001-1730

SCREW

7

ND017732-3701

LEVER

|7

ND017732-3700

LEVER

8

ND91370-03081

SCREW

9

ND017730-7510

LEVER

10

ND146625-2630

BUSHING

11

17M-911-3290

CLAMP

12

ND949008-0420

SCREW

13

ND063700-6290

MOTOR

|13

ND063700-4980

MOTOR

14

ND116662-1840

SHAFT

15

ND246690-6070

CLAMP

16

ND146691-2790

CLAMP

17

ND017361-0811

DUCT

|17

ND017361-0810

DUCT

18

20Y-979-2680

RELAY

19

ND014030-0450

CLAMP

20

14X-911-7741

FILTER

21

ND146370-6150

COVER

|21

ND146370-5230

COVER

22

569-07-61190

ELEMENT

|22

14X-911-7750

FILTER

23

ND116564-3560

PIN

24

ND146373-6941

COVER

|24

ND146370-5250

COVER

25

ND146648-8001

PACKING

|25

ND146648-8000

PACKING

26

ND90930-05161

SCREW
