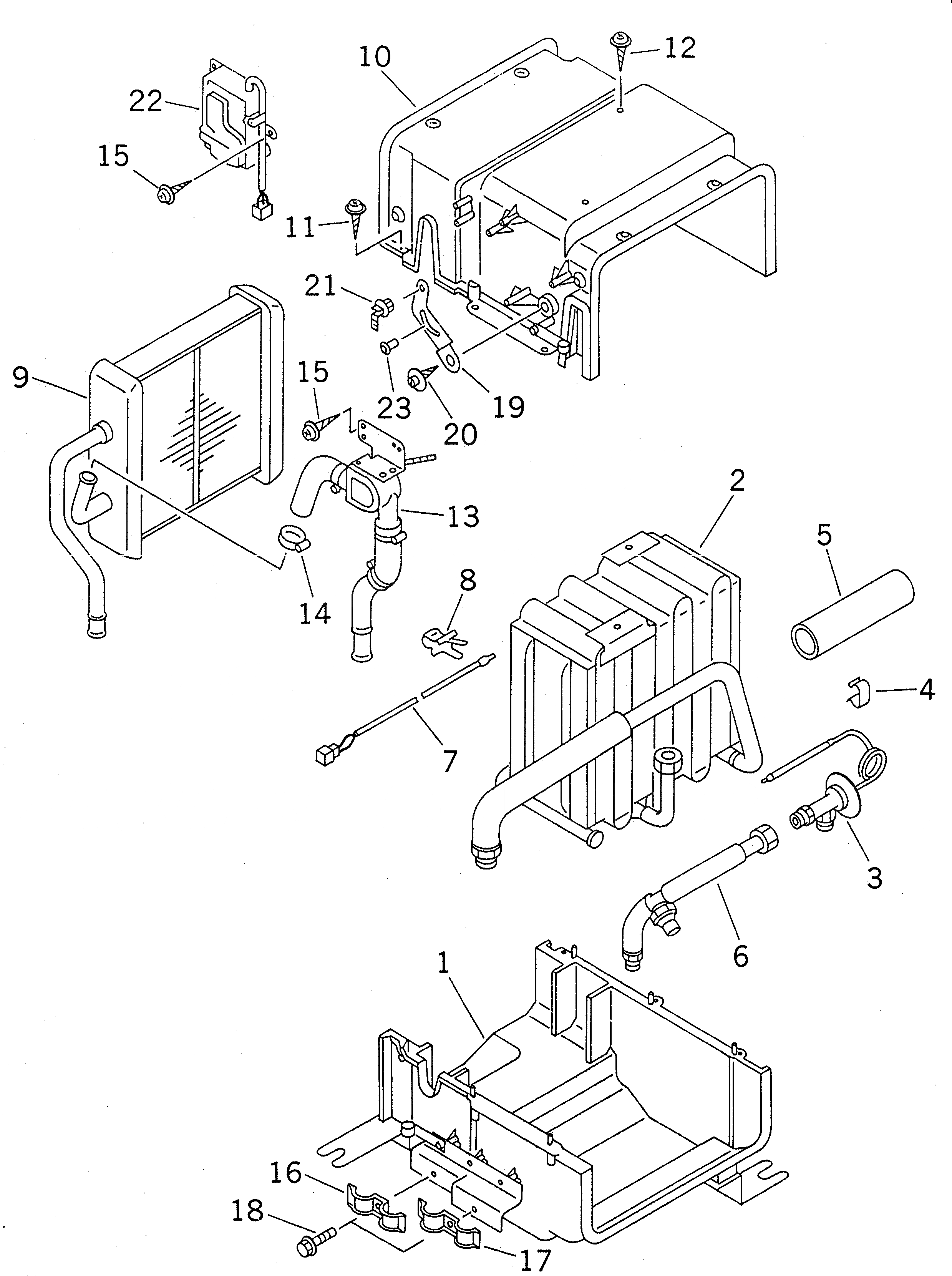

Запчасти Komatsu PC200-6S СЕРДЦЕВИНА БЛОК В СБОРЕ (С КОНДИЦИОНЕРОМ)(№8-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

ND445800-8250

CORE UNIT ASS'Y

|1

ND445800-1244

CORE UNIT ASS'Y

1

ND245420-3051

CASE

|1

ND245420-0942

CASE

2

ND447600-3910

EVAPORATOR

|2

ND447600-0680

EVAPORATOR

|2

ND447600-3090

EVAPORATOR

|2

ND447600-0690

EVAPORATOR

|2

ND949142-0020

O-RING

|2

ND246680-4340

CLAMP

|2

ND146690-2410

CLAMP

3

ND447500-0180

VALVE

|3

ND447500-0210

VALVE

4

ND145511-0040

HOLDER

5

ND146639-7250

PACKING

|5

ND146649-1170

PACKING

6

ND446170-9110

TUBE

|6

ND446170-2240

TUBE

|6

ND446890-5570

TUBE

|6

ND446190-3180

TUBE

|6

ND949142-0010

O-RING

|6

ND443440-0030

SWITCH

7

ND077500-2580

THERMISTOR

|7

ND077500-0370

THERMISTOR

8

ND146690-5360

CLAMP

9

ND116420-0790

RADIATOR

10

ND245420-3550

CASE

|10

ND245420-0952

CASE

11

ND949001-1730

SCREW

12

ND949001-1470

SCREW

13

ND113650-0703

ROTARY WATER VALVE

|13

ND113650-0702

ROTARY WATER VALVE

14

ND949351-0720

CLAMP

|14

ND92021-10251

CLAMP

15

ND90930-05161

SCREW

16

ND246780-4220

CLAMP

|16

ND246780-1540

CLAMP

17

ND246780-4000

CLAMP

|17

ND246780-1550

CLAMP

18

ND949001-2690

SCREW

|18

ND91570-05161

BOLT

19

ND017732-3712

LEVER

20

ND949008-0420

SCREW

21

17M-911-3290

CLAMP

22

ND063700-6280

MOTOR

|22

ND063700-4970

MOTOR

23

ND146625-2630

BUSHING
