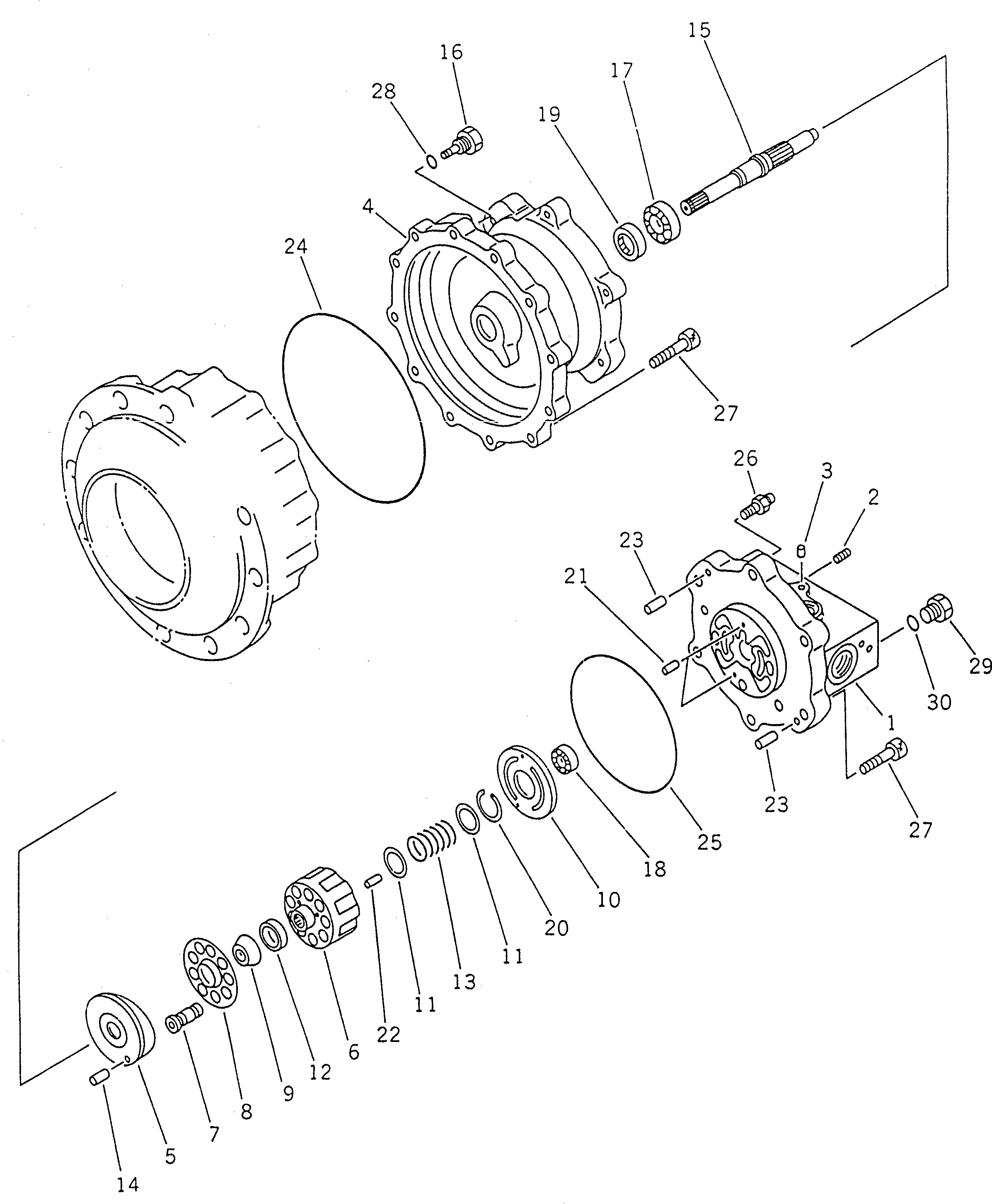

Запчасти Komatsu PC200-6S МОТОР ПОВОРОТА (ДЛЯ ROTATION РУКОЯТЬ) (МОТОР /) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

205-966-5903

SWING MOTOR ASS'Y

|1

TZ907S200001-A

MOTOR ASS'Y

|1

TZ902S2101-03

REAR FLANGE KIT

1

TZ902S2001-03

FLANGE

2

TZ501S2033-00

ORIFICE

3

TZMB700-060

PLUG

4

TZ902S2002-01

CASE

5

TZ850A200301-A

PLATE,SWASH

6

TZ860A2004-00

BLOCK,CYLINDER

|7

TZ860A2105-01

PISTON KIT

7

PISTON SHOE ASS'Y

8

TZ850A2007-01

PLATE

9

TZ800A2008-00

BALL,THRUST

10

TZ800A2009-01

PLATE,TIMING

11

TZ907S2010-00

WASHER

12

TZ850A2011-01

WASHER KIT

13

TZ880A2014-01

SPRING

14

TZ800A2017-00

PIN

15

TZ900S2018-00

SHAFT

16

TZ501S2019-00

GAUGE,OIL

17

06000-06204

BEARING,BALL

18

06000-06202

BEARING,BALL

19

TZBI-20-40-11

SEAL,OIL (KIT)

20

TZIRTW-40

RING,SNAP

21

TZJB1354-4-10

PIN

22

TZJB150625-138

PIN

23

TZJB1354-8-25

PIN

24

TZJW1516-G49-9

O-RING (KIT)

25

TZJW1516-G40-9

O-RING (KIT)

26

TZB-2101

BLEEDER

27

01252-31035

BOLT

28

07000-12014

O-RING (KIT)

29

07040-11409

PLUG

30

07000-12011

O-RING (KIT)
