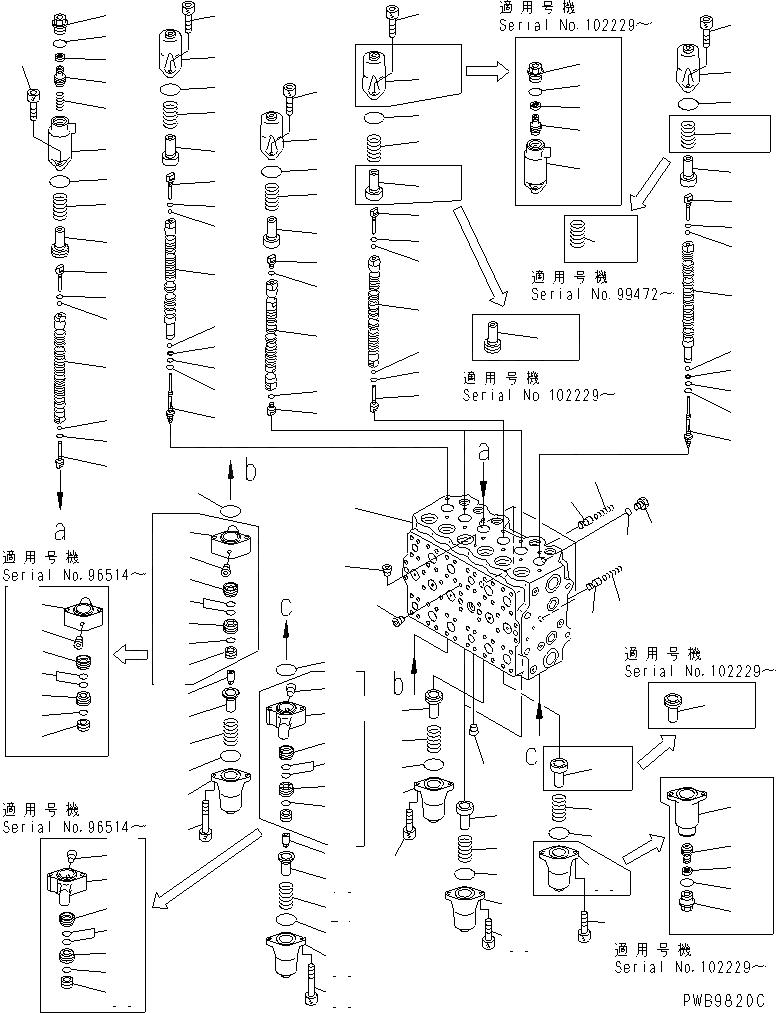

Запчасти Komatsu PC200-6S ОСНОВН. КЛАПАН (-АКТУАТОР) (/7) (ДЛЯ РУКОЯТИ ВРАЩЕНИЕ)(№9999-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-49-13902
VALVE ASS'Y
|1
723-49-13901
VALVE ASS'Y
|1
723-49-13900
VALVE ASS'Y
|1
723-49-13403
VALVE ASS'Y
|1
723-49-13402
VALVE ASS'Y
|1
723-49-13401
VALVE ASS'Y
|1
BODY SUB ASS'Y
|1
BODY SUB ASS'Y
|1
BODY SUB ASS'Y
|1
BODY SUB ASS'Y
|1
BODY SUB ASS'Y
|1
B0DY SUB ASS'Y
1
BLOCK,VALVE
2
SPOOL
3
SPOOL
|3
SPOOL
4
SPOOL
|4
SPOOL
|4
SPOOL
5
SPOOL
|5
SPOOL
6
SPOOL
|6
SPOOL
|6
SPOOL
7
723-46-15130
PLUG
8
723-46-15650
PLUG
9
723-46-15140
PLUG
10
07002-10823
O-RING
11
723-46-16171
PLUG
12
07002-11023
O-RING
13
07000-11005
O-RING
14
07001-01005
RING,BACK-UP
15
708-7T-16460
BALL
16
723-46-15120
RETAINER
|16
723-46-15120
RETAINER
17
723-46-15620
RETAINER
18
723-46-15880
RETAINER
19
723-46-16160
RETAINER
20
723-46-15690
RETAINER
21
723-46-14110
SPRING
22
723-46-14270
SPRING
|22
723-46-14170
SPRING
|22
723-46-14170
SPRING
23
723-46-14131
SPRING
|23
723-46-14131
SPRING
24
723-46-15610
CASE
25
723-46-14210
SPRING
26
723-46-14220
SPRING
27
723-46-15630
PLUG
|27
723-46-15630
PLUG
28
709-25-11390
O-RING
|28
709-25-11390
O-RING
29
723-46-15640
PISTON
30
SEAL
|30
SEAL
31
723-46-15770
CASE
32
723-46-15670
PISTON
33
723-46-15111
CASE
|33
723-46-15110
CASE
|33
723-46-15110
CASE
34
07430-71380
O-RING
35
01252-60820
BOLT
36
01252-60860
BOLT
37
723-46-16110
CASE
38
723-46-16120
PISTON
39
723-46-16130
PISTON
40
723-46-16140
PISTON
41
723-46-16152
PISTON
42
723-46-16180
SEAL
43
702-16-54490
SCREW
44
723-46-16190
NUT
45
PLUG
46
723-46-15150
VALVE
47
723-46-14150
SPRING
48
708-8H-11530
PLUG
49
07002-11423
O-RING
|50
723-46-00710
CASE SUB ASS'Y
50
CASE
51
PISTON
52
PISTON
53
SEAL
54
SCREW
|55
723-46-00720
CASE SUB ASS'Y
55
CASE
56
PISTON
57
PISTON
58
PISTON
59
SEAL
60
SCREW
Выбрано товаров: 89
