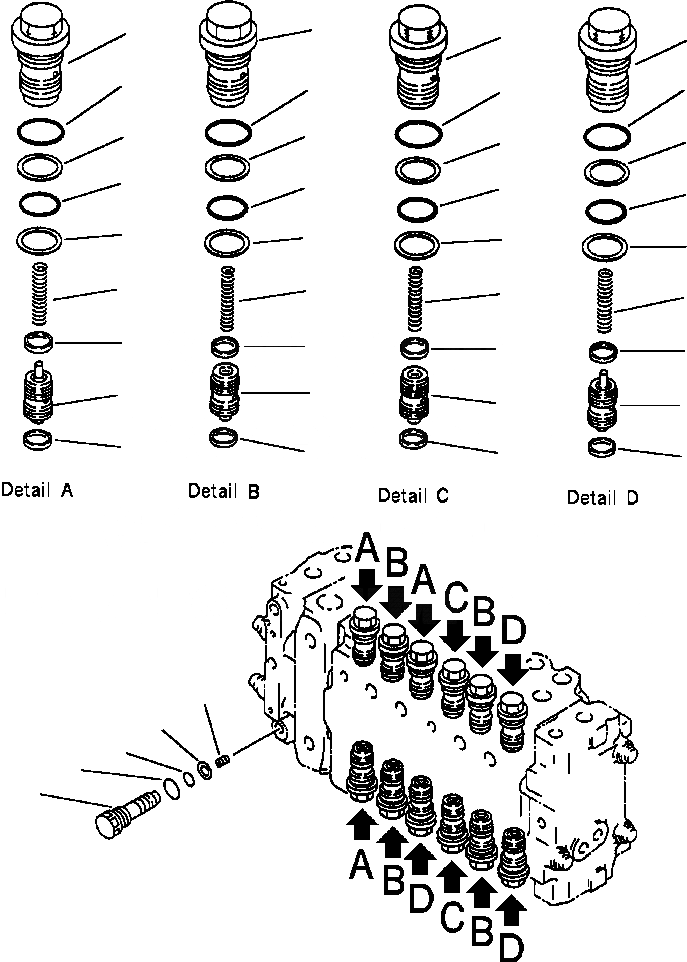

Запчасти Komatsu PC200-6L FIG NO. H- ОСНОВН. КЛАПАН ( АКТУАТОР) (/) PRESSURE COMPENSATION КЛАПАН PC- заводской номер A8 THRU A87; PCLC- заводской номер A8 ГИДРАВЛИКА

|$1

723-46-40100

VALVE ASSEMBLY

1

NSS

SLEEVE

2

NSS

PISTON SUB

3

723-46-41920

SPRING

4

NSS

SEAL

5

700-93-11320

O-RING

6

700-93-11330

RING

7

07002-13634

O-RING

|$9

723-46-40300

VALVE ASSEMBLY

8

NSS

SLEEVE

9

NSS

PISTON

10

723-46-41920

SPRING

11

NSS

SEAL

12

700-93-11320

O-RING

13

700-93-11330

RING

14

07002-13634

O-RING

|$17

723-46-40200

VALVE ASSEMBLY

15

NSS

SLEEVE

16

NSS

PISTON

17

723-46-41920

SPRING

18

NSS

SEAL

19

700-93-11320

O-RING

20

700-93-11330

RING

21

07002-13634

O-RING

|$25

723-46-41100

VALVE ASSEMBLY

22

NSS

SLEEVE

23

NSS

PISTON SUB ASSEMBLY

24

723-46-41920

SPRING

25

NSS

SEAL

26

700-93-11320

O-RING

27

700-93-11330

RING

28

07002-13634

O-RING

|$33

723-46-15100

PLUG ASSEMBLY

29

NSS

PLUG

30

NSS

SCREW

31

07002-11423

O-RING

32

07000-12010

O-RING

33

07001-02010

RING
