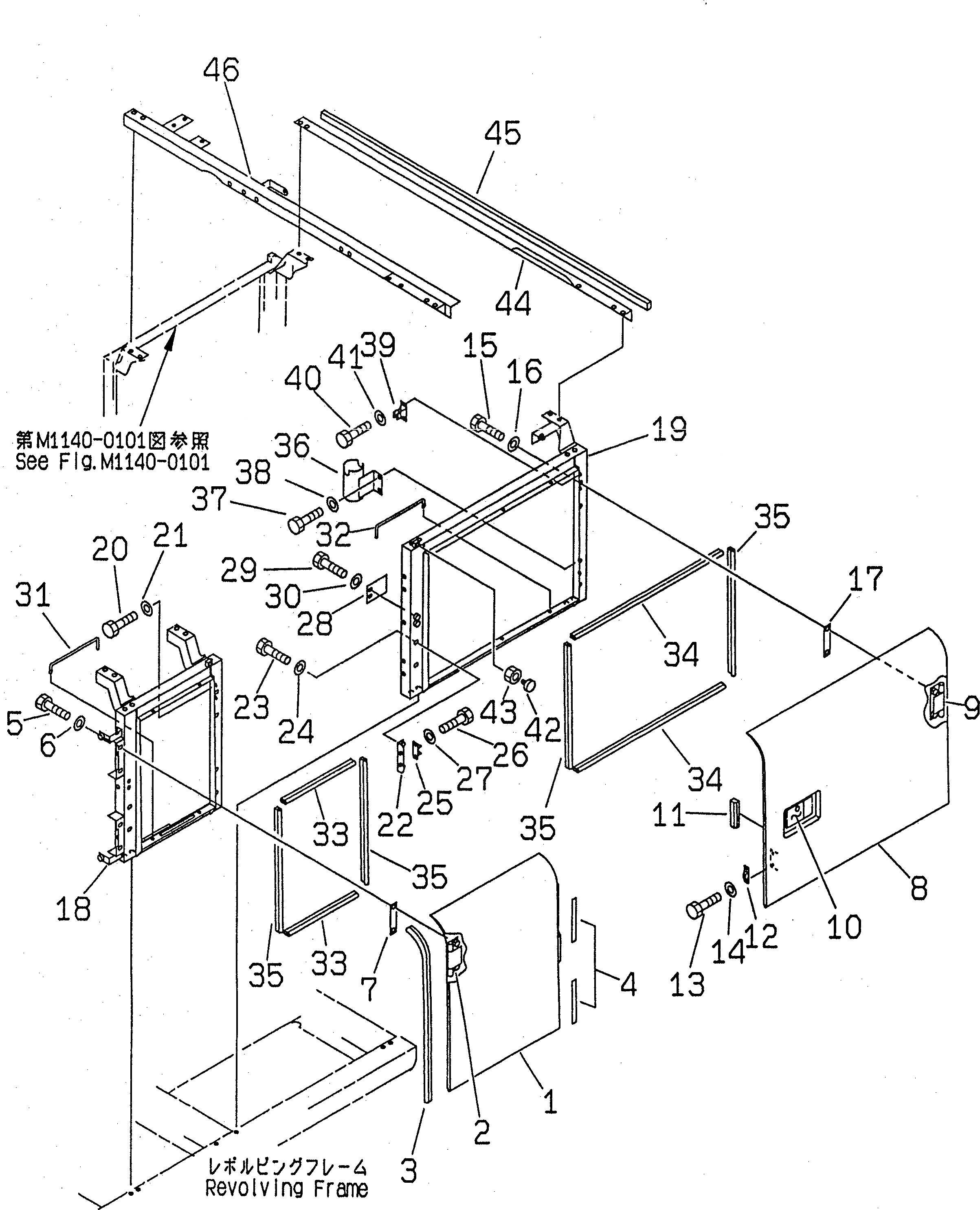

Запчасти Komatsu PC200-6J ЛЕВ. ДВЕРЬ (ДВЕРЬ) (КАБИНА)(№8-899) ЧАСТИ КОРПУСА

1

20Y-54-28113

COVER

2

20Y-54-28161

HINGE (WELDED)

3

20Y-54-28270

SEAL

4

20Y-54-28281

SHEET

5

01010-51235

BOLT

|5

01010-51220

BOLT

6

01643-31232

WASHER

7

20Y-54-28290

PLATE

8

20Y-54-28341

COVER

9

20Y-54-28161

HINGE (WELDED)

10

198-54-41982

LOCK ASS'Y

11

20Y-54-28191

SHEET

12

205-54-53550

DOVE TAIL

13

01010-50612

BOLT

14

01643-30623

WASHER

15

01010-51235

BOLT

16

01643-31232

WASHER

17

20Y-54-28290

PLATE

18

20Y-54-29113

FRAME

19

20Y-54-29223

FRAME

20

01010-51230

BOLT

21

01643-31232

WASHER

22

20Y-54-28170

BRACKET

23

01010-51230

BOLT

24

01643-31232

WASHER

25

205-54-51970

DOVE TAIL

26

01010-50616

BOLT

27

01643-30623

WASHER

28

20Y-54-28181

PLATE

29

01010-51230

BOLT

30

01643-31232

WASHER

31

20Y-54-29232

BAR

32

20Y-54-29232

BAR

33

20Y-54-29241

SEAL

34

20Y-54-29251

SEAL

35

20Y-54-29261

SEAL

36

20Y-54-27341

BRACKET

|36

20Y-54-27340

BRACKET

37

01010-51230

BOLT

38

01643-31232

WASHER

39

20Y-54-12920

CLAMP

40

01010-51025

BOLT

41

01643-31032

WASHER

42

203-54-56710

STOPPER

43

01580-11008

NUT

44

20Y-54-29133

FRAME

45

20Y-54-29271

SHEET

46

20Y-54-29143

FRAME
