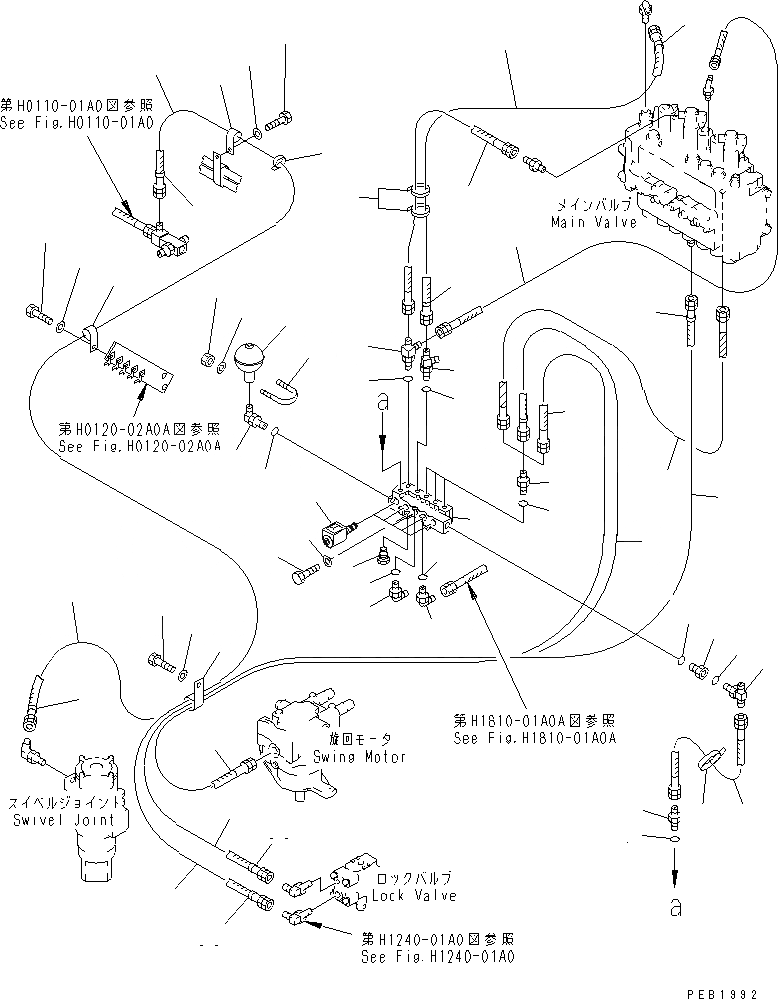

Запчасти Komatsu PC200-6J СОЛЕНОИДНЫЙ КЛАПАН(№88-98) ГИДРАВЛИКА

|1

20Y-60-22113

VALVE ASS'Y

1

20Y-60-22122

SOLENOID VALVE

2

20Y-60-22130

BLOCK

3

20Y-60-22140

CHECK VALVE

4

07230-20210

UNION

5

208-62-17550

TEE

6

203-62-62810

NIPPLE

7

07002-01423

O-RING

8

07235-10315

ELBOW

9

07002-02034

O-RING

10

07235-10315

ELBOW

11

07002-02034

O-RING

12

20Y-62-21940

FILTER ASS'Y

13

07002-02034

O-RING

14

203-62-58440

TEE

15

07002-01423

O-RING

16

203-62-52310

HOSE¤ 700MM

17

08034-00519

BAND

18

01010-51095

BOLT

19

01643-31032

WASHER

20

20Y-60-11410

ACCUMULATOR

21

20Y-62-22310

ELBOW

22

07002-02034

O-RING

23

07283-23450

CLIP

24

01599-01011

NUT

25

01643-31032

WASHER

26

08034-00536

BAND

27

203-62-52310

HOSE¤ 700MM

28

20Y-62-22860

BAND¤ BROWN

29

203-62-52260

HOSE¤ 1300MM

30

20Y-62-22810

BAND¤ YELLOW

31

203-62-52290

HOSE¤ 1100MM

32

20Y-62-22951

HOSE

33

20Y-62-22790

BAND¤ RED

34

20Y-62-22990

HOSE¤ 2150MM

35

20Y-62-22820

BAND¤ BLUE

36

20Y-62-22981

HOSE¤ 600MM

37

20Y-62-21930

HOSE¤ 980MM

38

04434-52712

CLIP

39

01010-51230

BOLT

40

01643-31232

WASHER

41

04434-51512

CLIP

42

01010-51225

BOLT

43

01643-31232

WASHER

44

08034-00519

BAND
