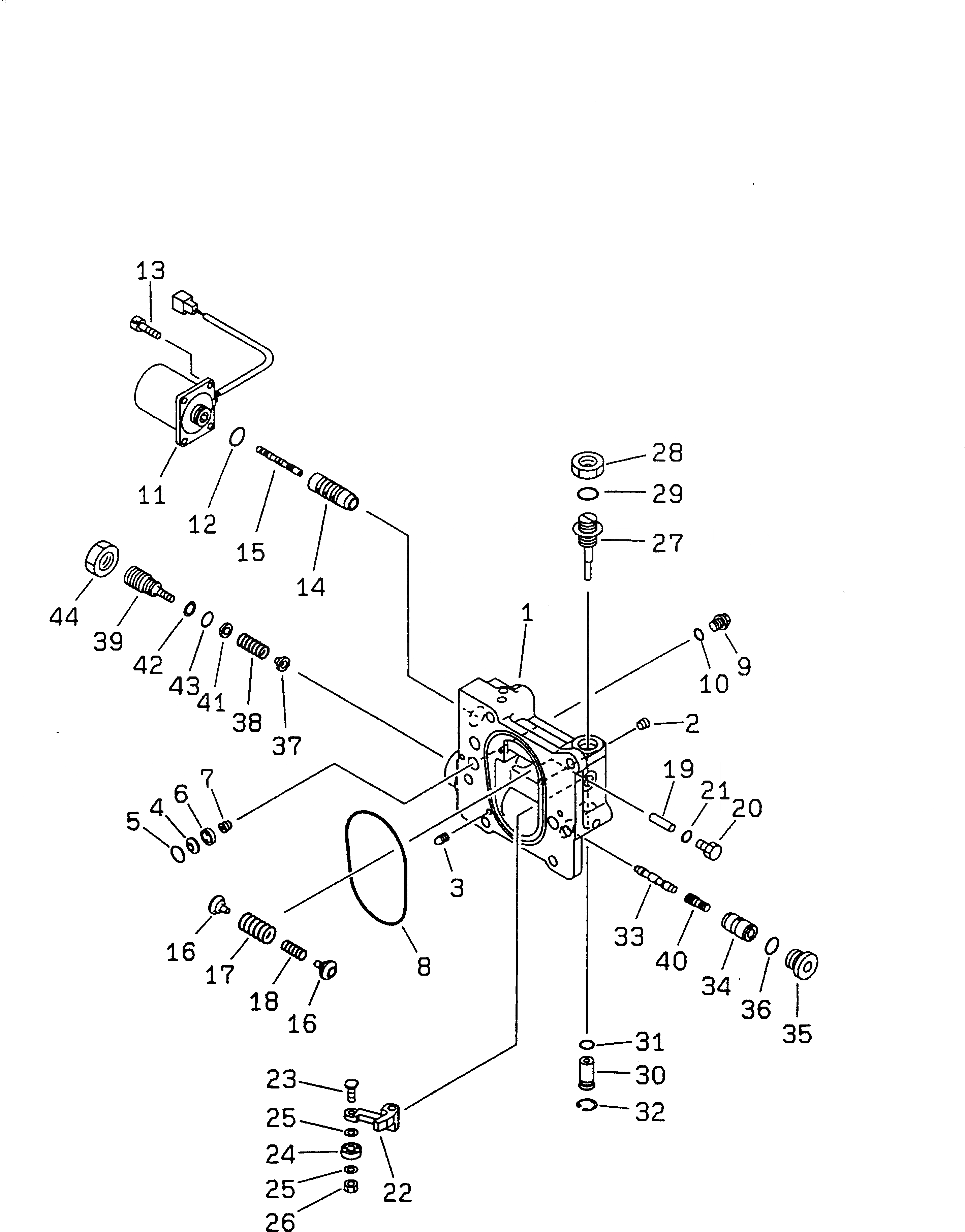

Запчасти Komatsu PC200-6H ОСНОВН. НАСОС (9/9)(№8-9998) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$5

708-2L-00151

PUMP ASS'Y

|$6

708-2L-00056

PUMP ASS'Y

|$7

708-2L-00054

PUMP ASS'Y

|$8

708-2L-00053

PUMP ASS'Y

|$9

708-2L-00052

PUMP ASS'Y

|$11

708-2L-03234

SERVO VALVE ASS'Y

|$12

708-2L-03232

SERVO VALVE ASS'Y

|$13

708-2L-03231

SERVO VALVE ASS'Y

|$14

708-2L-03802

BODY ASS'Y

1

BODY

1

BODY

2

PLUG

3

EXPANDER

4

708-2L-25480

FILTER

5

708-2L-25490

O-RING

6

708-2L-25631

SPACER

7

708-2L-25650

ORIFICE

8

07000-02110

O-RING

9

708-8E-16150

PLUG

10

07002-11023

O-RING

11

708-2L-25211

SOLENOID ASS'Y

12

07000-02016

O-RING

13

01252-60612

BOLT

14

708-2L-25721

SLEEVE

14

708-2L-25720

SLEEVE

15

708-2L-25740

SPOOL

15

708-2L-25232

SPOOL

16

708-2L-25291

SEAT

17

708-2L-25251

SPRING

18

708-2L-25261

SPRING

19

708-2L-25281

PISTON

20

07040-11007

PLUG

21

07002-01023

O-RING

22

708-2L-25373

LEVER

23

708-2L-25311

PIN

24

708-2L-25330

BEARING

25

708-2L-25321

WASHER

26

01580-00605

NUT

27

708-2L-25340

PLUG

28

01583-11811

NUT

29

07002-01823

O-RING

30

708-2L-25382

PLUG

31

07000-02010

O-RING

32

04065-01610

RING

33

708-2L-25731

SPOOL

33

708-2L-25730

SPOOL

34

708-2L-25521

SLEEVE

35

708-2L-25531

PLUG

36

07002-12034

O-RING

37

708-2L-25542

SEAT

38

708-2L-25551

SPRING

39

708-2L-25621

PLUG

40

708-2L-25611

PISTON

41

708-2L-25640

SEAT

42

07001-02012

RING,BACK-UP

43

07000-12012

O-RING

44

01583-12012

NUT
