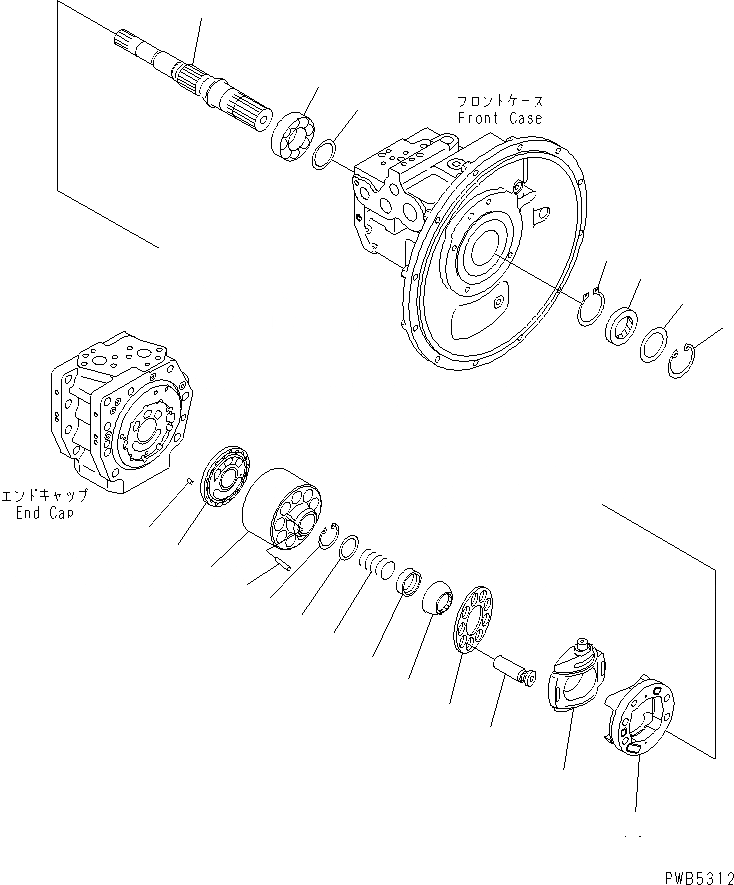

Запчасти Komatsu PC200-6H ОСНОВН. НАСОС (/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$4

708-2L-00461

PUMP ASS'Y

|$5

708-2L-00460

PUMP ASS'Y

|$6

708-2L-00412

PUMP ASS'Y

|$7

708-2L-00411

PUMP ASS'Y

|$9

708-2L-01442

PUMP SUB ASS'Y

|$10

708-2L-01441

PUMP SUB ASS'Y

|$11

708-2L-01440

PUMP SUB ASS'Y

1

708-2L-32110

SHAFT,FRONT

2

708-2L-32150

BEARING

3

708-2E-05040

WASHER KIT

3

WASHER, 3.1MM

3

WASHER, 3.0MM

3

WASHER, 2.9MM

3

WASHER, 2.8MM

4

708-25-12790

RING,SNAP

5

708-25-52861

SEAL,OIL

6

708-2L-22160

SPACER

7

04065-06825

RING,SNAP

|$23

708-2L-04141

BLOCK ASS'Y,FRONT

8

BLOCK,CYLINDER

9

PLATE,VALVE

10

720-68-19610

PIN

11

04065-04818

RING,SNAP

12

708-2L-23131

SEAT

13

708-2L-33160

SPRING

14

708-7L-13140

SEAT

15

708-2L-23351

GUIDE,RETAINER

16

708-2L-23360

PIN

17

708-2L-33340

RETAINER,SHOE

18

708-2L-33310

PISTON SUB ASS'Y

|$35

708-2L-04361

CRADLE ASS'Y,FRONT

19

CRADLE

19

CRADLE

20

CAM,ROCKER
