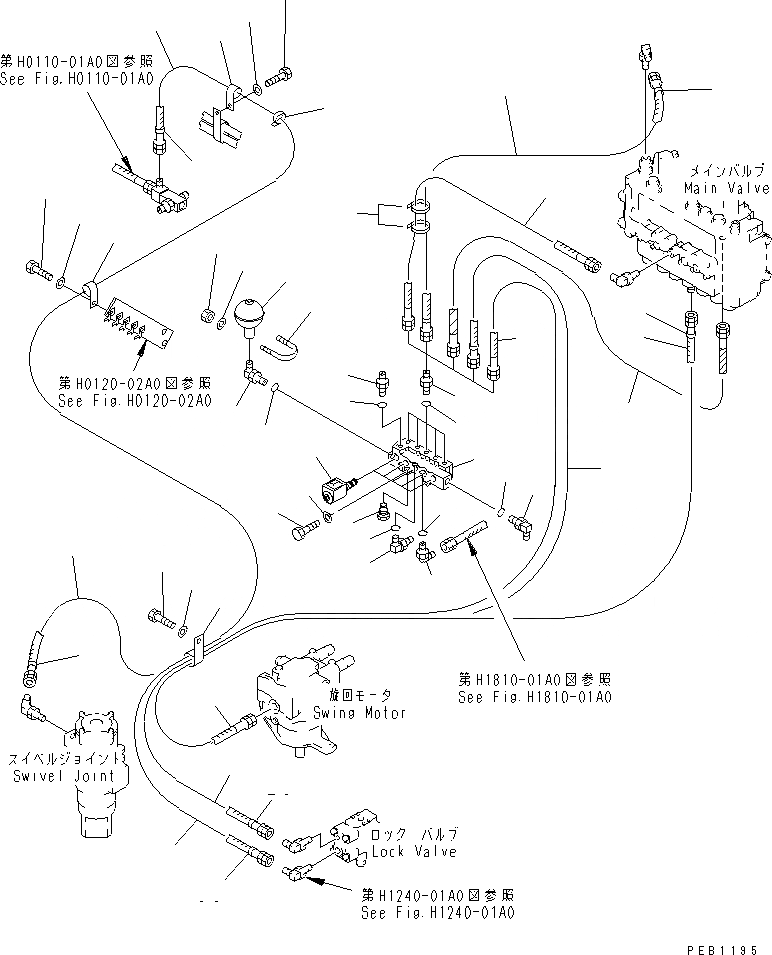

Запчасти Komatsu PC200-6H СОЛЕНОИДНЫЙ КЛАПАН(№898-899) ГИДРАВЛИКА

|$2

20Y-60-22113

VALVE ASS'Y

1

20Y-60-22122

SOLENOID VALVE

2

20Y-60-22130

BLOCK

3

20Y-60-22140

CHECK VALVE

4

205-62-55270

NIPPLE

5

07002-01423

O-RING

6

07235-10315

ELBOW

7

07002-02034

O-RING

8

07235-10315

ELBOW

9

07002-02034

O-RING

10

20Y-62-22330

ELBOW

11

07002-02034

O-RING

12

01010-51095

BOLT

13

01643-31032

WASHER

14

20Y-60-11410

ACCUMULATOR

15

20Y-62-22310

ELBOW

16

07002-02034

O-RING

17

07283-23450

CLIP

18

01599-01011

NUT

19

01643-31032

WASHER

20

08034-00536

BAND

21

20Y-62-23230

HOSE

22

20Y-62-23240

HOSE

23

20Y-62-22860

BAND, BROWN

24

20Y-62-22930

HOSE

25

20Y-62-22810

BAND, YELLOW

26

20Y-62-22940

HOSE, 1100MM

27

20Y-62-22950

HOSE

28

20Y-62-22790

BAND, RED

29

20Y-62-22990

HOSE, 2150MM

30

20Y-62-22820

BAND, BLUE

31

20Y-62-22980

HOSE, 600MM

32

04434-52712

CLIP

33

01010-51230

BOLT

34

01643-31232

WASHER

35

04434-51512

CLIP

36

01010-51225

BOLT

37

01643-31232

WASHER

38

08034-00519

BAND
