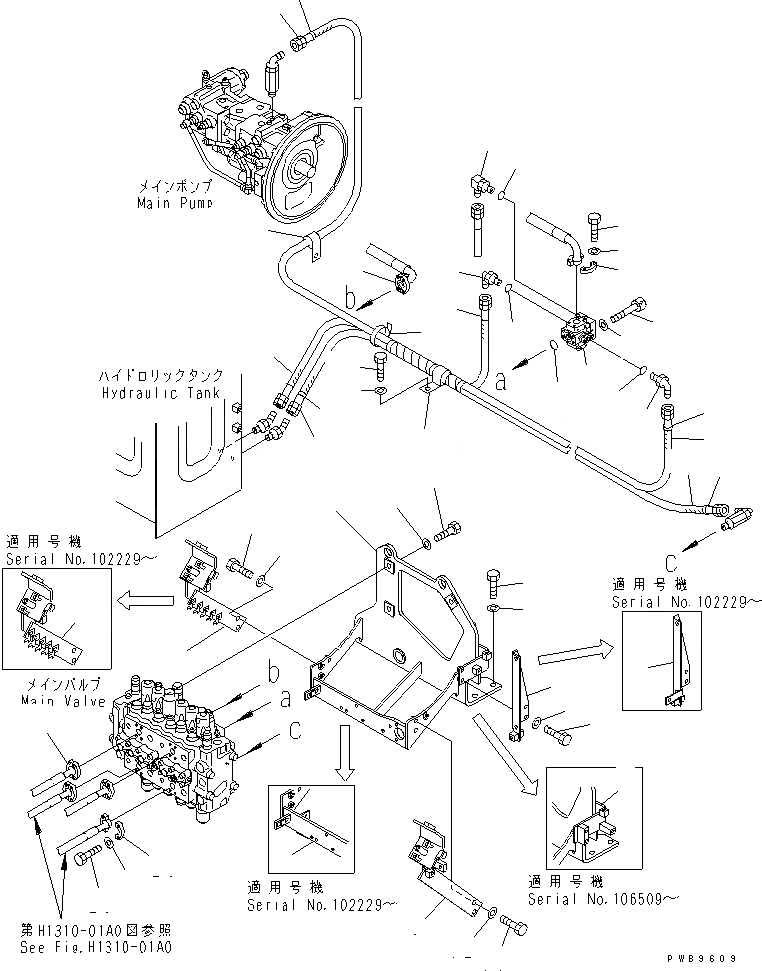

Запчасти Komatsu PC200-6H ОСНОВН. КЛАПАН (КОРПУС КЛАПАНА)(№9-) ГИДРАВЛИКА

1

20Y-62-27413

BRACKET

1

20Y-62-27412

BRACKET

1

20Y-62-27411

BRACKET

2

01010-81655

BOLT

3

01643-31645

WASHER

4

01010-81650

BOLT

5

01643-31645

WASHER

6

20Y-62-27192

BRACKET

6

20Y-62-27191

BRACKET

7

01010-81230

BOLT

8

01643-31232

WASHER

9

20Y-62-25311

BRACKET

10

20Y-62-25323

BRACKET

10

20Y-62-25322

BRACKET

11

01010-81235

BOLT

12

01643-31232

WASHER

13

01010-81235

BOLT

14

01643-31232

WASHER

15

702-21-09147

VALVE ASS'Y

15

702-21-09146

VALVE ASS'Y

15

702-21-09145

VALVE ASS'Y

15

702-21-09143

VALVE ASS'Y

16

21T-09-11460

O-RING

17

708-27-12560

BOLT

18

01643-51032

WASHER

19

07371-31049

FLANGE

20

07372-21035

BOLT

21

01643-51032

WASHER

22

21Y-62-17810

ELBOW

23

07002-12434

O-RING

24

07235-10210

ELBOW

25

07002-11423

O-RING

26

07235-10210

ELBOW

27

07002-11423

O-RING

28

07371-31049

FLANGE

29

07372-21035

BOLT

30

01643-51032

WASHER

31

203-62-52280

HOSE, 900MM

32

20Y-62-22881

HOSE

33

20Y-62-22820

BAND, BLUE

34

07096-00221

HOSE

35

20Y-62-22810

BAND, YELLOW

36

04434-52712

CLIP

37

01010-81225

BOLT

38

01643-31232

WASHER

39

08034-00519

BAND

40

04434-51512

CLIP
