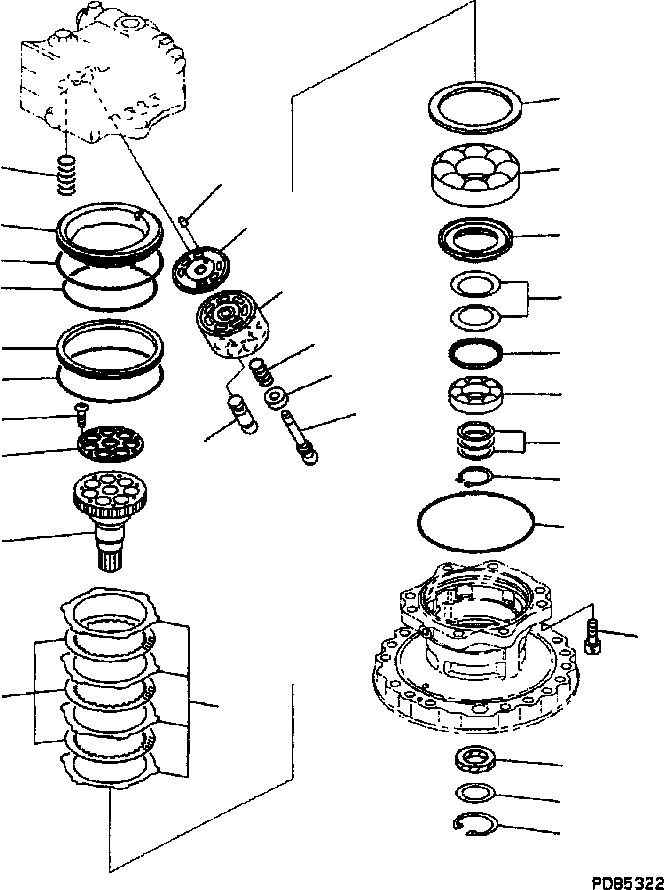

Запчасти Komatsu PC200-6B МОТОР ПОВОРОТА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-75-01170

SWING MOTOR ASS’Y

|1

706-75-03330

MOTOR SUB ASS’Y

1

565-14-22440

O-RING

2

01252-61445

BOLT

3

706-75-43660

SHAFT, DRIVE

4

706-75-42880

BEARING

5

706-75-43810

SPACER

6

706-7E-11260

SPRING

7

706-7E-11270

SEAT

8

706-76-40890

BEARING

9

706-75-05040

SPACER KIT

|9

SPACER, 3.10MM

|9

SPACER, 3.40MM

|9

SPACER, 3.70MM

10

04064-04518

RING, SNAP

11

706-7E-11280

SEAL, OIL

12

706-75-43720

SPACER

13

04065-06220

RING

14

706-75-43190

BLOCK, CYLINDER

15

706-75-43741

PLATE, VALVE

16

706-75-43750

PIN, DOWEL

17

706-75-43120

SHAFT, CENTER

18

706-75-43130

RING, CENTER

19

706-75-41110

SPRING

|19

706-75-05020

RETAINER KIT

20

RETAINER

21

SCREW

22

706-75-43160

PISTON SUB ASS’Y

23

706-75-92130

PLATE

24

706-75-92340

PLATE

25

706-75-92350

DISK

26

706-75-92380

PISTON, BRAKE

27

706-75-92390

RING, BRAKE

28

07000-12145

O-RING

29

706-75-92310

O-RING

30

706-75-92360

SPRING
