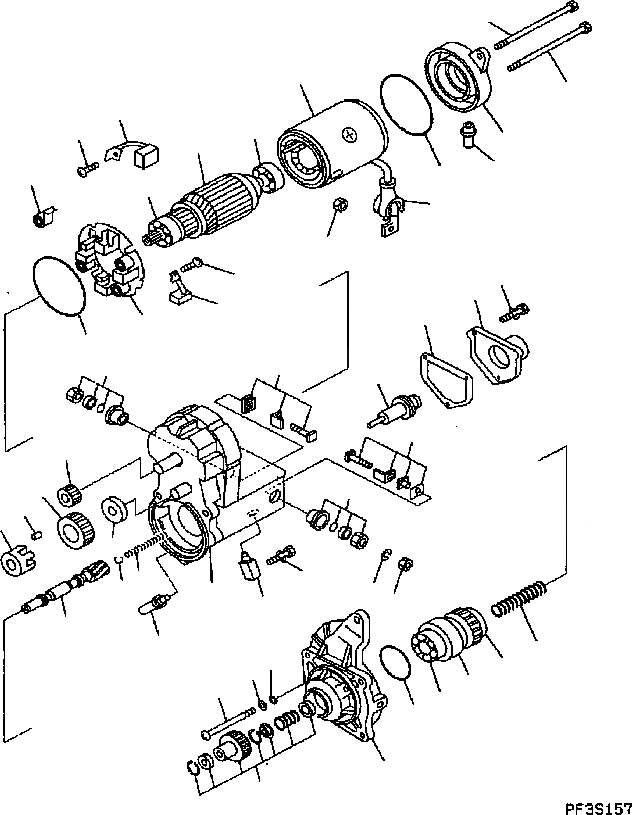

Запчасти Komatsu PC200-6B СТАРТЕР - . KW - ВНУТР. ЧАСТИ КОМПОНЕНТЫ ДВИГАТЕЛЯ

|1

600-863-5110

STARTING MOTOR A., (5.5KW)

1

ND028100-5410

YOKE ASS’Y

2

ND028200-5250

ARMATURE ASS’Y

3

ND949100-3161

BEARING, BALL

|3

ND949100-5290

BEARING, BALL

4

ND949100-3540

BEARING, BALL

|5

ND028300-6551

CLUTCH ASS’Y

5

ND028099-3270

STARTER KIT

6

ND028300-6751

CLUTCH ASS’Y

7

ND949100-4500

BEARING, BALL, FRONT

8

ND949100-1920

BEARING, BALL, REAR

9

ND949170-4040

SPRING

10

ND028381-0071

SHAFT

11

ND128401-5621

HOUSING

12

ND153400-2600

SWITCH ASS’Y, MAGNETIC

13

ND028099-5090

KIT, STARTER

14

ND028099-5100

KIT, STARTER

15

ND053660-0443

PLUNGER

16

ND053404-0240

GASKET

17

ND053505-0290

COVER, SOLENOID

18

ND053480-7560

BOLT ASS’Y, TERMINAL

19

ND949047-4440

BOLT

20

ND028065-0250

BUSHING, DRAIN

21

ND028510-0880

HOLDER ASS’Y, BRUSH

22

ND028520-0011

SPRING, BRUSH

23

ND028501-7711

FRAME

24

ND949120-0240

BALL, STEEL

25

ND949170-4070

SPRING

26

ND028371-3210

PINION, STARTER

27

ND028306-0070

ROLLER, CLUTCH

28

ND028063-0030

RETAINER

29

ND028062-0130

CAP

30

ND949042-3680

BOLT

31

ND90801-10050

O-RING

32

ND949042-3690

BOLT

33

ND949006-4720

SCREW

34

ND949056-4480

NUT

35

ND028327-0171

RETAINER, SNAP

36

ND90258-10001

WASHER, SPRING

37

ND028901-0361

SEAL

38

ND028371-3200

PINION

39

ND949007-6530

SCREW

40

ND028530-1090

BRUSH ASS’Y

41

ND028530-1100

BRUSH ASS’Y

42

ND949007-6850

SCREW

43

ND028062-5790

COVER

44

ND90170-10061

NUT

45

ND90801-20470

O-RING

46

ND90200-06241

WASHER
