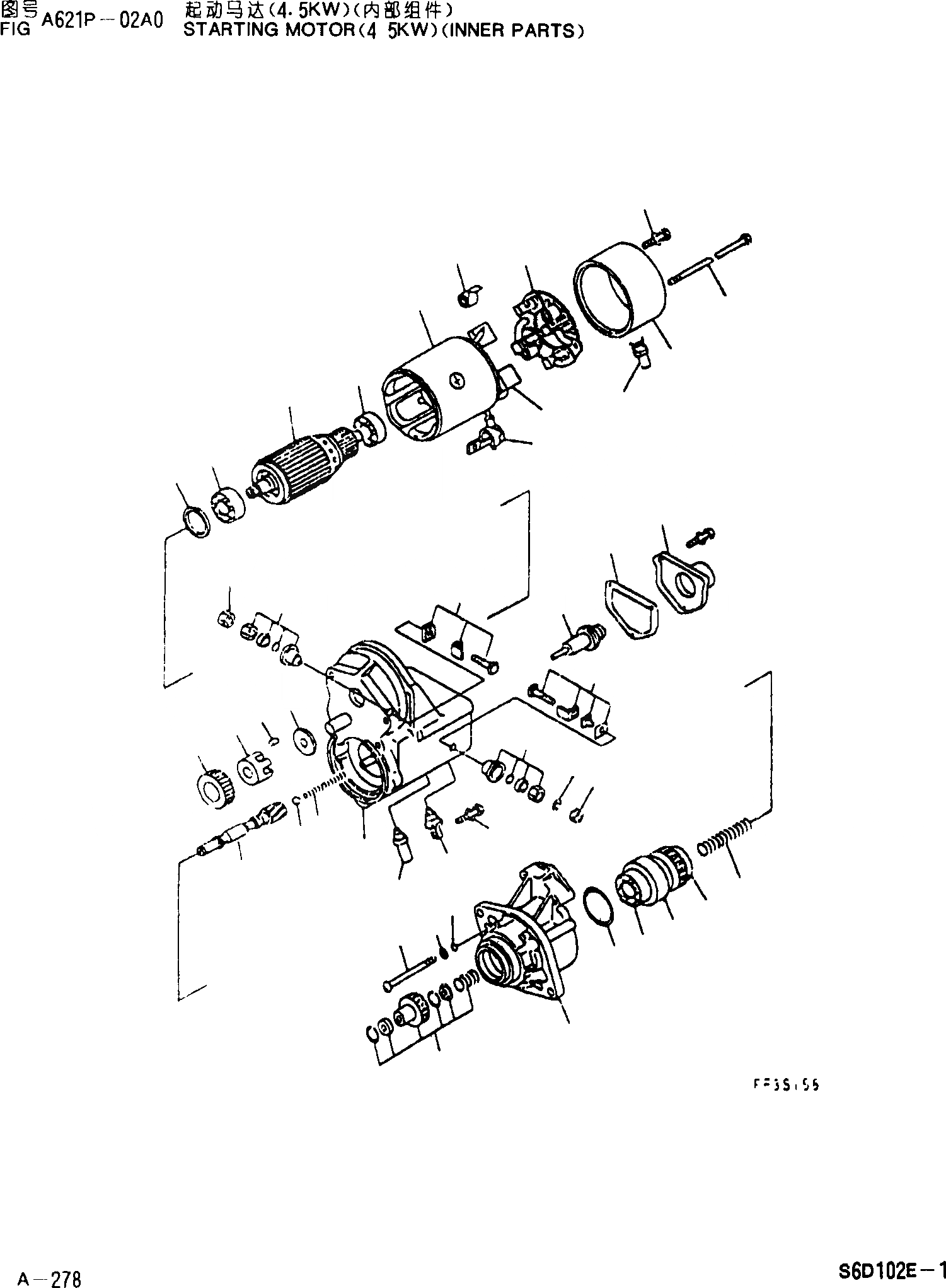

Запчасти Komatsu PC200-6 СТАРТЕР(.KW)(ВНУТР. ЧАСТИ) ДВИГАТЕЛЬ SDE-C ДВИГАТЕЛЬ NO. 8 И UP]

|$1

600-863-4110

STARTINGMOTORASSEMBLY

1

ND028100-2881

YOKEASSEMBLY

2

ND028062-0130

CAP

3

ND028099-3570

STARTKIT

4

ND028200-1590

ARMATUERASSEMBLY

5

ND949100-1930

BEARINGBALL

6

ND949100-1750

BEARINGBALL

|$9

ND028300-6551

CLUTCHASSEMBLY

7

ND028099-3270

STARTKIT

8

ND028300-6751

CLUTCHASSEMBLY

9

ND949100-4500

BEARINGBALLFRON

10

ND949100-1920

BEARINGBALLREA

11

ND949170-4040

SPRING

12

ND028381-0071

SHAFT

13

ND228401-0631

HOUSINGASSEMBLY

14

ND153400-2410

MAGNEJICSWITCHASSEMBLY

15

ND028099-2790

STARTKIT

16

ND028099-3160

STARTKIT

17

ND053660-7170

PLUNGER

18

ND053404-0240

GASKET

19

ND053505-0290

COVER

20

ND053480-0110

BOLT

21

ND028065-0250

BUSHING

22

ND028510-0500

BRUSHHOLDERASSEMBLY

23

ND949173-0571

SPRING

24

ND028501-8090

FLAME

25

ND949120-0240

BALL

26

ND949170-4070

SPRING

27

ND028371-1500

PINION

28

ND028306-0070

ROLLER

29

ND028063-0030

RETAINER

30

ND028327-0171

RETAINER

31

ND949042-3741

BOLT

32

ND949020-0600

WASHERFELT

33

ND90801-10050

O-RING

34

ND949007-6530

SCREW

35

ND90170-10061

NUT

36

ND949056-4480

NUT

37

ND90258-10001

GASKET

38

ND949006-4720

SCREW

39

ND90200-06241

GASKET

40

ND028062-5790

COVER

41

ND949007-6850

SCREW

42

ND028901-5190

SEAL
