Запчасти Komatsu PC200-6 ЦИЛИНДР РУКОЯТИ Y [SERVICE KOT]

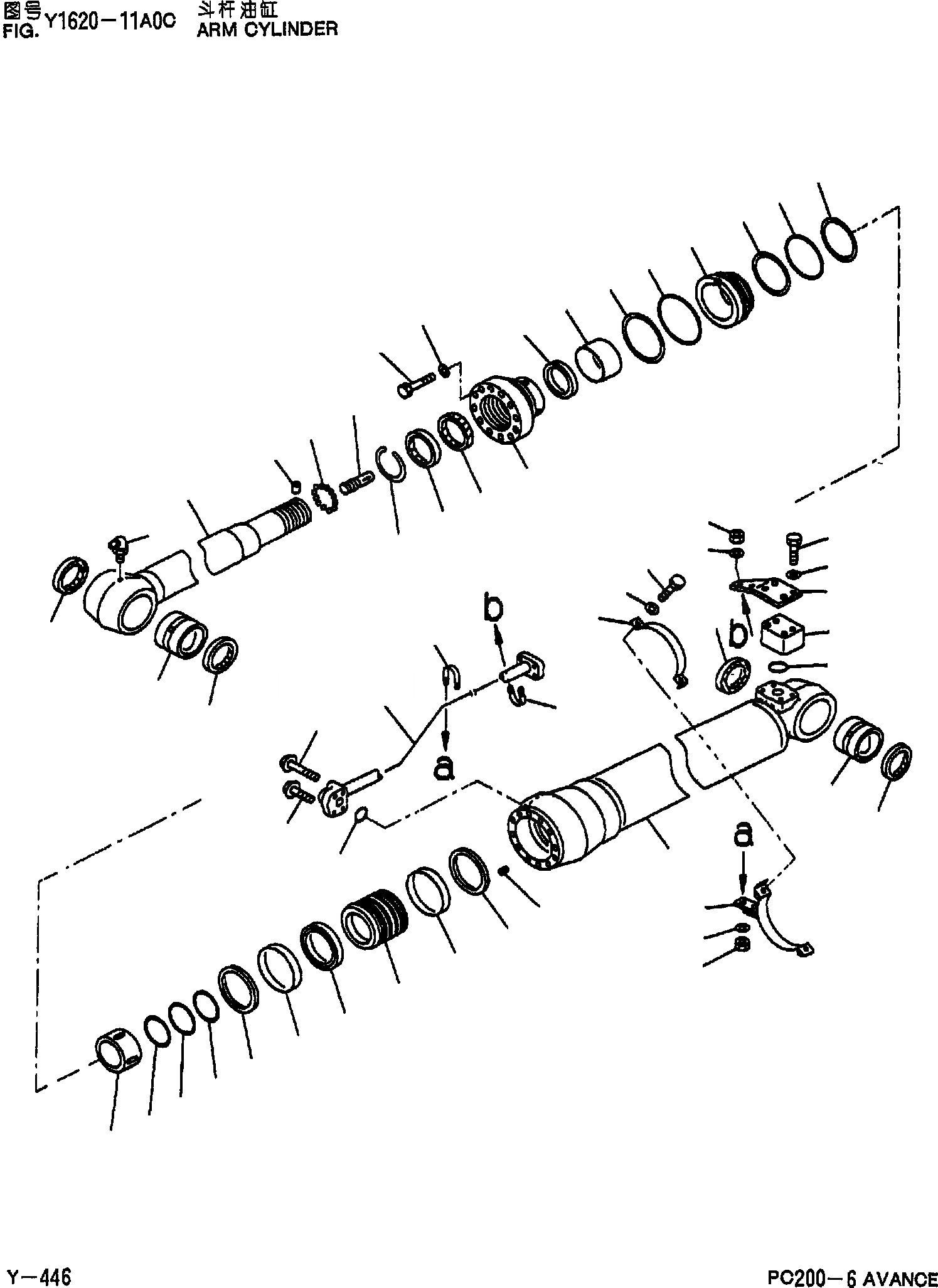

Схема запчастей Komatsu PC200-6 - ЦИЛИНДР РУКОЯТИ Y [SERVICE KOT]
3
2
3
32
30
24
4
29
28
23
13
14
12
8
11
10
6
7
9
5
43
43
33
34
22
18
17
15
16
17
18
21
20
21
19
1
2
3
38
45
44
39
41
40
44
45
35
36
42
31
37
3
25
26
27
26

Артикул

Название

Примечание

Количество

G1

205-63-X3820

ARMCYLINDERGROUP

|$2

205-63-03720

CYLNDERASS'Y

1

205-63-61141

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST(KIT)

4

205-63-61121

ROD,PISTON

5

707-27-13961

HEAD,CYLINDER

6

07179-13109

RING,SNAP

7

707-56-95510

SEAL,DUST(KIT)

8

707-52-90720

BUSHING

9

707-51-95030

PACKING,ROD(KIT)

10

07000-15125

O-RING(KIT)

11

707-35-91370

RING,BACK-UP(KIT)

12

707-51-95640

RING,BUFFER(KIT)

13

01010-81875

BOLT

14

707-41-11840

WASHER

15

707-36-13731

PISTON

16

707-44-13280

RING,PISTON(KIT)

17

707-39-13510

RING,WEAR(KIT)

18

707-44-13920

RING

19

707-71-61040

PLUNGER

20

07000-15085

O-RING(KIT)

21

707-35-90960

RING,BACK-UP(KIT)

22

01310-01216

SCREW

23

707-71-60230

PLUNGER

24

07020-00900

FITTINGGREASE

25

707-71-32770

COLLAR

26

707-35-91370

RING,BACK-UP(KIT)

27

07000-15125

O-RING(KIT)

28

04260-00635

BALL

29

707-71-91270

CAP

30

205-63-61171

TUBE

31

20D-62-17860

ELBOW

32

01435-01055

BOLT

33

01435-01040

BOLT

34

07000-13030

O-RING(KIT)

35

01010-81080

BOLT

36

01643-31032

WASHER

37

07000-13035

O-RING(KIT)

38

707-88-95341

BRACKET

39

707-88-95320

BAND

40

01010-81035

BOLT

41

01643-51032

WASHER

42

707-88-11560

PLATE

43

07283-22738

CLIP

44

01599-01011

NUT

45

01643-31032

WASHER

Выбрано товаров: 47
