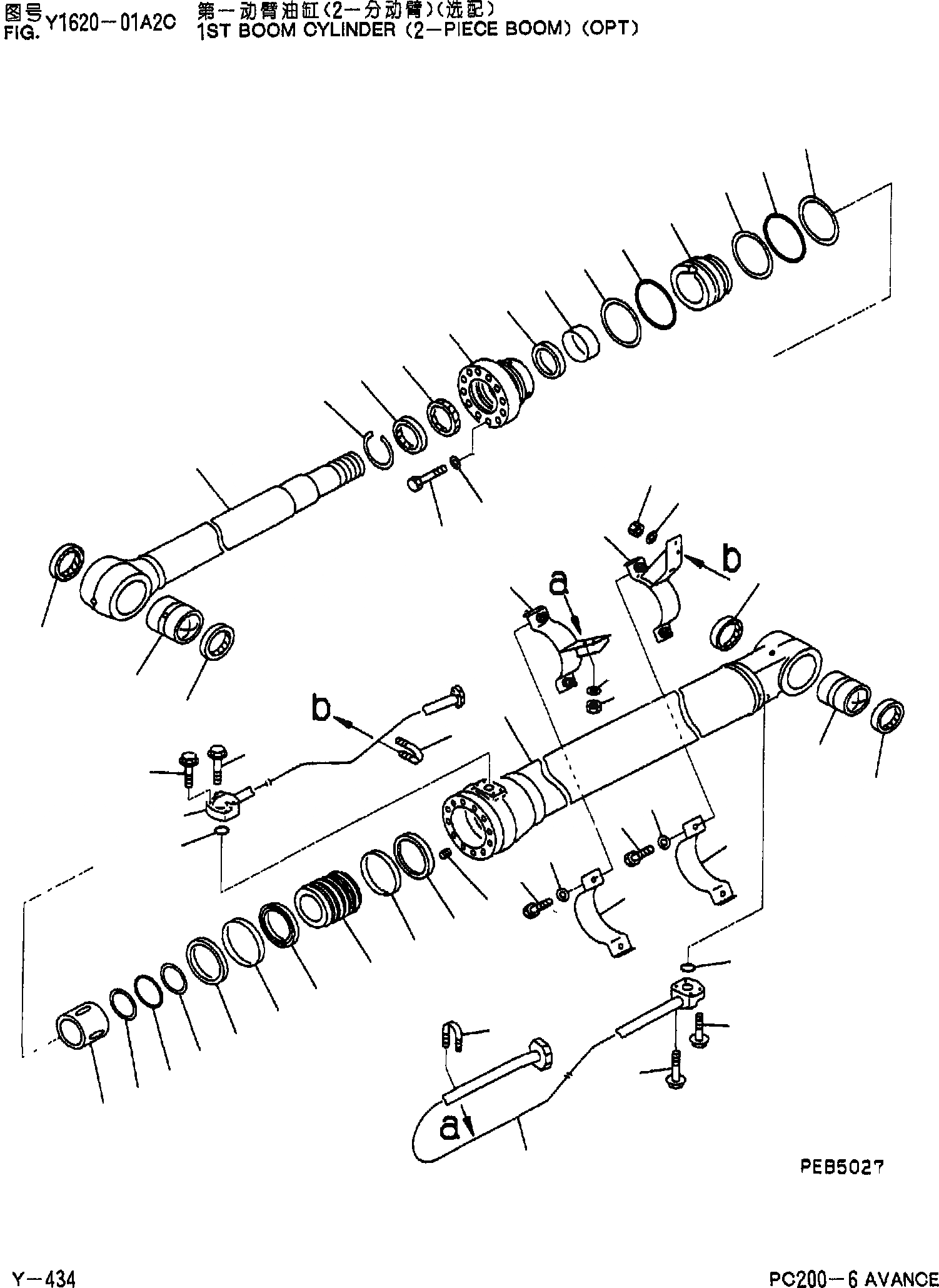

Запчасти Komatsu PC200-6 1-Я СТРЕЛА ЦИЛИНДР(2-СЕКЦИОНН. СТРЕЛА)(ОПЦИОНН.) Y [SERVICE KOT]

G1

205-63-X3300

BOOMCYLINDER GROUP,L.H

G2

205-63-X3310

BOOMCYLINDER GROUP,R.H

|$3

205-63-03300

CYLNDERASS'Y

1

20Y-63-52740

CYLINDER

2

205-70-71360

BUSHING

3

07145-00070

SEAL,DUST(KIT)

4

20Y-63-23720

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST(KIT)

7

707-27-12621

HEAD,CYLINDER

8

07179-13099

RING,SNAP

9

707-56-85510

SEAL,DUST(KIT)

10

707-52-90610

BUSHING

11

707-51-85030

PACKING,ROD(KIT)

12

07000-15110

O-RING(KIT)

13

707-35-91220

RING,BACK-UP(KIT)

14

707-51-85630

RING,BUFFER(KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-12071

PISTON

18

707-44-12180

RING,PISTON(KIT)

19

707-39-12110

RING,WEAR(KIT)

20

707-44-12911

RING

21

707-71-60860

PLUNGER

22

01310-01216

SCREW

23

707-35-90930

RING,BACK-UP(KIT)

24

07000-15075

O-RING(KIT)

25

707-71-32790

COLLAR

26

707-35-91220

RING,BACK-UP(KIT)

27

07000-15110

O-RING(KIT)

28

20Y-63-52770

TUBE,L.H

28

20Y-63-52870

TUBE,R.H

29

20Y-63-52382

TUBE,L.H

29

20Y-63-52482

TUBE,R.H

30

01435-01055

BOLT

31

01435-01040

BOLT

32

07000-13030

O-RING(KIT)

33

20Y-63-52400

BAND

34

20Y-63-52390

BRACKET,L.H

34

20Y-63-52490

BRACKET,R.H

35

707-88-96530

BAND

36

01010-51035

BOLT

37

01643-51032

WASHER

38

07283-22738

CLIP

39

01599-01011

NUT

40

01643-31032

WASHER
