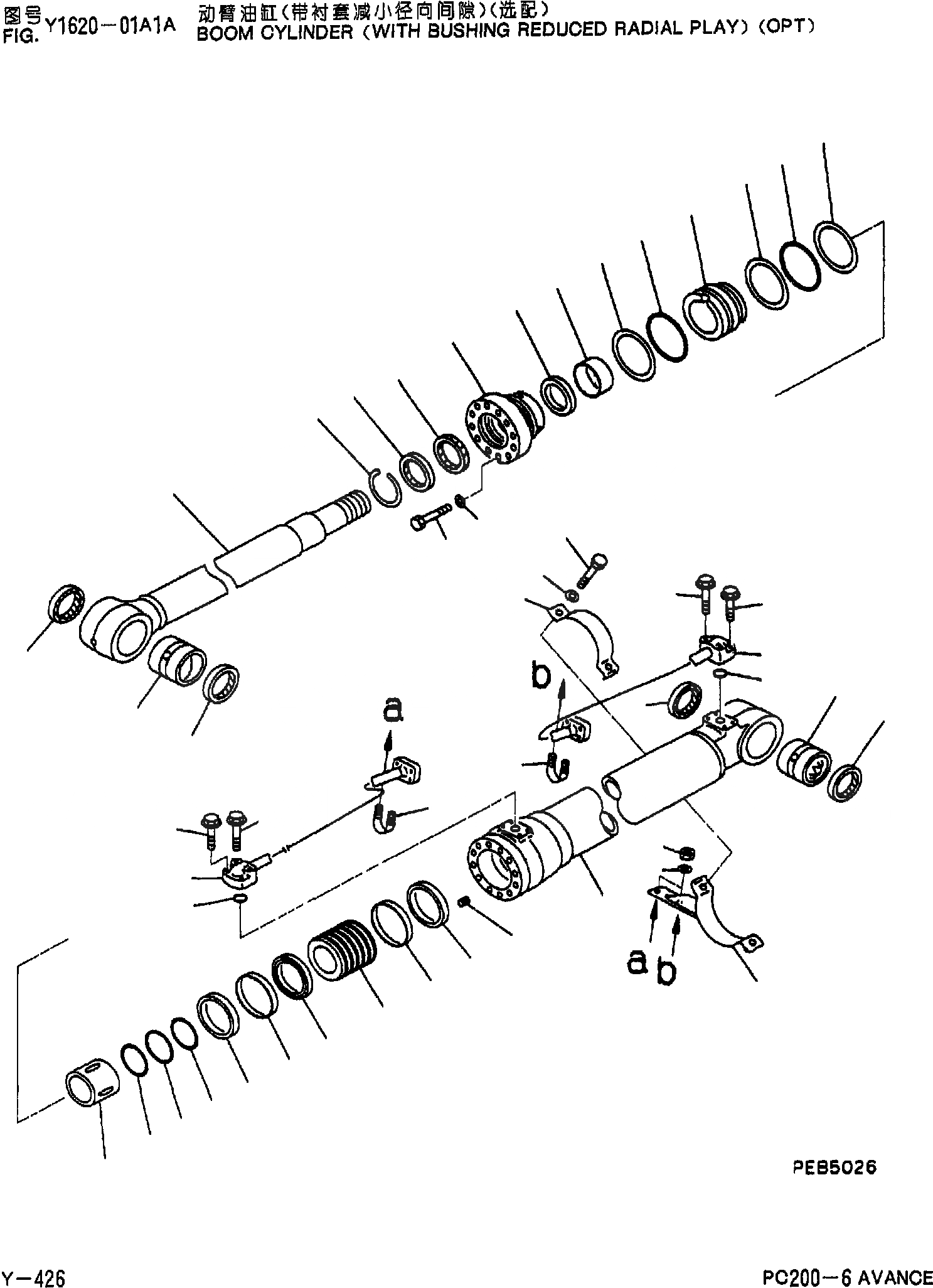

Запчасти Komatsu PC200-6 ЦИЛИНДР СТРЕЛЫ(С ВТУЛКА REDUCED RADIAL PLAY)(ОПЦИОНН.) Y [SERVICE KOT]

G1

205-63-X7240

BOOMCYLINDER GROUP,L.H

G2

205-63-X7250

BOOMCYLINDER GROUP,R.H

|$3

205-63-07240

CYLNDERASS'Y

1

205-63-51141

CYLINDER

2

20Y-70-21391

BUSHING

3

07145-00070

SEAL,DUST(KIT)

4

205-63-51121

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST(KIT)

7

707-27-12921

HEAD,CYLINDER

8

07179-13099

RING,SNAP

9

707-56-85510

SEAL,DUST(KIT)

10

707-52-90610

BUSHING

11

707-51-85030

PACKING,ROD(KIT)

12

07000-15110

O-RING(KIT)

13

707-35-91220

RING,BACK-UP(KIT)

14

707-51-85630

RING,BUFFER(KIT)

15

01010-81670

BOLT

16

01643-51645

WASHER

17

707-36-12071

PISTON

18

707-44-12180

RING,PISTON(KIT)

19

707-39-12110

RING,WEAR(KIT)

20

707-44-12911

RING

21

707-71-60860

PLUNGER

22

07000-15075

O-RING(KIT)

23

707-35-90930

RING,BACK-UP(KIT)

24

01310-01216

SCREW

25

707-71-32070

COLLAR

26

707-35-91220

RING,BACK-UP(KIT)

27

07000-15110

O-RING(KIT)

28

205-63-51171

TUBE,L.H

28

205-63-51271

TUBE,R.H

29

20Y-62-24580

TUBE,L.H

29

20Y-62-24610

TUBE,R.H

30

01435-01055

BOLT

31

01435-01040

BOLT

32

07000-13030

O-RING(KIT)

33

205-63-53592

BRACKET,L.H

33

205-63-53692

BRACKET,R.H

34

707-88-96530

BAND

35

01010-81035

BOLT

36

01643-51032

WASHER

37

07283-22738

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER
