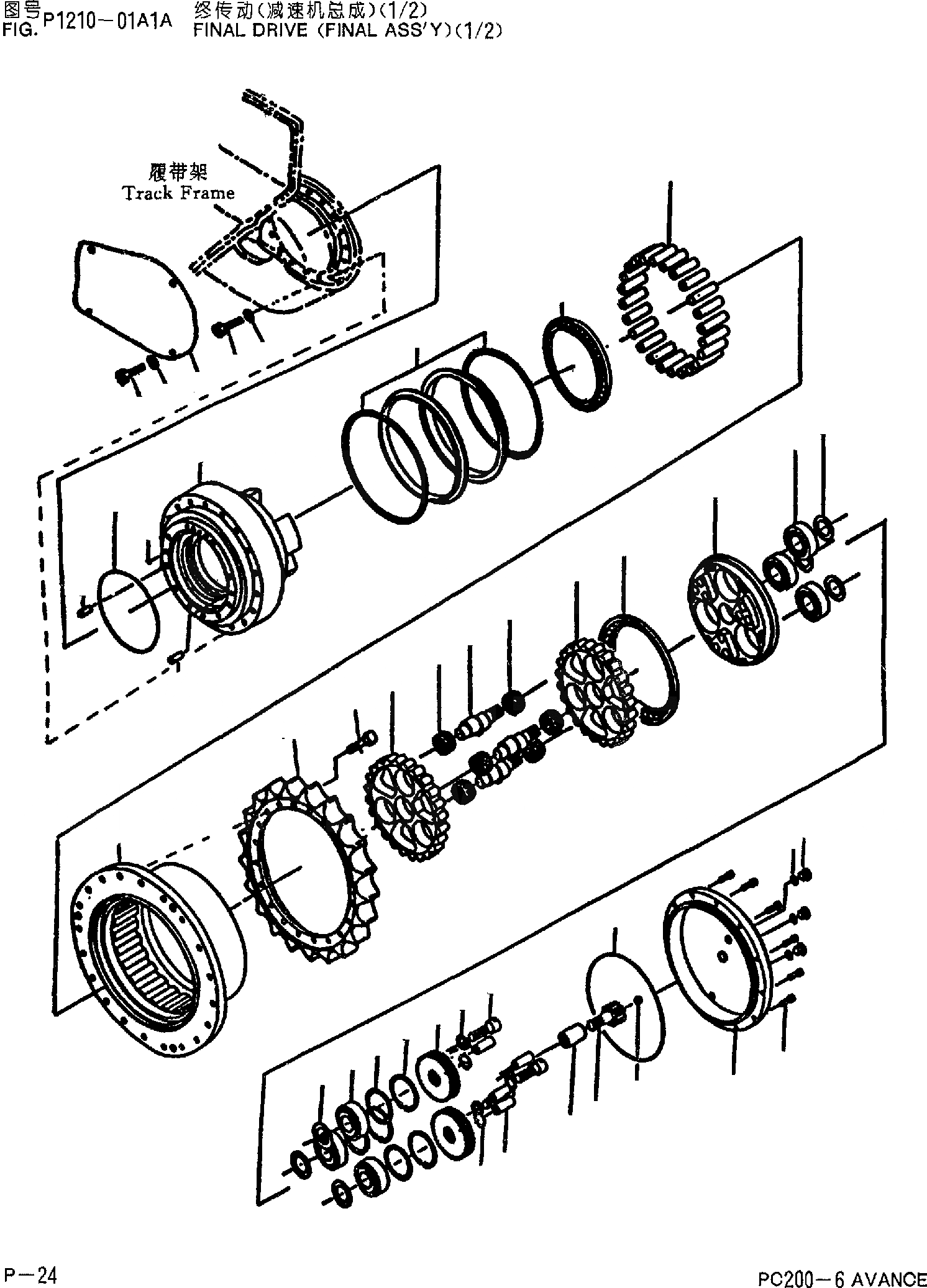

Запчасти Komatsu PC200-6 КОНЕЧНАЯ ПЕРЕДАЧА В СБОРЕ [НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА]

|$1

20Y-27-D2000

FINALDRIVEASS'Y

|$2

TZ684B0000-03

FINALDRIVEASS'Y

1

TZ684B1001-02

HUB

|$4

TZ684B1102-03

SPINDKEKIT

|$5

TZ684B1132-03

SPINDLEASS'

2

TZ684B1002-03

SPINDLE

3

TZ671B1003-03

FLANGE

4

TZ671B1019-00

BOL

5

TZ671B1034-01

PI

6

TZ671B1037-00

WASHE

|$11

TZ671B1104-03

GEARASS'Y

|$12

TZ671B1204-01

GEARKI

7

TZ671B1004-01

GEAR

8

TZ671B1005-01

GEAR

9

TZ671B1009-01

SHAF

10

TZ671B1012-03

SPACE

11

TZ671B1022-00

BEARIN

12

TZ671B1023-01

BEARIN

13

TZ684B1006-02

GEAR

14

TZ684B1007-00

GEARKIT

|$21

TZ684B1007-00

GEA

15

TZ671B1008-03

COVER

16

TZ671B1013-02

PLATE

17

TZ50F1024-00

COUPLING

18

TZ671B1017-00

PIN

19

04065-09530

RING

20

TZ671B1021-00

BEARING

21

04064-04018

RING

22

07000-11008

O-RING

23

07000-05230

O-RING

24

TZP33508335

O-RING

25

170-27-00024

FLOATINGSEALASS'Y

|$33

170-27-00114

SEALRINGASS'

|$34

207-27-61331

FLOATINGSEAT

|$35

170-27-00120

O-RINGASS'

|$36

195-27-12710

O-RING

26

TZ610B-2021-00

PLUG

27

TZJB1176 M12X32-12.9L

BOLT

28

04260-01111

BALL

29

TZ671B2077-01

PIN

30

JISB2401-P18-90

O-RING

31

20Y-27-11582

SPROCKET

32

20Y-27-11561

BOLT

33

01010-61660

BOLT

34

01643-31645

WASHER

35

20Y-60-21190

COVER

36

01010-81230

BOLT

37

01643-31232

WASHER
