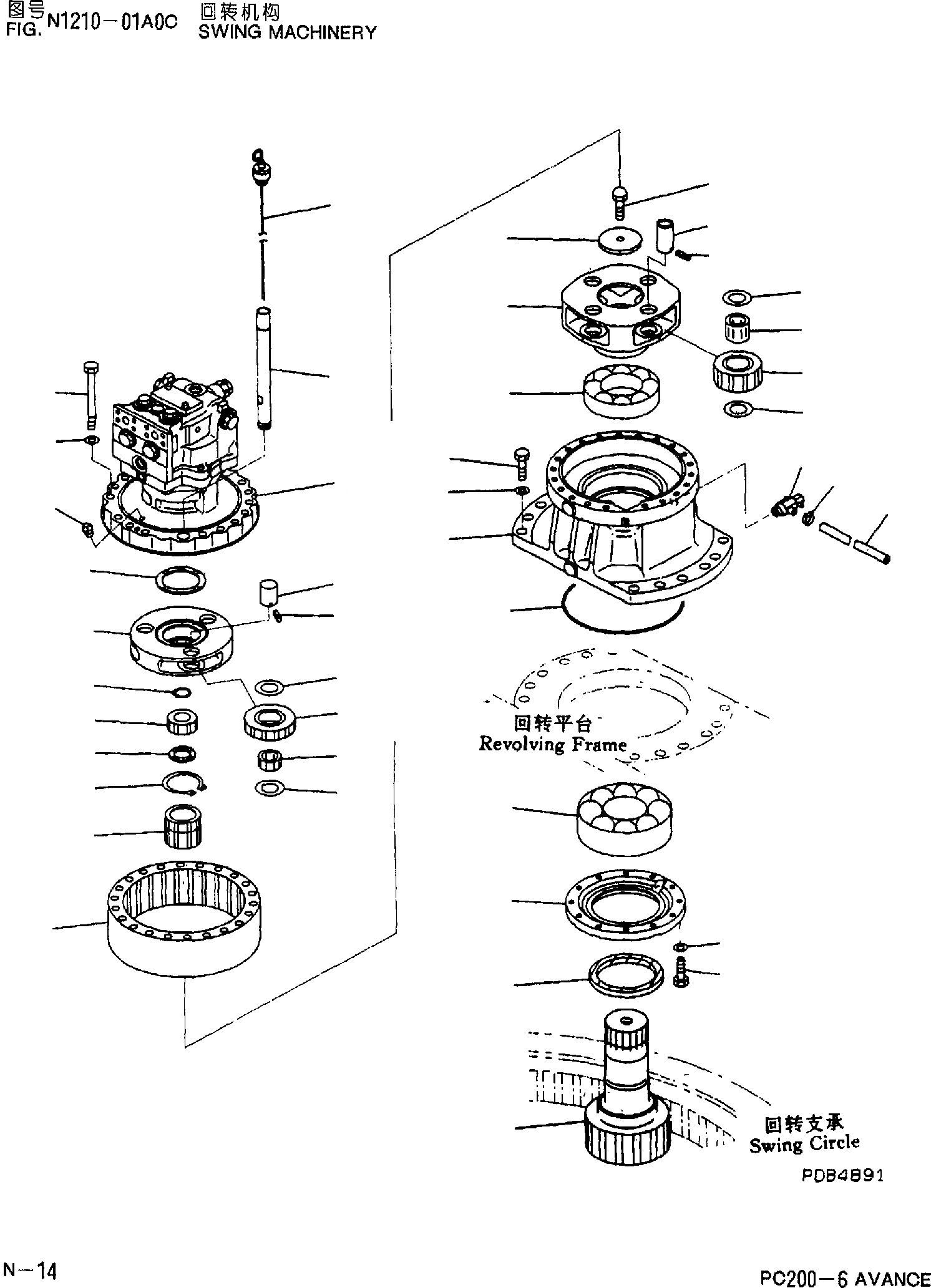

Запчасти Komatsu PC200-6 МЕХАНИЗМ ПОВОРОТА N [ПОВОРОТН. КРУГ И КОМПОНЕНТЫ]

1

706-75-01350

SWINGMOTORASS'Y

2

20Y-26-22270

RING

3

07042-30108

PLUG

4

20Y-26-22210

CASE

5

20Y-26-22330

BEARING

6

20Y-26-22340

BEARING

7

20Y-26-22191

COVER

8

01010-81045

BOLT

9

01643-31032

WASHER

10

20Y-26-22420

SEAL

11

20Y-26-21141

SHAFT,15TEETH

12

20Y-26-22170

CARRIER

13

20Y-26-22141

GEAR,36TEETH

14

20G-26-11240

BEARING

15

20Y-27-21240

WASHER

16

20Y-26-22250

PIN

17

20Y-27-21280

PIN

18

20Y-26-21240

PLATE

19

112-32-11211

BOLT,SHOE

20

20Y-26-22151

GEAR,101TEETH

21

20Y-26-22121

GEAR,27TEETH

22

04064-07525

RING

23

20Y-26-22220

THRUSTWASHER

24

20Y-26-22160

CARRIER

25

20Y-26-22120

GEAR,39TEETH

26

20Y-26-21280

BEARING

27

20Y-27-21240

WASHER

28

20Y-26-22240

PIN

29

20Y-27-21280

PIN

30

20Y-26-22110

GEAR,22TEETH

31

20Y-26-22230

THRUSTWASHER

32

195-03-13241

VALVE

33

205-26-71620

TUBE

34

07281-00197

CLAMP

35

01011-81465

BOLT

36

01643-31445

WASHER

37

20Y-26-21340

GAUGE

38

20Y-26-D1110

FILLER

39

07000-05240

O-RING

40

01010-62060

BOLT

41

01643-32060

WASHER
