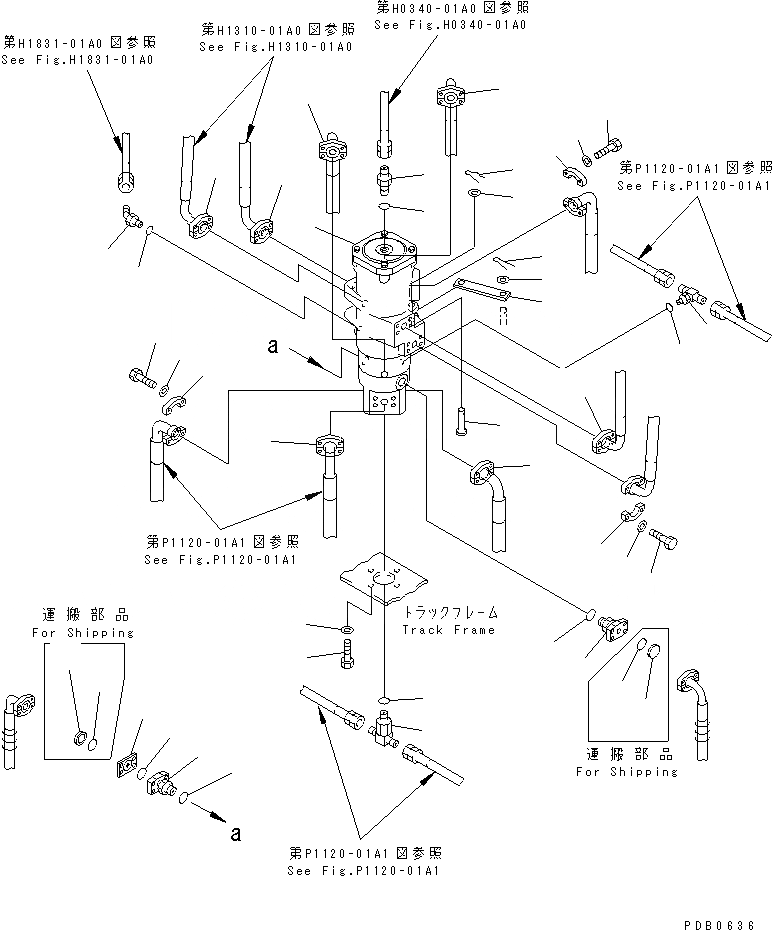

Запчасти Komatsu PC200-6 ПОВОРОТНОЕ СОЕДИНЕНИЕ (СОЕДИНИТЕЛЬН. ЧАСТИ) (CS HANDLLER) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

1

703-10-00120

SWIVEL JOINT ASS'Y

|1

703-10-00110

SWIVEL JOINT ASS'Y

|1

703-10-33311

SWIVEL JOINT ASS'Y,(SEE FIG.Y1627-01A1)

|1

703-10-43220

SWIVEL JOINT ASS'Y

|1

703-10-33311

SWIVEL JOINT ASS'Y,(SEE FIG.Y1627-01A1)

2

07230-20522

UNION

3

07002-02434

O-RING

4

07236-10210

ELBOW

|4

22X-61-18550

ELBOW

5

07002-01423

O-RING

6

208-26-11611

TEE

|6

20Y-62-11780

TEE

7

07002-01423

O-RING

8

20Y-62-21870

TEE

9

07002-02434

O-RING

10

07371-30640

FLANGE

11

07372-21035

BOLT

12

07372-21040

BOLT

13

01643-51032

WASHER

14

203-62-64380

FLANGE

|14

21K-62-34310

FLANGE

15

07002-12434

O-RING

16

20Y-62-14391

SPACER

17

07000-13030

O-RING

18

07378-10600

HEAD

19

07000-13025

O-RING

20

209-62-14430

PLATE

21

209-62-52560

PIN

22

01641-21626

WASHER

23

04052-11664

PIN

24

04050-14025

PIN

25

01010-81235

BOLT

|25

01010-51235

BOLT

26

01643-31232

WASHER
